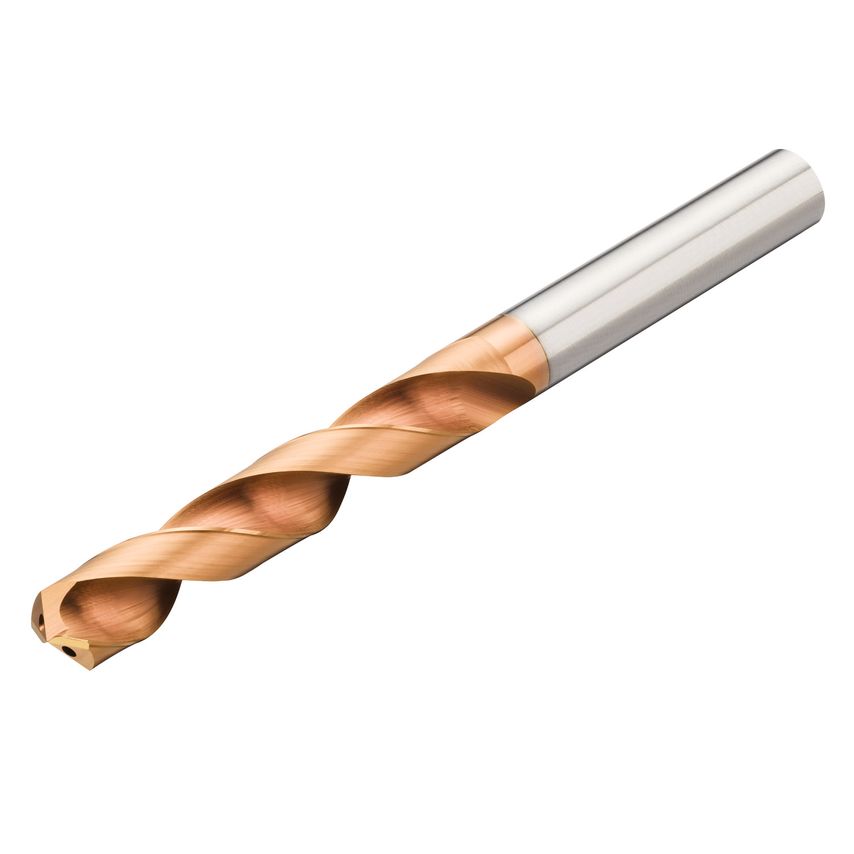

CoroDrill Delta-C solid carbide drill
| Overall Length | 89mm |
| Point Angle | 140\u00b0 |
| Standards Met | DIN 6537 K |
| CoroPak | 2.2 |
| Unit Measured | Metric |
| Coating Process Type | PVD |
| Coating Type | TiAlN |
| Connection Diameter | 10mm |
| Material Grade | 1220 |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Functional Length | 87.3mm |
| MFR Part No. | 11492530 |
| Drill Diameter | 9.8mm |
| Usable Length | 31.1mm |
| Usable Length Diameter Ratio | 3.17 |
| Rotational Speed Maximum | 7471 1/min |
| Achievable Hole Tolerance | H9 |
