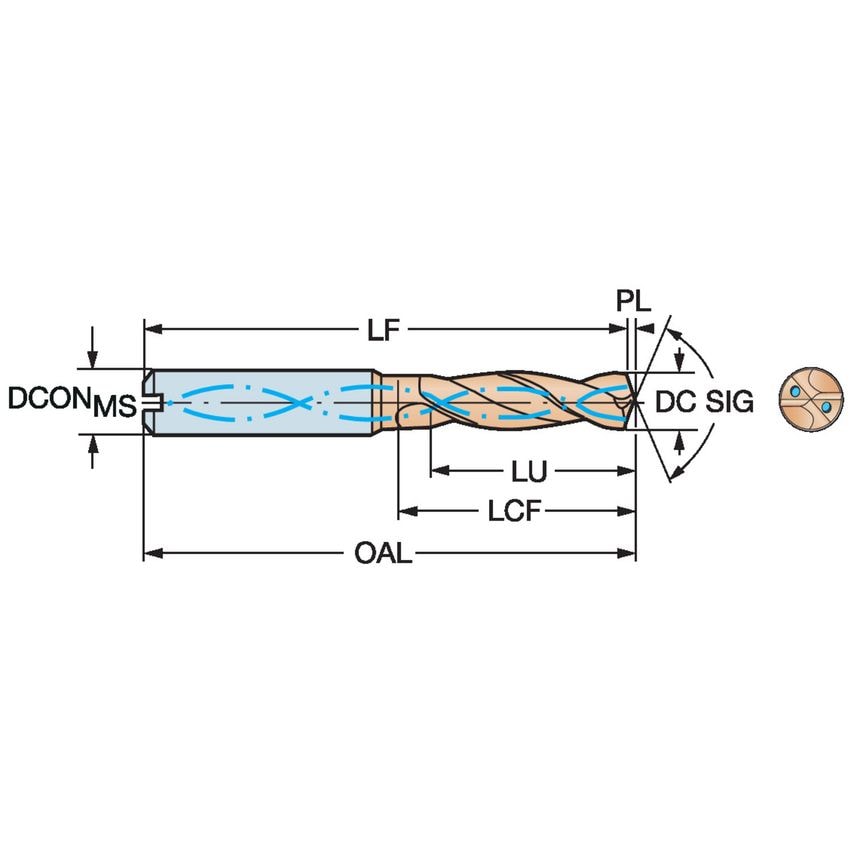

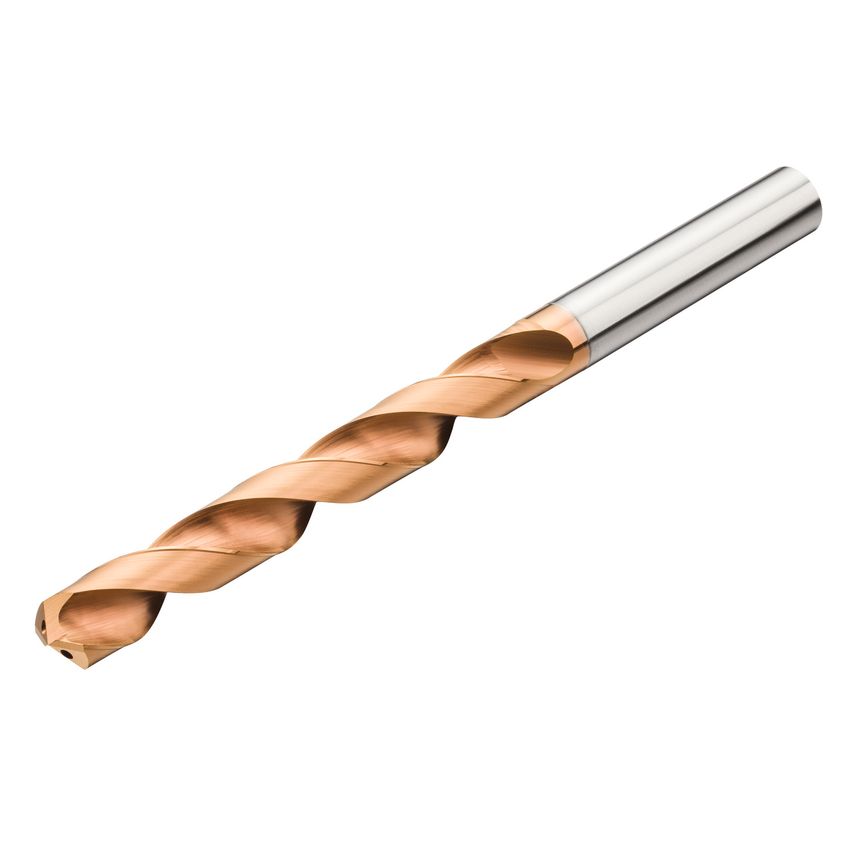

CoroDrill Delta-C solid carbide drill
| Point Angle | 140\u00b0 |
| MFR Part No. | 11770393 |
| Unit Measured | Metric |
| Coating Process Type | PVD |
| Achievable Hole Tolerance | H9 |
| Connection Diameter | 10mm |
| Usable Length | 67.4mm |
| Standards Met | COROMANT |
| Material Grade | 1220 |
| Usable Length Diameter Ratio | 7.17 |
| CoroPak | 4.1 |
| Overall Length | 133mm |
| Coating Type | TiAlN |
| Weight | 0.11kg |
| Rotational Speed Maximum | 7788 1/min |
| Drill Diameter | 9.4mm |
| Functional Length | 131.4mm |
| ISO Cutting Tool Material | Coated WC or Cermet |
