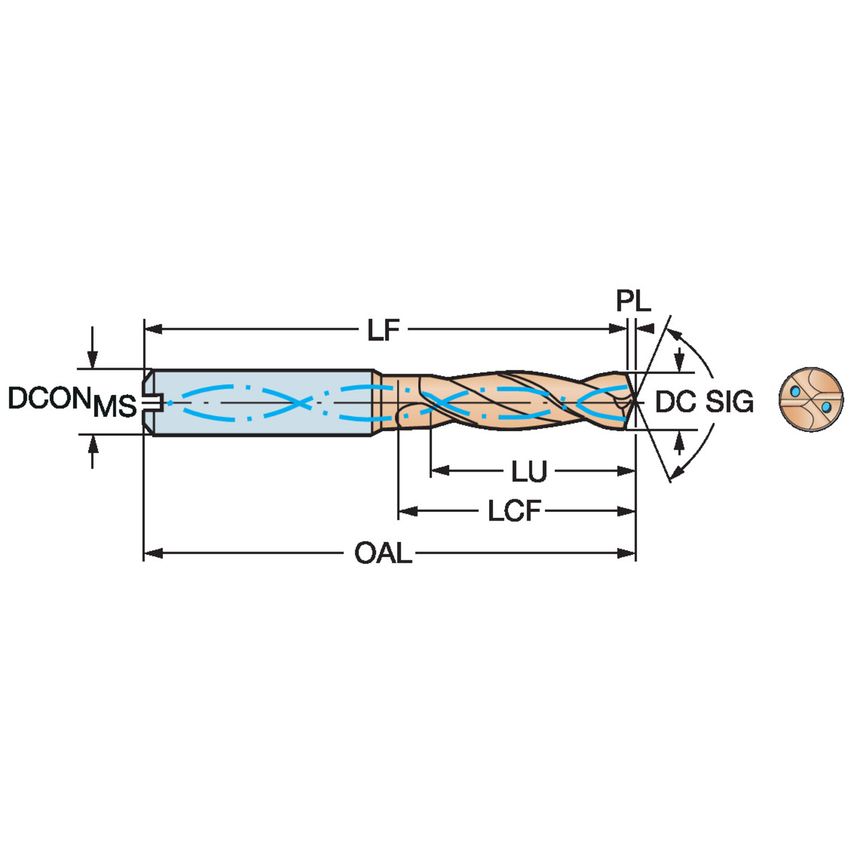

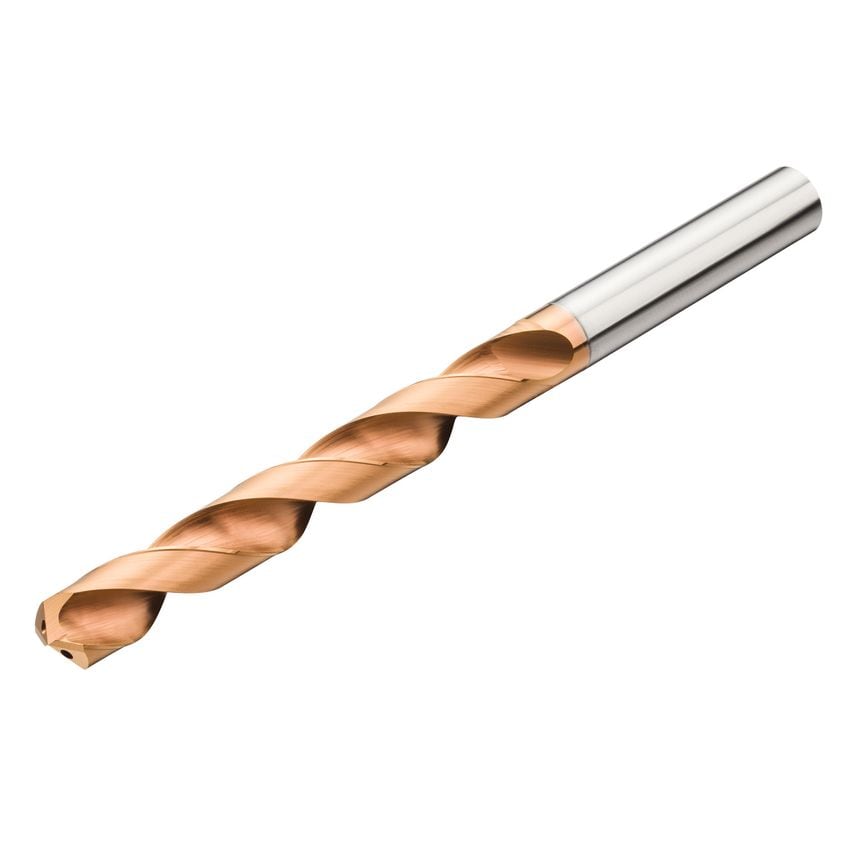

CoroDrill Delta-C solid carbide drill
| Functional Length | 103.6mm |
| Overall Length | 105mm |
| CoroPak | 4.1 |
| Unit Measured | Metric |
| Material Grade | 1220 | 1220 |
| MFR Part No. | 11770194 |
| Coating Type | TiAlN |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Achievable Hole Tolerance | H9 |
| Rotational Speed Maximum | 9267 1/min |
| Usable Length | 56.7mm |
| Connection Diameter | 8mm |
| Usable Length Diameter Ratio | 7.18 |
| Coating Process Type | PVD |
| Point Angle | 140\u00b0 |
| Standards Met | COROMANT |
| Drill Diameter | 7.9mm | 7.9mm |
