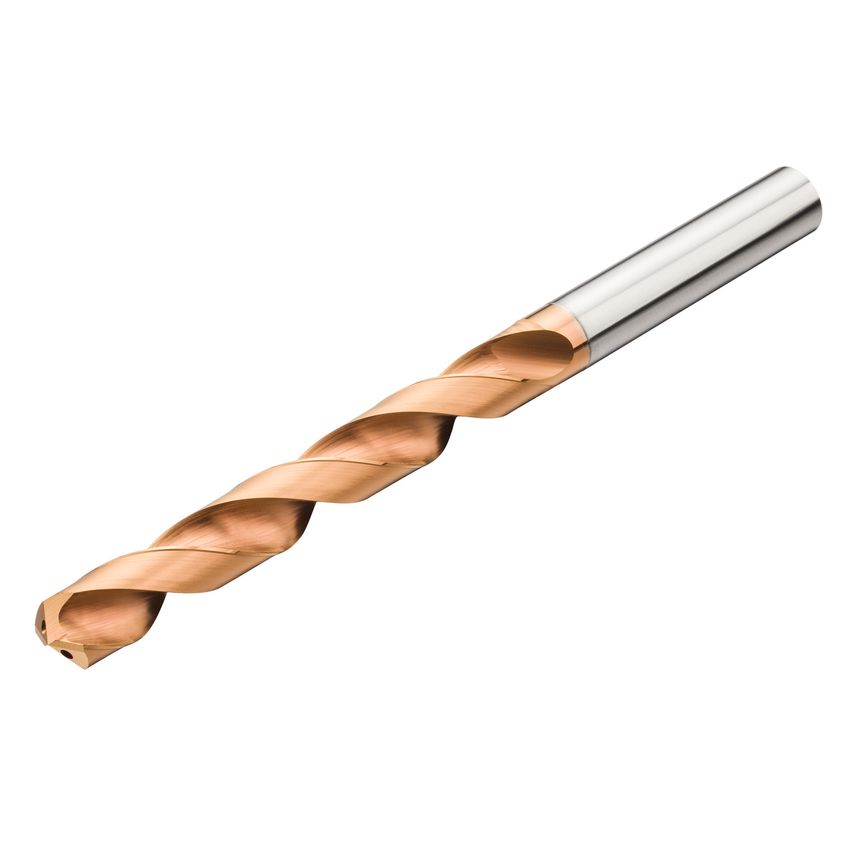

CoroDrill Delta-C solid carbide drill

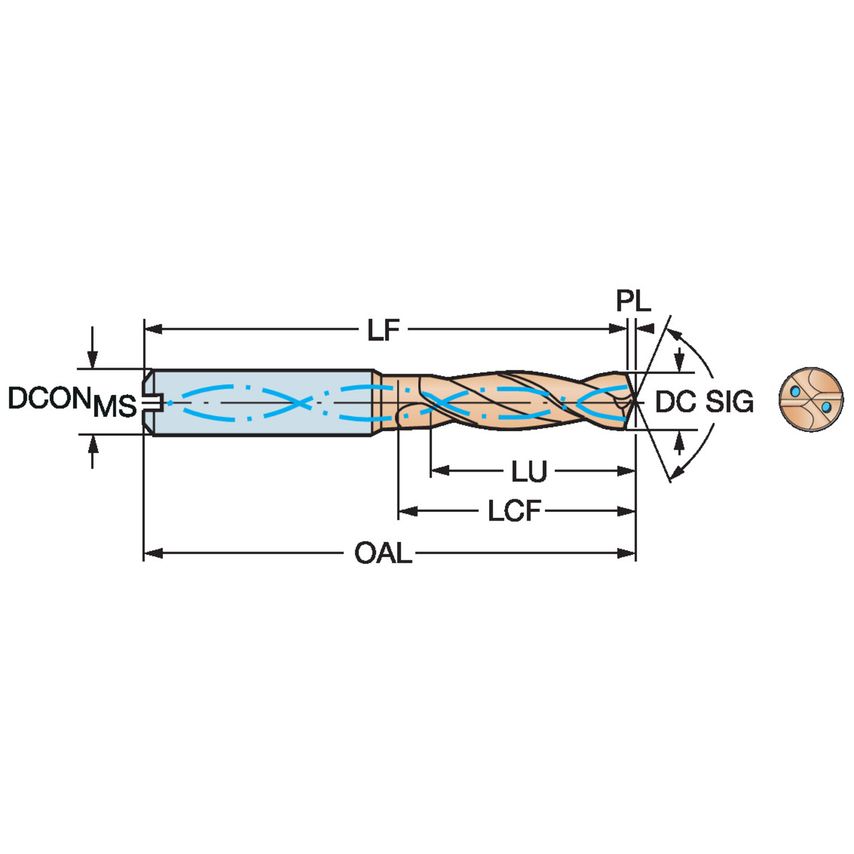

| Connection Diameter | 8mm |
| Unit Measured | Metric |
| Rotational Speed Maximum | 9386 1/min |
| Material Grade | 1220 | 1220 |
| Point Angle | 140\u00b0 |
| Functional Length | 103.7mm |
| Achievable Hole Tolerance | H9 |
| Drill Diameter | 7.8mm | 7.8mm |
| Coating Type | TiAlN |
| CoroPak | 4.1 |
| Standards Met | COROMANT |
| MFR Part No. | 11770183 |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Coating Process Type | PVD |
| Overall Length | 105mm |
| Usable Length Diameter Ratio | 7.17 |
| Usable Length | 55.9mm |
