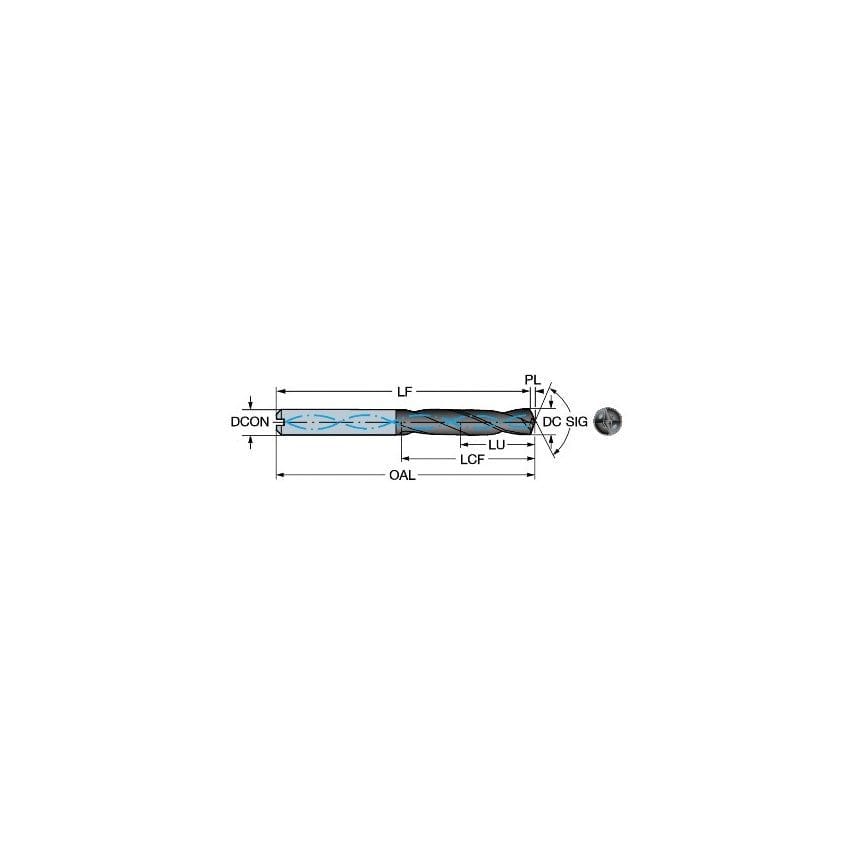

Product Range: CoroDrill 861Tool Type: Solid carbide drillsCoroDrill 861 provides the high stability essential for drilling deep holes, with high speed and efficiency, up to 30xD.- High stability when drilling deep holes- Double offset margin patented geometry increases stability in drilling operations- Internal coolant holes deliver coolant directly to the tip of the drill, even at deep drilling depths
| Functional Length | 78.2mm |
| Unit Measured | Metric |
| Drill Diameter | 6.8mm |
| Point Angle | 150\u00b0 |
| Rotational Speed Maximum | 14043 1/min |
| Material Grade | GC34 |
| Overall Length | 79mm |
| Usable Length Diameter Ratio | 3.12 |
| Coating Type | TiAlN |
| Usable Length | 21.2mm |
| Connection Diameter | 8mm |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Achievable Hole Tolerance | H9 |
| MFR Part No. | 26151047 |
| CoroPak | 12.1 |
| Standards Met | DIN 6537 K |
| Coating Process Type | PVD |
