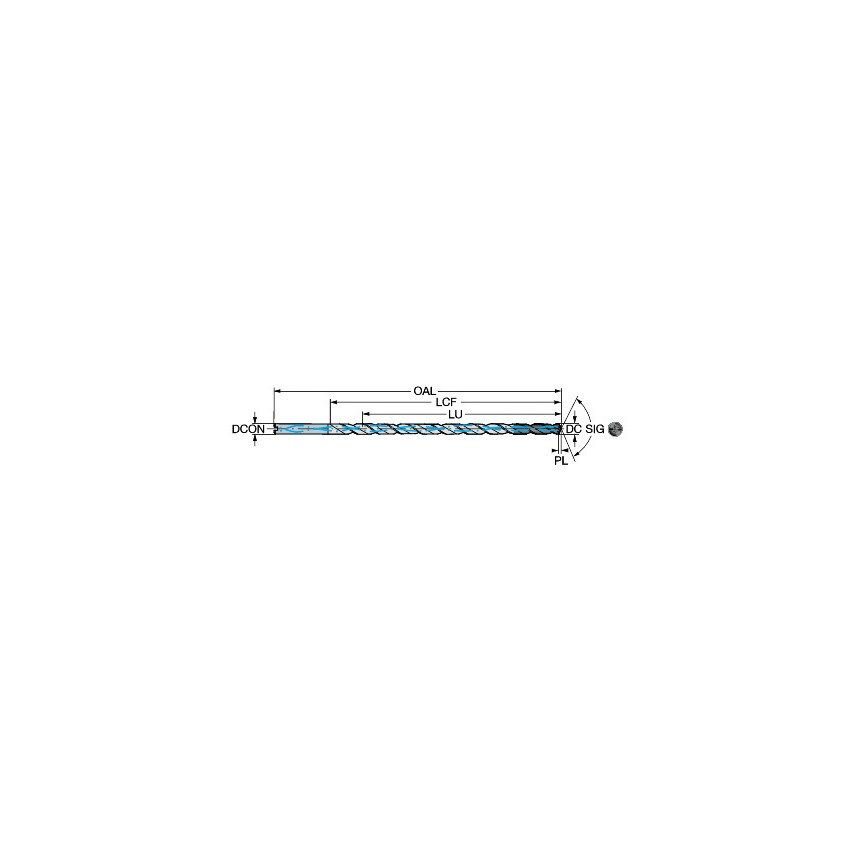

Product Range: CoroDrill 861Tool Type: Solid carbide drillsCoroDrill 861 provides the high stability essential for drilling deep holes, with high speed and efficiency, up to 30xD.- High stability when drilling deep holes- Double offset margin patented geometry increases stability in drilling operations- Internal coolant holes deliver coolant directly to the tip of the drill, even at deep drilling depths
| Standards Met | COROMANT |
| Drill Diameter | 3.57mm |
| Achievable Hole Tolerance | H9 |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Coating Type | TiAlN |
| Connection Diameter | 6mm |
| Usable Length Diameter Ratio | 20.17 |
| Rotational Speed Maximum | 26021 1/min |
| CoroPak | 12.1 |
| Overall Length | 124mm |
| MFR Part No. | 26150952 |
| Unit Measured | Metric |
| Usable Length | 72mm |
| Material Grade | GC34 |
| Coating Process Type | PVD |
| Point Angle | 140\u00b0 |
| Functional Length | 123.6mm |
