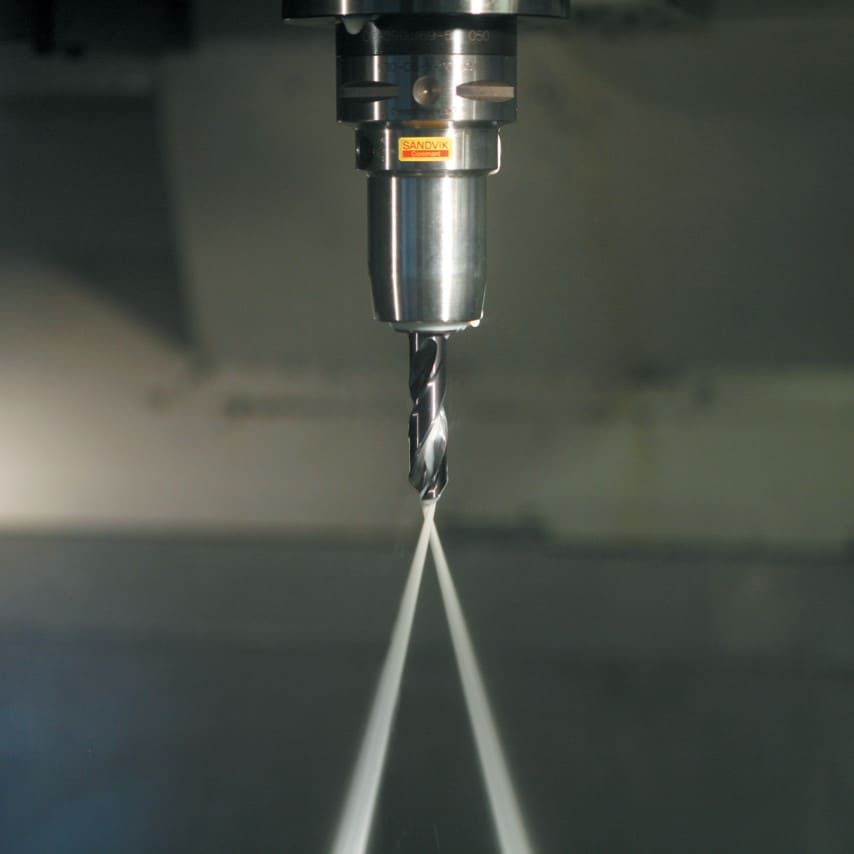

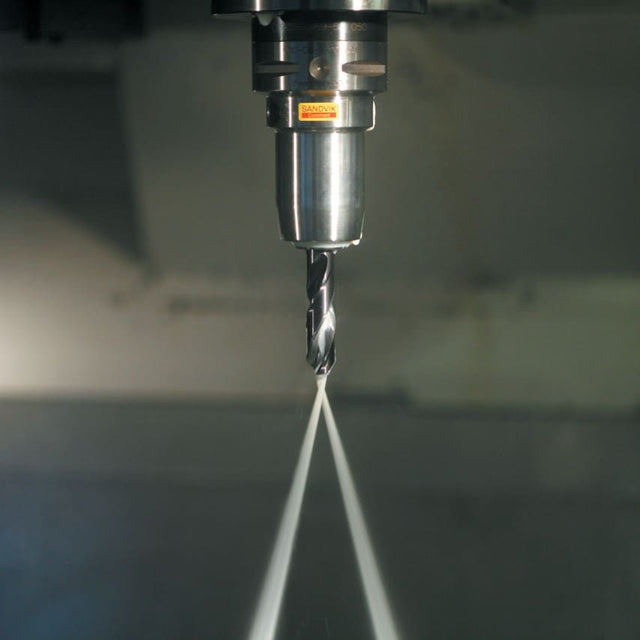

Product Range: CoroDrill 460Tool Type: Solid carbide drillsVersatile high-performance solid carbide drill that can be used across a wide range of materials. With one drill for all materials, stock holding can be reduced and greater machine flexibility is offered leading to reduced set-up time.- Versatile across a wide range of materials- High productivity and consistent tool life- Exceptional value without compromising on quality
| Usable Length Diameter Ratio | 8.16 |
| Achievable Hole Tolerance | H9 |
| Unit Measured | Metric |
| Coating Type | TiAlN |
| Connection Diameter | 6mm |
| Functional Length | 89.3mm |
| CoroPak | 13.2 |
| Grade | GC34 |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Point Angle | 140\u00b0 |
| Rotational Speed Maximum | 22918 1/min |
| Coating Process Type | PVD |
| Standards Met | COROMANT |
| Overall Length | 90mm |
| Usable Length | 36.7mm |
| Cutting Diameter | 4.5mm |
| MFR Part No. | 26422529 |
