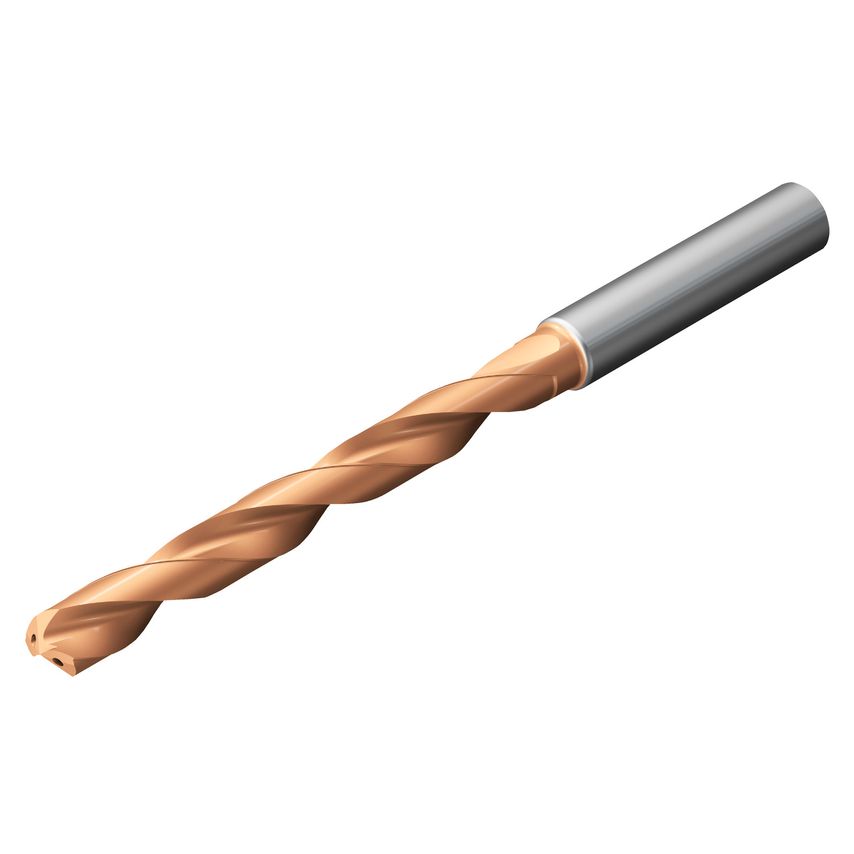

Product Range: CoroDrill 860Tool Type: Solid carbide drillsCoroDrill 860 is a solid carbide drill designed for fast and problem-free drilling, maximizing productivity through high metal cutting efficiency. With excellent chip evacuation in long and short chipping materials, CoroDrill 860 provides green light machining at high penetration rates.- Optimized geometry for fast and problem-free drilling- Optimized for ISO-P, ISO-M, ISO-N and multi-material 860-GM- Optimized flute geometry for efficient chip evacuation- High productivity and consistent tool life- High process security and repeatability
| ISO Cutting Tool Material | Coated WC or Cermet |
| Usable Length Diameter Ratio | 8.01 |
| Coating Process Type | PVD |
| Connection Diameter | 12mm |
| Achievable Hole Tolerance | H8 |
| MFR Part No. | 6423053 |
| Unit Measured | Imperial |
| Rotational Speed Maximum | 2750 1/min |
| Point Angle | 140\u00b0 |
| CoroPak | 14.1 |
| Cutting Diameter | 11.11mm |
| Coating Type | TiAlN |
| Standards Met | COROMANT |
| Usable Length | 89mm |
| Functional Length | 161.2mm |
| Grade | 2214 |
| Weight | 0.16kg |
| Overall Length | 163mm |
