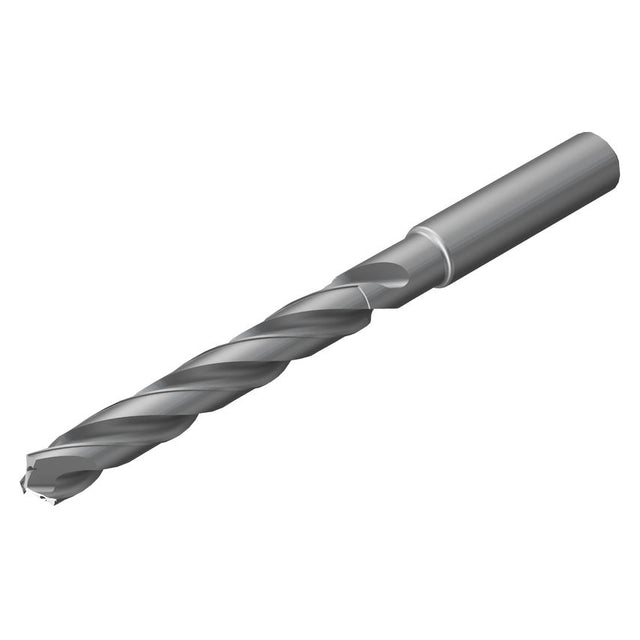

Product Range: CoroDrill 430The spiral flute CoroDrill 430 is optimized to provide extreme efficiency, reliability and durability during hole-making in aluminium and cast iron components for the automotive industry.- 3 spiral flutes for durable hole-making in aluminium and cast iron- Easy to recondition- Can be used with cored holes
| Cutting Diameter | 16mm |
| Weight | 0.1kg |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Usable Length Diameter Ratio | 6.86 |
| CoroPak | 18.2 |
| Usable Length | 70mm |
| MFR Part No. | 7594063 |
| Functional Length | 137.89mm |
| Grade | N1BU |
| Connection Diameter | 12mm |
| Coating Process Type | Uncoated |
| Point Angle | 135\u00b0 |
| Rotational Speed Maximum | 50000 1/min |
| Coating Type | Uncoated |
| Unit Measured | Metric |
| Achievable Hole Tolerance | H9 |
| Overall Length | 140mm |
| Standards Met | COROMANT |
