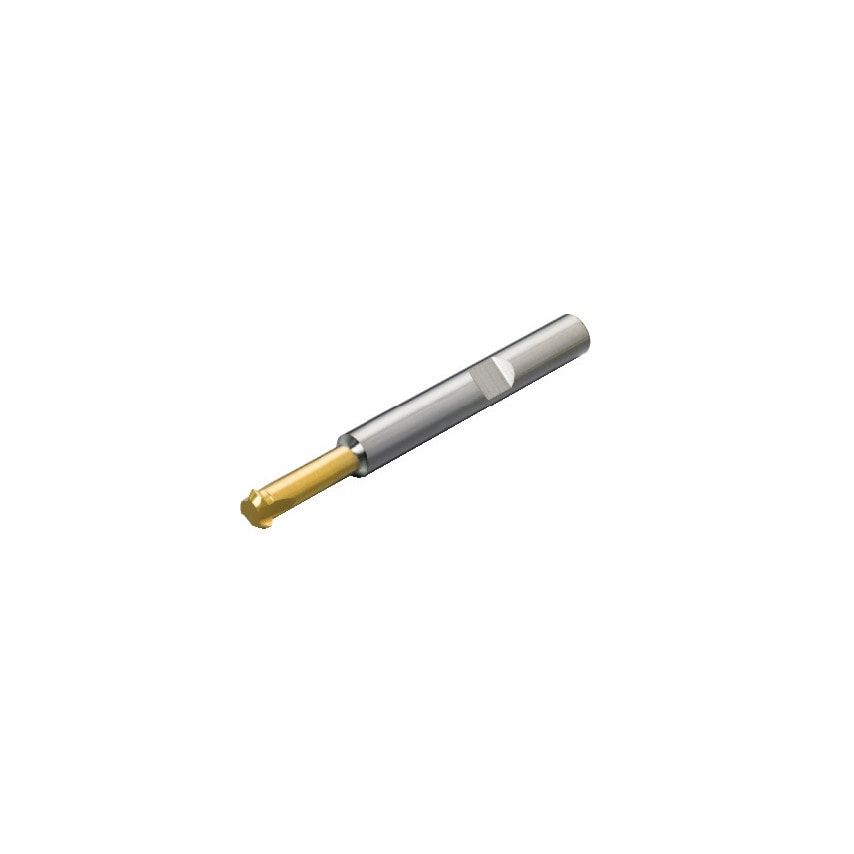

Product Range: CoroMill 326Tool Type: Thread millingVersatile and cost efficient, this miniature milling cutter benefits from three cutting edges for internal threading and chamfering. Use it in small holes, down to 6 mm (0.236 inch) as a complement to CoroMill 327, CoroMill 328 and CoroMill Plura.Features & Benefits- Internal threading and chamfering in small holes- Very high precision and low cutting forces- One grade for all materialsApplication- Internal thread milling- Chamfer milling- Hole diameters from 6 mm (0.236 inch)
| Tool Cutting Edge Angle | 45\u00b0 |
| CoroPak | 11.1 |
| Usable Length | 35mm |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Body Diameter | 0.2in |
| Basic Standard Group | Coromant |
| MFR Part No. | 26010081 |
| Unit Measured | Metric |
| Cutting Diameter | 5.5mm |
| Coating Process Type | PVD |
| Maximum Cutting Diameter | 7.8mm |
| Coolant Entry Style | Without Coolant |
| Through Hole Function Property | Yes |
| Rotational Speed Maximum | 80000 1/min |
| Grade | 1025 |
| Functional Length | 78mm |
| Connection Diameter | 88.34mm |
| Coating Type | TiAlN+TiN |
