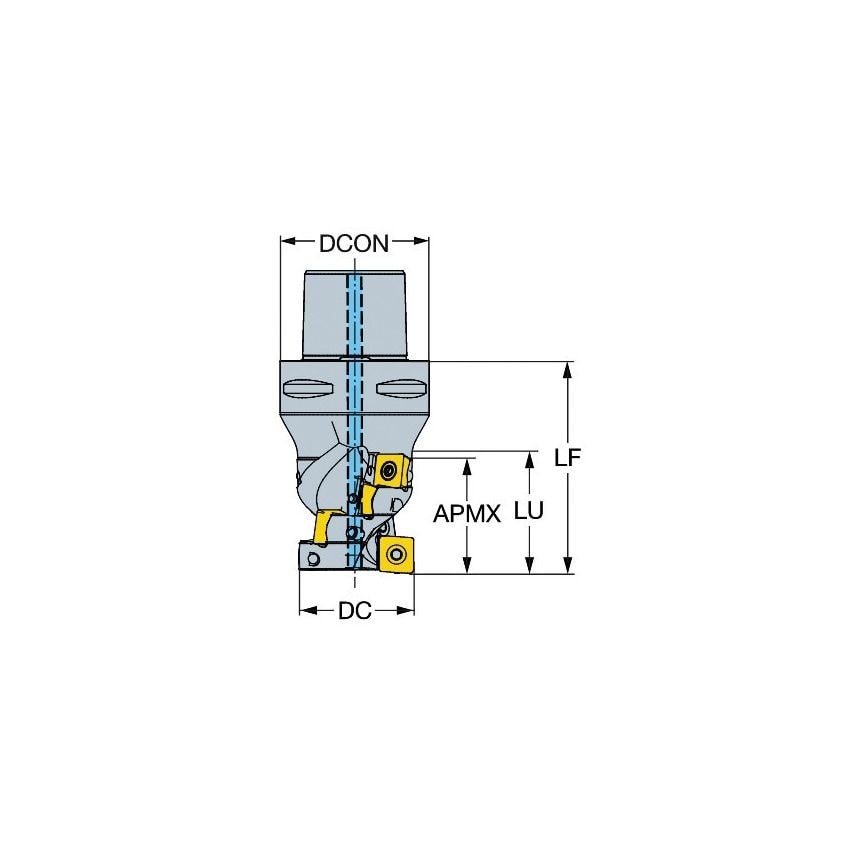

Product Range: CoroMill 690The cutting edge for titanium milling.CoroMill 690 is developed specifically for high-productivity 2D profile milling of titanium components. Inserts are securely fastened by iLock technology. By equipping every insert pocket with threaded coolant holes with nozzles for high pressure coolant delivery, you can apply maximum coolant where required.Features & Benefits-- High-productivity milling of titanium and HRSA-material- 4 cutting edge insert- I-Lock interface for security- Internal coolant
| Material | Steel |
| Unit Measured | Metric |
| Tool Cutting Edge Angle | 90\u00b0 |
| Connection Diameter | 0.79mm |
| Cutting Diameter | 106mm |
| CoroPak | 11.5 |
| Functional Diameter | 44mm |
| Maximum Ramping Angle | 0\u00b0 |
| Body Material | Steel |
| Maximum Depth of Cut | 46mm |
| Standards Met | ISO26623-1 |
| Maximum Cutting Depth | 46mm |
| Functional Length | 83mm |
| Center Cutting Capability | 19.05 |
| MFR Part No. | 12425033 |
| Rotational Speed Maximum | 5000 1/min |
| Hand Preference | Right |
| Usable Length | 49mm |
| Through Hole Function Property | Yes |
| Weight | 1.49kg |
