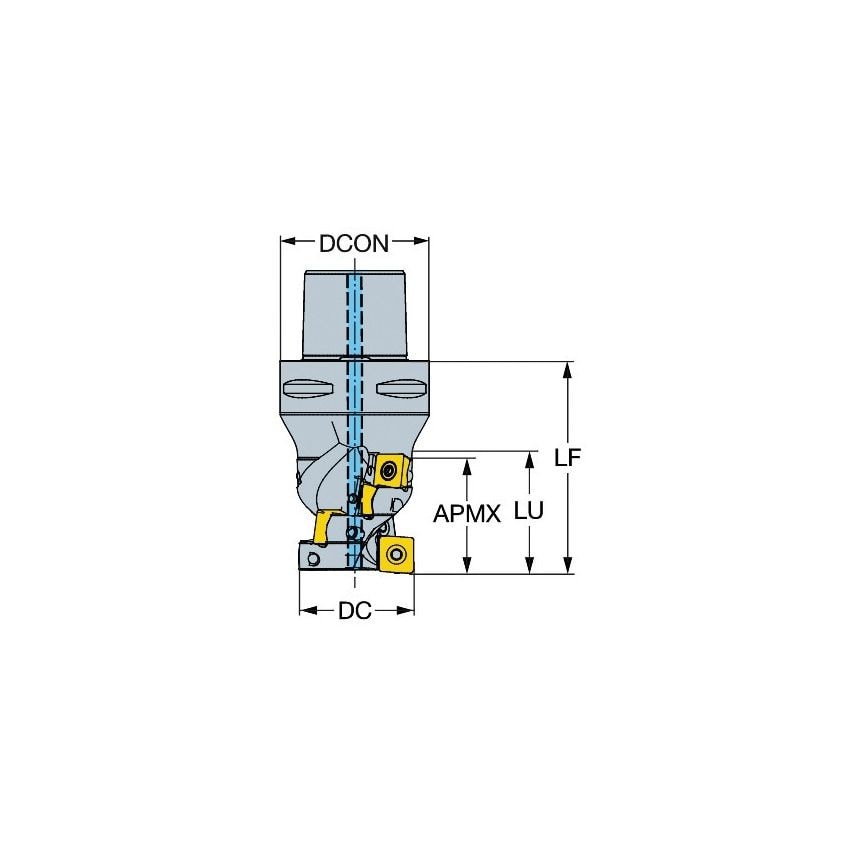

Product Range: CoroMill 690The cutting edge for titanium milling.CoroMill 690 is developed specifically for high-productivity 2D profile milling of titanium components. Inserts are securely fastened by iLock technology. By equipping every insert pocket with threaded coolant holes with nozzles for high pressure coolant delivery, you can apply maximum coolant where required.Features & Benefits-- High-productivity milling of titanium and HRSA-material- 4 cutting edge insert- I-Lock interface for security- Internal coolant
| Through Hole Function Property | Yes |
| Maximum Depth of Cut | 61mm |
| Functional Length | 103mm |
| Material | Steel |
| Weight | 2.13kg |
| CoroPak | 4 |
| MFR Part No. | 12359233 |
| Standards Met | ISO26623-1 |
| Hand Preference | Right |
| Usable Length | 79mm |
| Center Cutting Capability | 19.05 |
| Maximum Cutting Depth | 61mm |
| Cutting Diameter | 125mm |
| Functional Diameter | 44mm |
| Unit Measured | Metric |
| Body Material | Steel |
| Maximum Ramping Angle | 0\u00b0 |
| Tool Cutting Edge Angle | 90\u00b0 |
| Rotational Speed Maximum | 5000 1/min |
| Connection Diameter | 0.79mm |
