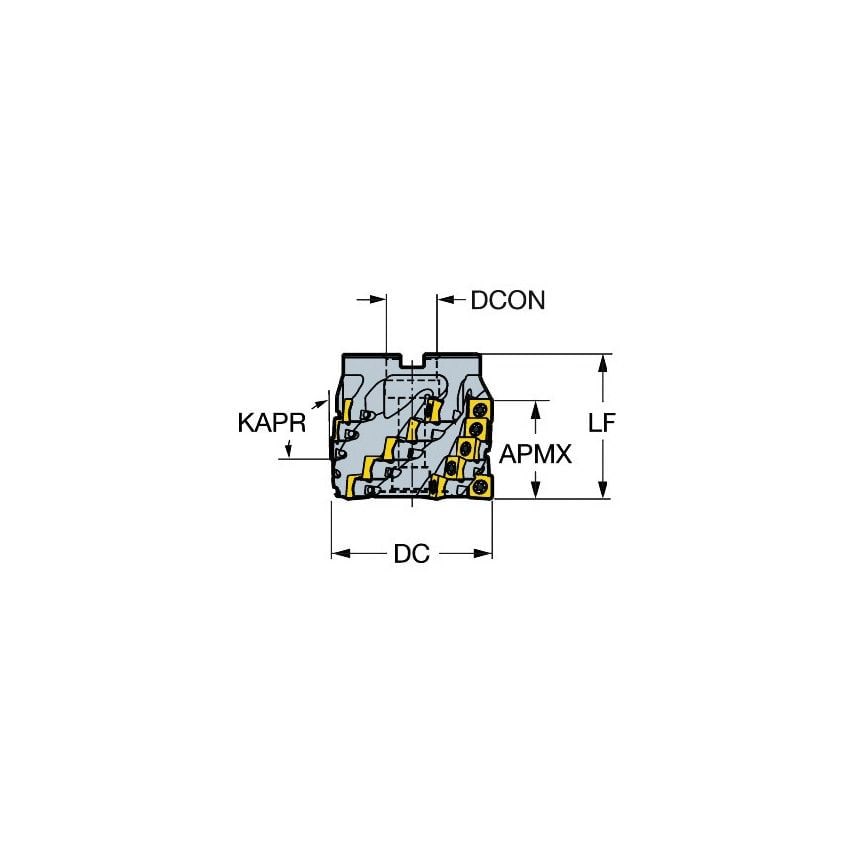

Product Range: CoroMill 690The cutting edge for titanium milling.CoroMill 690 is developed specifically for high-productivity 2D profile milling of titanium components. Inserts are securely fastened by iLock technology. By equipping every insert pocket with threaded coolant holes with nozzles for high pressure coolant delivery, you can apply maximum coolant where required.Features & Benefits-- High-productivity milling of titanium and HRSA-material- 4 cutting edge insert- I-Lock interface for security- Internal coolant
| Maximum Depth of Cut | 46mm |
| Coolant Entry Style | Without Coolant |
| Maximum Cutting Depth | 46mm |
| Unit Measured | Metric |
| Material | Steel |
| Cutting Diameter | 126mm |
| MFR Part No. | 12425092 |
| Maximum Ramping Angle | 0\u00b0 |
| Weight | 1.48kg |
| Functional Length | 80mm |
| Connection Diameter | 6mm |
| CoroPak | 11.5 |
| Rotational Speed Maximum | 5000 1/min |
| Tool Cutting Edge Angle | 90\u00b0 |
| Standards Met | ISO6462 |
| Hand Preference | Right |
| Body Material | Steel |
| Through Hole Function Property | Yes |
| Center Cutting Capability | 19.05 |
