£66.00
Loading...

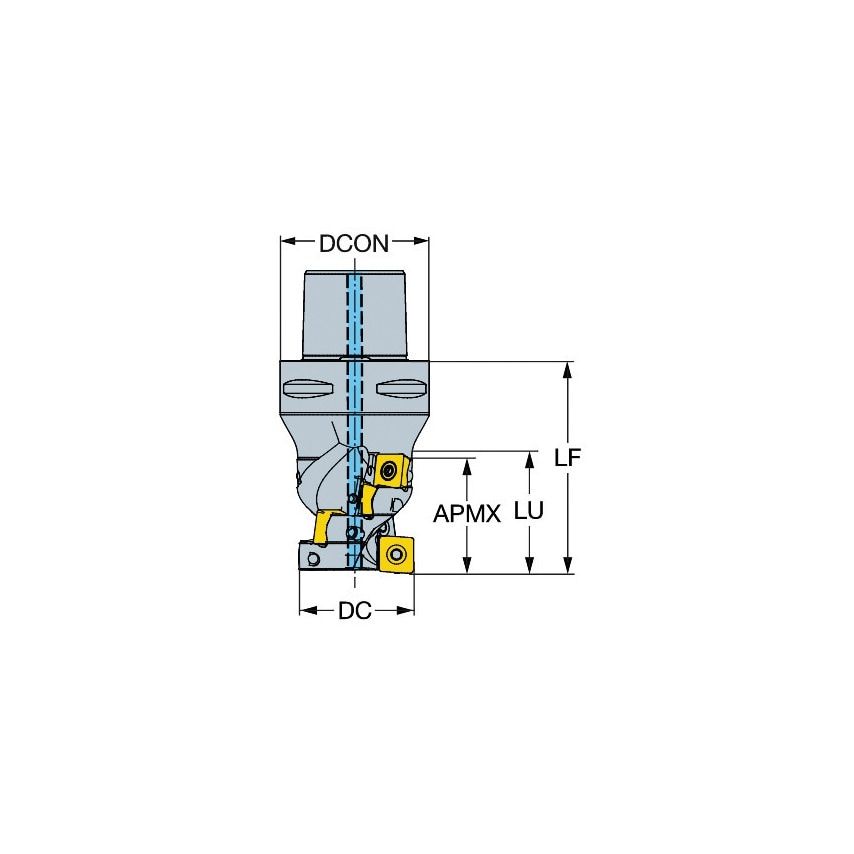

Product Range: CoroMill 690The cutting edge for titanium milling.CoroMill 690 is developed specifically for high-productivity 2D profile milling of titanium components. Inserts are securely fastened by iLock technology. By equipping every insert pocket with threaded coolant holes with nozzles for high pressure coolant delivery, you can apply maximum coolant where required.Features & Benefits-- High-productivity milling of titanium and HRSA-material- 4 cutting edge insert- I-Lock interface for security- Internal coolant
| Standards Met | ISO26623-1 |
| Through Hole Function Property | Yes |
| Body Material | Steel |
| Center Cutting Capability | 19.05 |
| Cutting Diameter | 34mm |
| Usable Length | 110mm |
| Unit Measured | Metric |
| Hand Preference | Right |
| Maximum Ramping Angle | 0\u00b0 |
| MFR Part No. | 12425136 |
| Maximum Cutting Depth | 61mm |
| Connection Diameter | 0.15mm |
| Rotational Speed Maximum | 5000 1/min |
| Maximum Depth of Cut | 61mm |
| Functional Length | 110mm |
| Material | Steel |
| Functional Diameter | 55mm |
| Tool Cutting Edge Angle | 90\u00b0 |
| Weight | 3.93kg |
| CoroPak | 11.5 |
