Product Range: CoroMill 690The cutting edge for titanium milling.CoroMill 690 is developed specifically for high-productivity 2D profile milling of titanium components. Inserts are securely fastened by iLock technology. By equipping every insert pocket with threaded coolant holes with nozzles for high pressure coolant delivery, you can apply maximum coolant where required.Features & Benefits-- High-productivity milling of titanium and HRSA-material- 4 cutting edge insert- I-Lock interface for security- Internal coolant

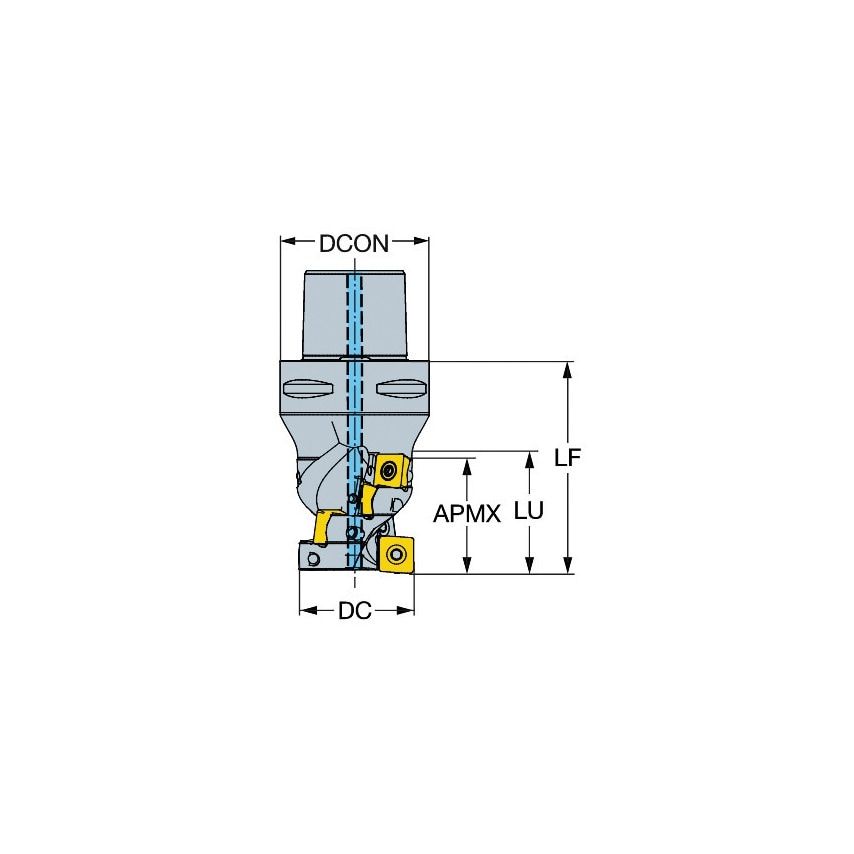

| Cutting Diameter | 34mm |
| Hand Preference | Right |
| Tool Cutting Edge Angle | 90\u00b0 |
| Functional Length | 132mm |
| Maximum Cutting Depth | 84mm |
| Center Cutting Capability | 19.05 |
| Weight | 4.57kg |
| Connection Diameter | 0.15mm |
| Rotational Speed Maximum | 5000 1/min |
| MFR Part No. | 12359314 |
| Standards Met | ISO26623-1 |
| Unit Measured | Metric |
| Functional Diameter | 55mm |
| CoroPak | 14.27 |
| Through Hole Function Property | Yes |
| Maximum Ramping Angle | 0\u00b0 |
| Body Material | Steel |
| Material | Steel |
| Usable Length | 132mm |
| Maximum Depth of Cut | 84mm |
