Product Range: CoroMill 690The cutting edge for titanium milling.CoroMill 690 is developed specifically for high-productivity 2D profile milling of titanium components. Inserts are securely fastened by iLock technology. By equipping every insert pocket with threaded coolant holes with nozzles for high pressure coolant delivery, you can apply maximum coolant where required.Features & Benefits-- High-productivity milling of titanium and HRSA-material- 4 cutting edge insert- I-Lock interface for security- Internal coolant

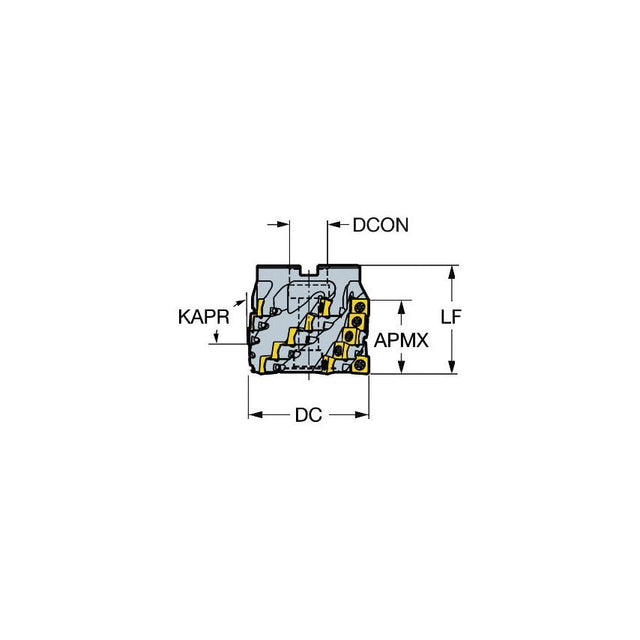

| Unit Measured | Metric |
| Rotational Speed Maximum | 5000 1/min |
| Center Cutting Capability | 19.05 |
| Coolant Entry Style | Without Coolant |
| Maximum Depth of Cut | 61mm |
| Usable Length | 90mm |
| Standards Met | ISO6462 |
| Through Hole Function Property | Yes |
| Hand Preference | Right |
| Maximum Ramping Angle | 0\u00b0 |
| CoroPak | 14.27 |
| Tool Cutting Edge Angle | 90\u00b0 |
| Connection Diameter | 6mm |
| Functional Length | 90mm |
| Body Material | Steel |
| Material | Steel |
| Weight | 3559.6g |
| MFR Part No. | 12359292 |
| Maximum Cutting Depth | 61mm |
| Cutting Diameter | 100mm |
