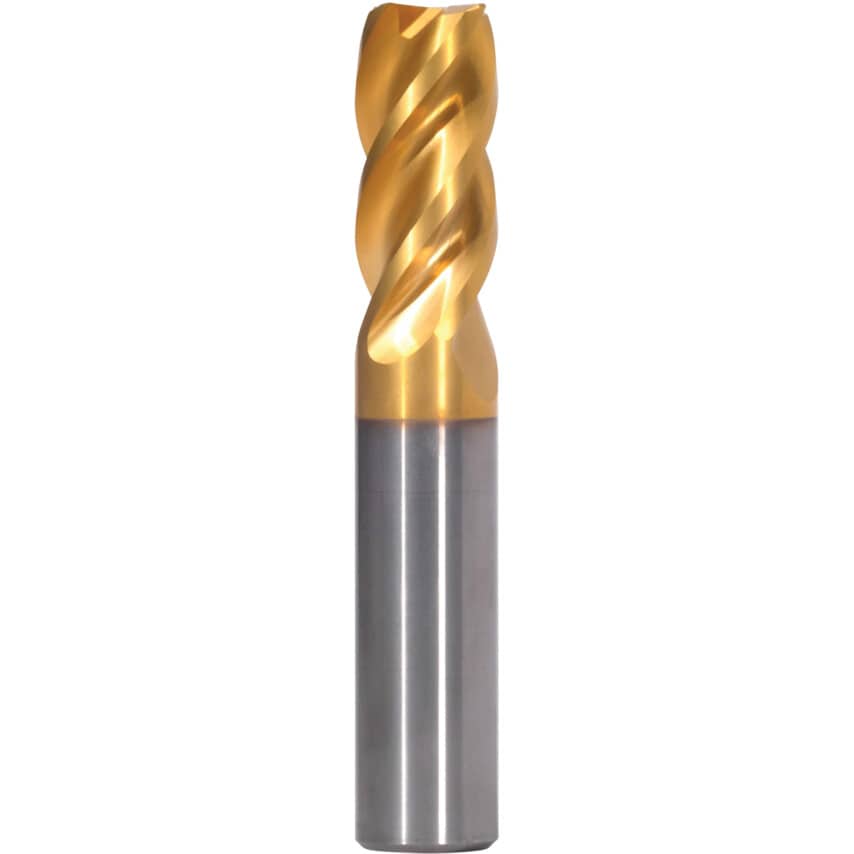

These Kennametal 4-flute GOmill PRO Solid Carbide End Mills are a go-to solution for small and medium sized shops. Designed for side and shoulder milling, helical milling, pocketing, slotting and shallow ramping, GOmill PRO delivers affordability, versatility and high performance for next level machining. Designed for cutting steels, stainless steels and cast iron.
Features and Benefits
Asymmetric divided flute offers better vibration control, tool life, and smoother cutting
Variable helix angle for better vibration control and tool life
Tapered core for better chip evacuation and tool strength
Multilayer TiN/TiAlN coating for high performance at medium-high cutting on steels, stainless steels and cast iron
Special relief design for higher edge strength, better vibration control and workpiece material flexibility

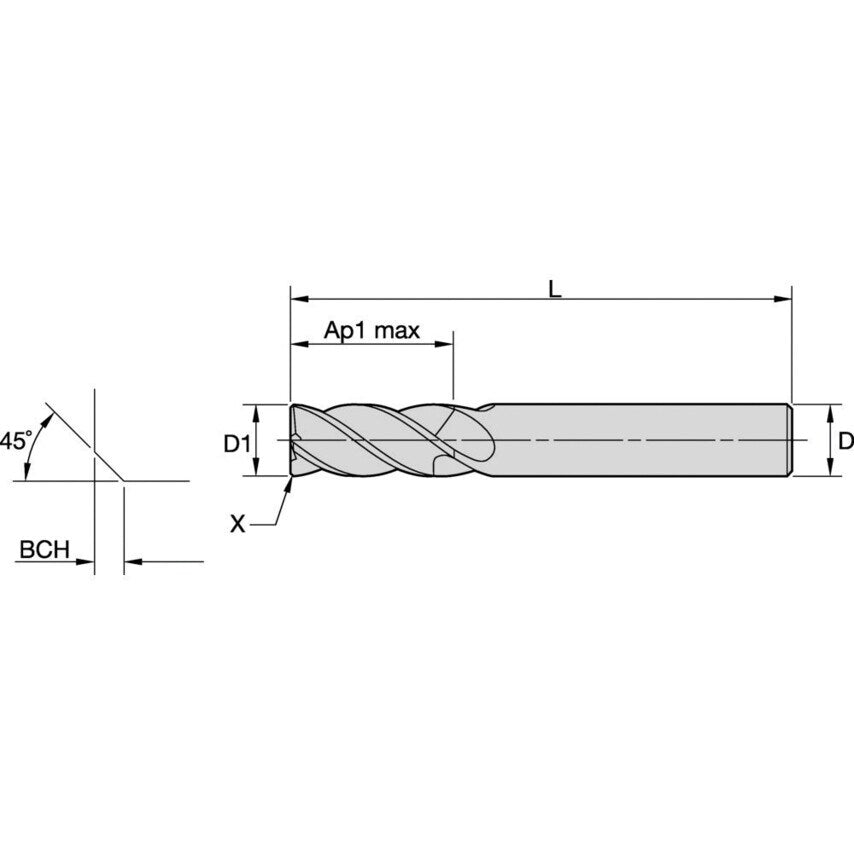

Notes
D1 = Cutter Diameter
D = Shank Diameter
D3 = Neck Diameter
Ap1 max = Max. Cutting Depth
L3 = Flute Length
| Milling Cutter Type | End Mills |
| Finish/Coating | KCU20 |
| End Mill Type | Square |
| MFR Part No. | 7231722 |
| Cutter Style | Square |
| Length Type | Regular |
| Series | GOmill PRO |
| Flute Length | 54mm |
| Cutter Diameter | 20mm |
| Overall Length | 104mm |
| Shank Diameter | 20mm |
| Material | Carbide |
| Number of Flutes | 4 |
| Shank Type | Cylindrical |
