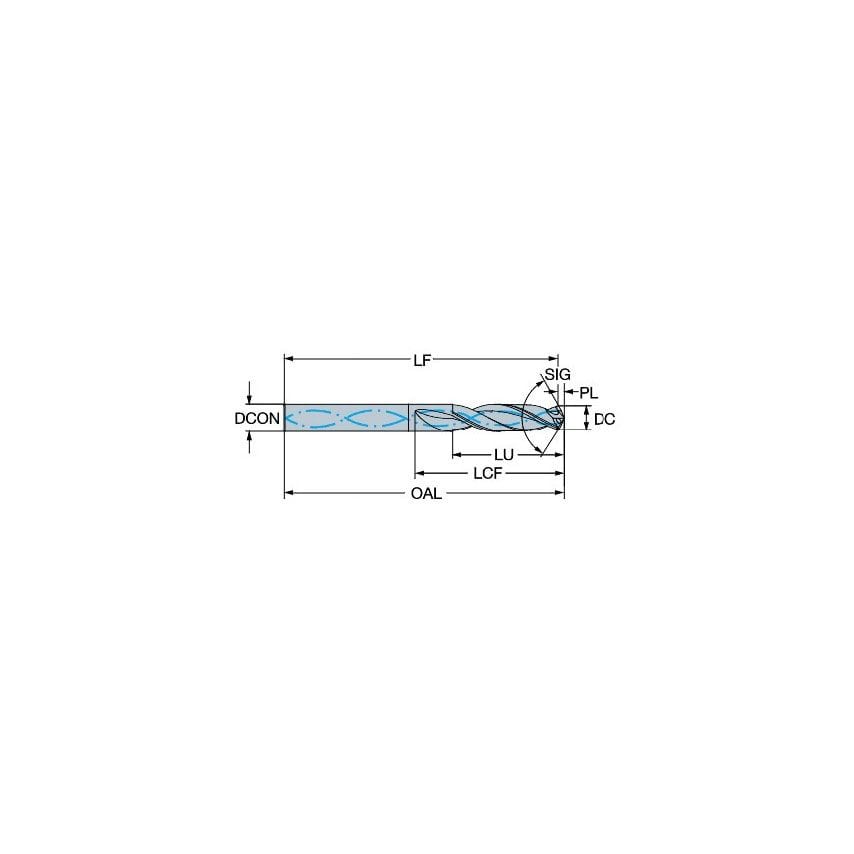

Product Range: CoroDrill 863Tool Type: Solid carbide drillsHigh performance drills for composites including carbon fibre reinforced materials (CFRP) and metal-matrix materials- High performance in CFRP and metallic stack materials- For CNC, ADU and robotic machines- Low-thrust geometries reduce hole delamination and exit burr
| Rotational Speed Maximum | 20000 1/min |
| Point Angle | 135\u00b0 |
| Usable Length Diameter Ratio | 4.03 |
| Achievable Hole Tolerance | H8 |
| Overall Length | 81mm |
| MFR Part No. | 7323220338733 |
| Coating Process Type | Uncoated |
| Unit Measured | Metric |
| Drill Diameter | 7.94mm |
| Functional Length | 78.59mm |
| Usable Length | 32mm |
| CoroPak | 15.2 |
| ISO Cutting Tool Material | Uncoated WC |
| Connection Diameter | 8mm |
| Weight | 49.7g |
| Coating Type | Uncoated |
| Material Grade | H10F |
| Standards Met | COROMANT |
