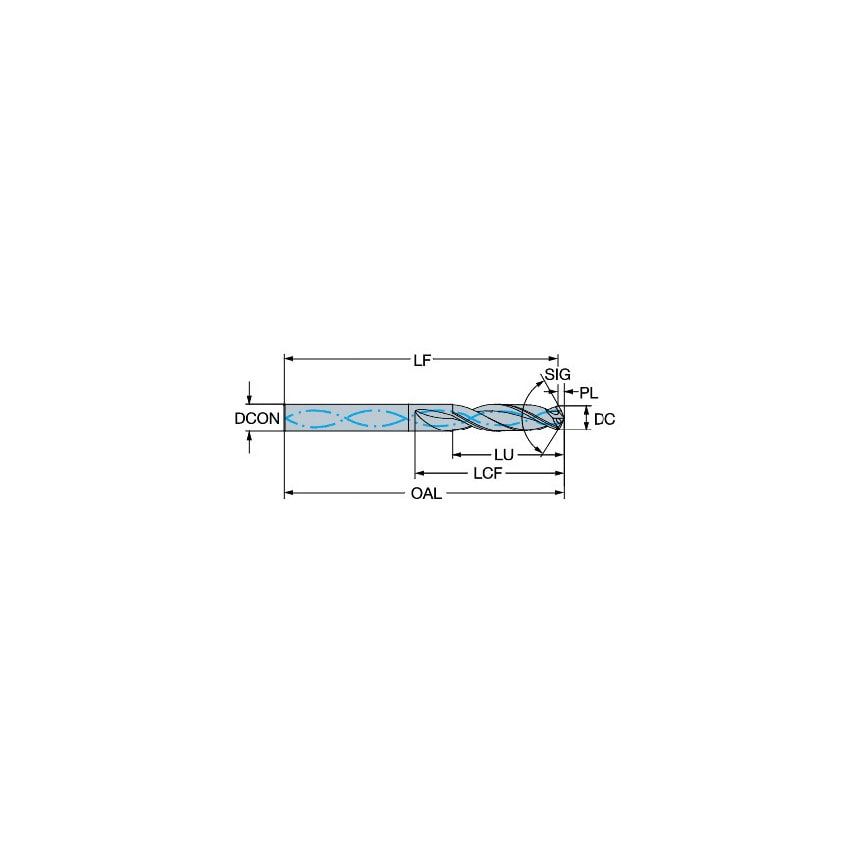

Product Range: CoroDrill 863Tool Type: Solid carbide drillsHigh performance drills for composites including carbon fibre reinforced materials (CFRP) and metal-matrix materials- High performance in CFRP and metallic stack materials- For CNC, ADU and robotic machines- Low-thrust geometries reduce hole delamination and exit burr
| Usable Length | 39mm |
| Overall Length | 93mm |
| Connection Diameter | 10mm |
| Point Angle | 135\u00b0 |
| Standards Met | COROMANT |
| Material Grade | H10F |
| Achievable Hole Tolerance | H8 |
| CoroPak | 15.2 |
| ISO Cutting Tool Material | Uncoated WC |
| Drill Diameter | 9.53mm |
| Unit Measured | Metric |
| Coating Type | Uncoated |
| Usable Length Diameter Ratio | 4.09 |
| MFR Part No. | 7323220338658 |
| Rotational Speed Maximum | 1200 1/min |
| Functional Length | 89.06mm |
| Coating Process Type | Uncoated |
