Product Range: CoroDrill 863Tool Type: Solid carbide drillsHigh performance drills for composites including carbon fibre reinforced materials (CFRP) and metal-matrix materials- High performance in CFRP and metallic stack materials- For CNC, ADU and robotic machines- Low-thrust geometries reduce hole delamination and exit burr

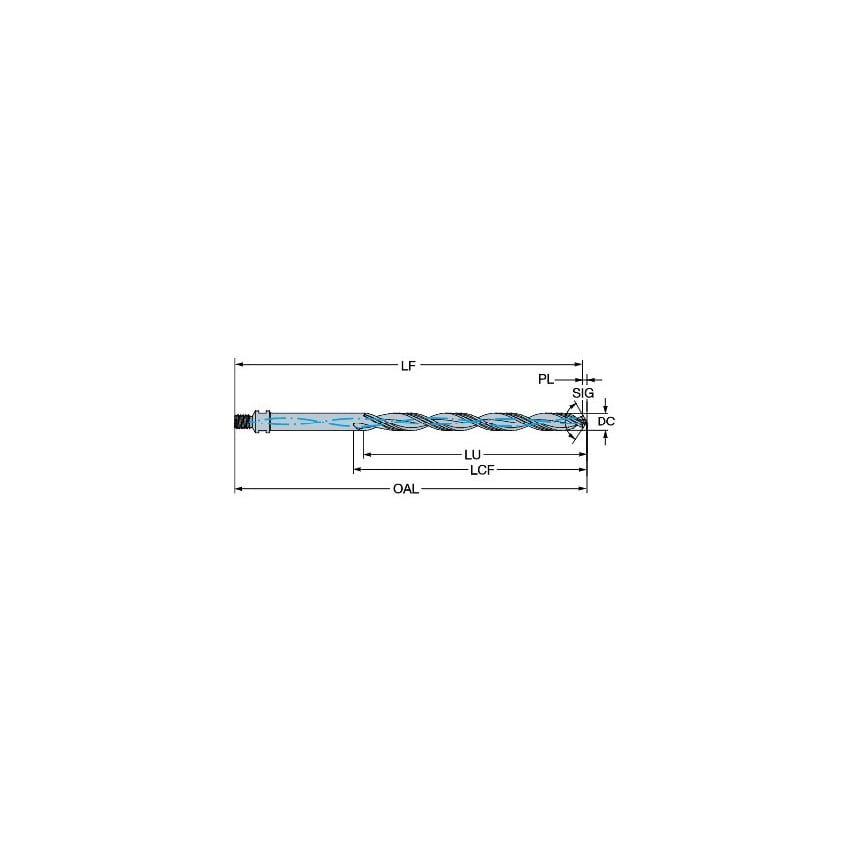

| Overall Length | 152.4mm |
| MFR Part No. | 7323220338863 |
| Drill Diameter | 9.55mm |
| Coating Process Type | Uncoated |
| Standards Met | COROMANT |
| Coating Type | Uncoated |
| Rotational Speed Maximum | 1200 1/min |
| Achievable Hole Tolerance | H8 |
| ISO Cutting Tool Material | Uncoated WC |
| Unit Measured | Metric |
| Usable Length | 58mm |
| Usable Length Diameter Ratio | 6.07 |
| Material Grade | H10F |
| Point Angle | 135\u00b0 |
| CoroPak | 15.2 |
| Functional Length | 140.86mm |
| Weight | 0.11kg |
