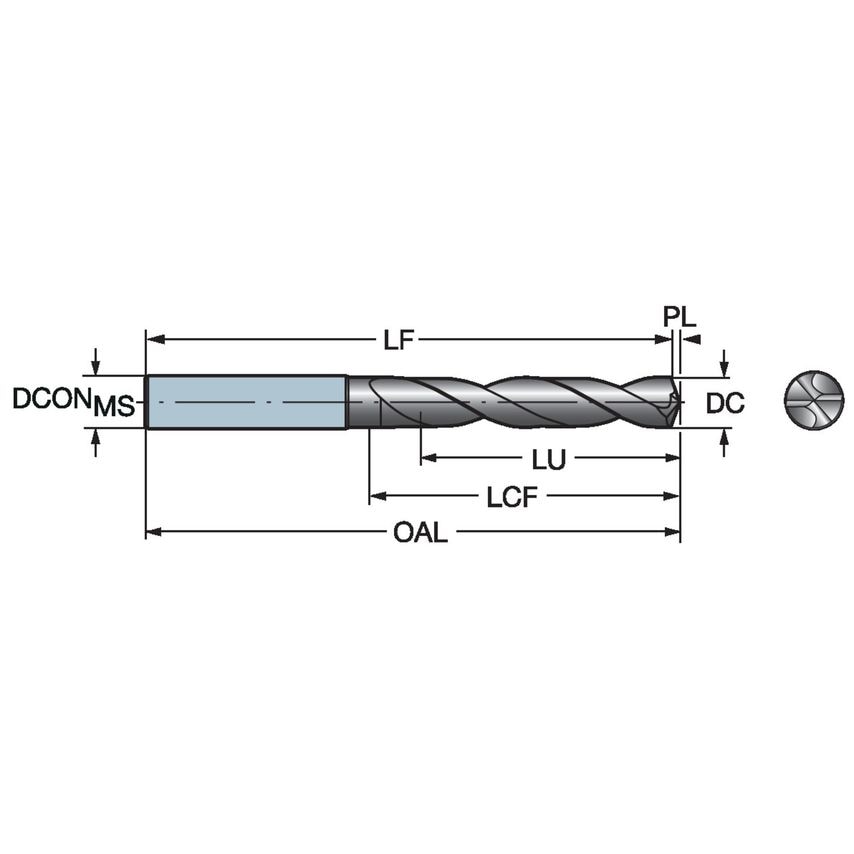

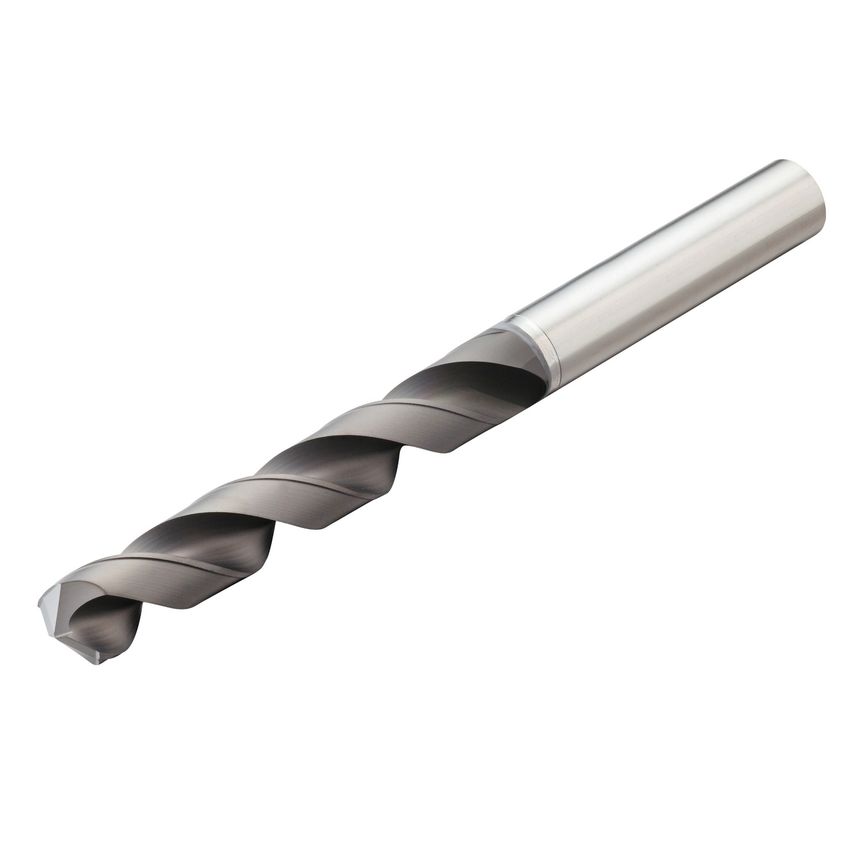

CoroDrill Delta-C solid carbide drill
| Standards Met | DIN 6537 L | DIN 6537 L |
| Functional Length | 100.9mm |
| Drill Diameter | 9mm | 9mm |
| Connection Diameter | 10mm |
| MFR Part No. | 25859638 |
| Point Angle | 130\u00b0 |
| Coolant Entry Style | Without Coolant |
| Coating Type | Sp3 |
| Overall Length | 103mm |
| Rotational Speed Maximum | 14147 1/min |
| Unit Measured | Metric |
| Usable Length Diameter Ratio | 5.23 |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Coating Process Type | CVD |
| Material Grade | N20C | N20C |
| Achievable Hole Tolerance | H9 |
| CoroPak | 10.1 |
| Weight | 0.1kg |
| Usable Length | 47.1mm |
