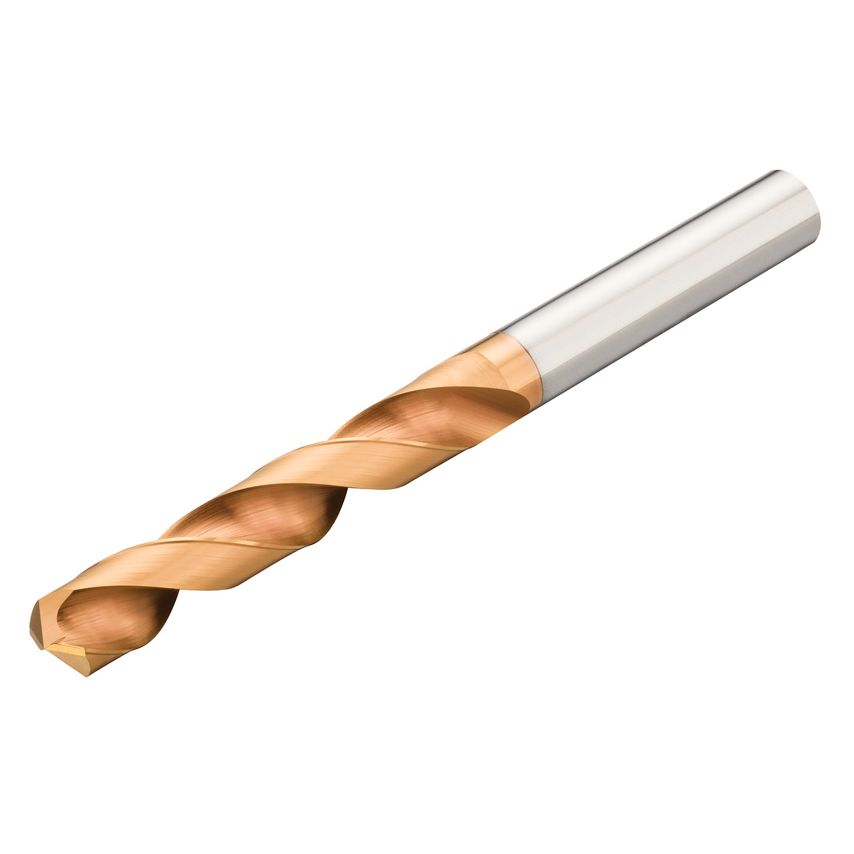

CoroDrill Delta-C solid carbide drill
| Coating Type | TiAlN |
| Point Angle | 140\u00b0 |
| Standards Met | DIN 6537 L |
| ISO Cutting Tool Material | Coated WC or Cermet |

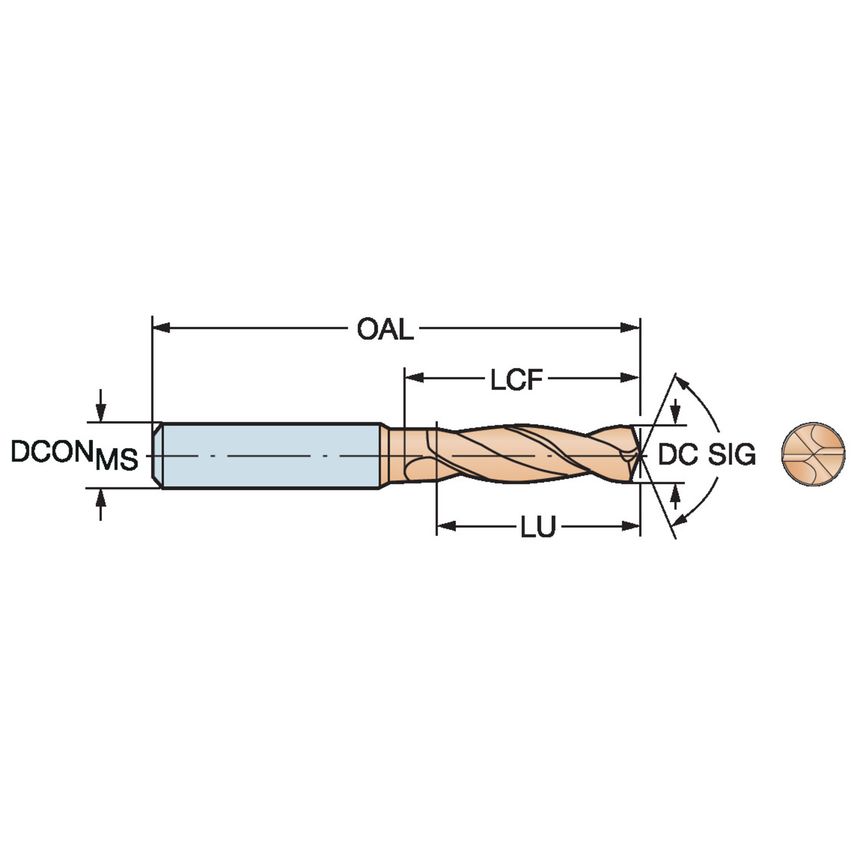

| Overall Length | 66mm |
| Coating Process Type | PVD |
| Usable Length | 18.6mm |
| Achievable Hole Tolerance | H9 |
| Drill Diameter | 3.6mm |
| Functional Length | 65.4mm |
| Connection Diameter | 6mm |
| Unit Measured | Metric |
| Material Grade | 1220 |
| MFR Part No. | 11494965 |
| CoroPak | 2.2 |
| Usable Length Diameter Ratio | 5.17 |
| Coolant Entry Style | Without Coolant |
| Rotational Speed Maximum | 20336 1/min |
