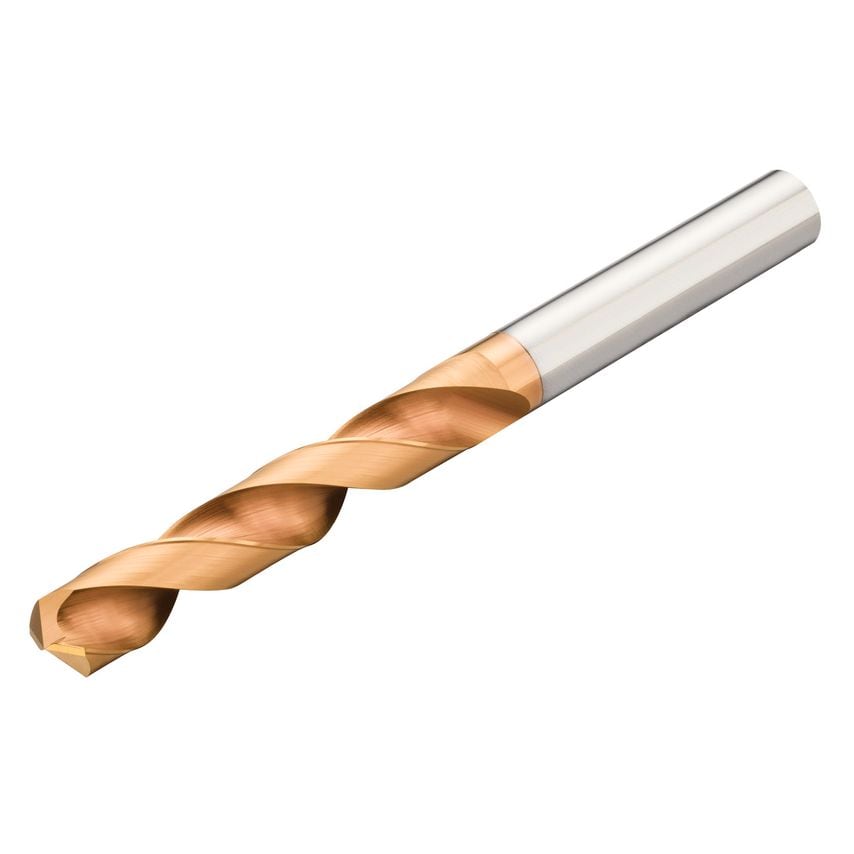

CoroDrill Delta-C solid carbide drill
| Unit Measured | Metric |
| Coating Type | TiAlN |
| MFR Part No. | 11495164 |
| CoroPak | 2.2 |
| Usable Length Diameter Ratio | 5.18 |
| Achievable Hole Tolerance | H9 |
| Material Grade | 1220 |
| ISO Cutting Tool Material | Coated WC or Cermet |

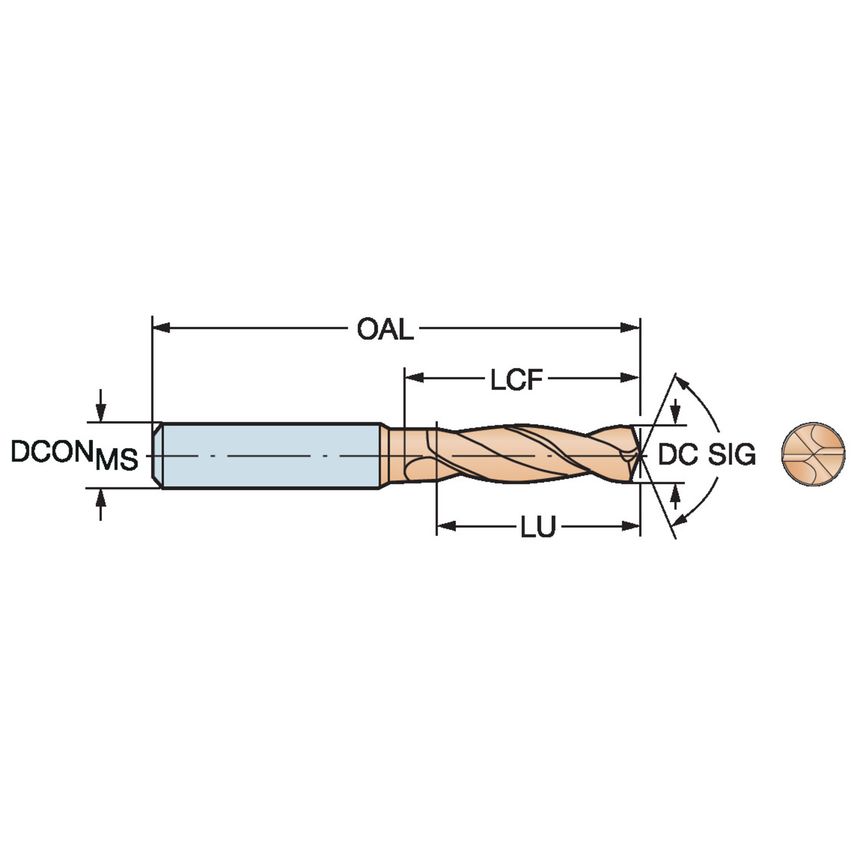

| Usable Length | 29mm |
| Functional Length | 81mm |
| Connection Diameter | 6mm |
| Standards Met | DIN 6537 L |
| Point Angle | 140\u00b0 |
| Rotational Speed Maximum | 13073 1/min |
| Drill Diameter | 5.6mm |
| Coolant Entry Style | Without Coolant |
| Overall Length | 82mm |
| Coating Process Type | PVD |
