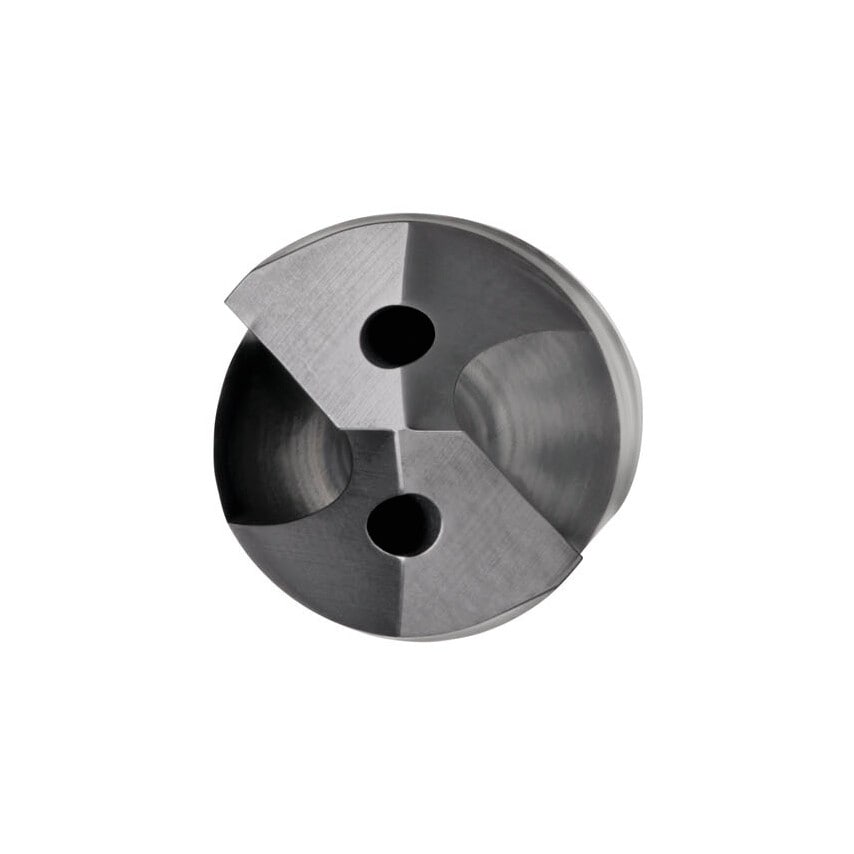

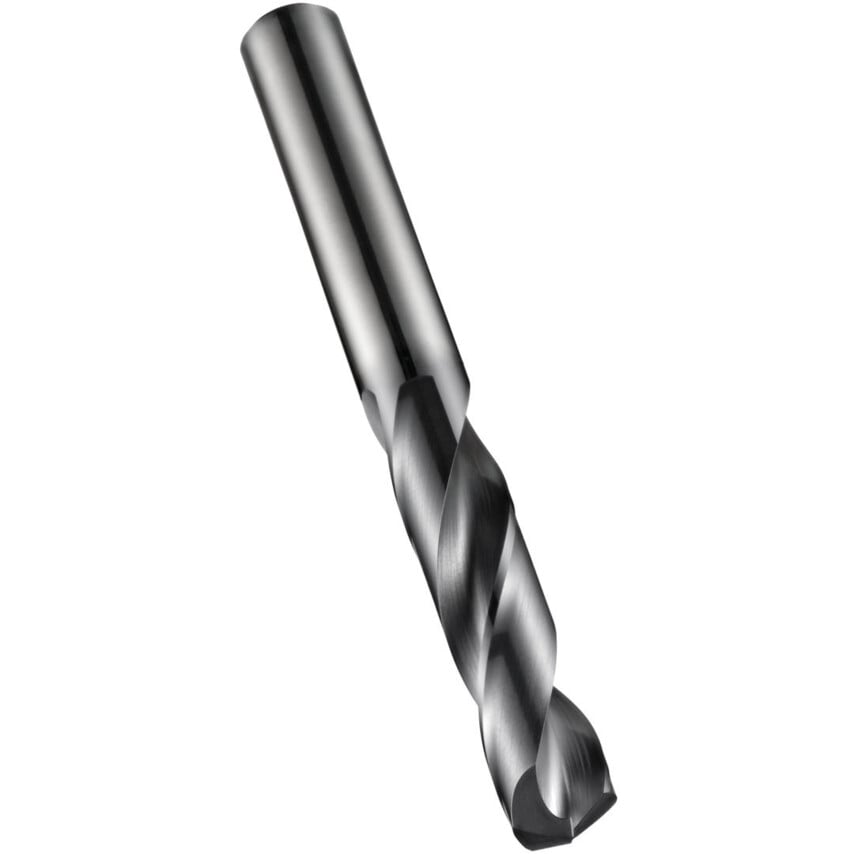

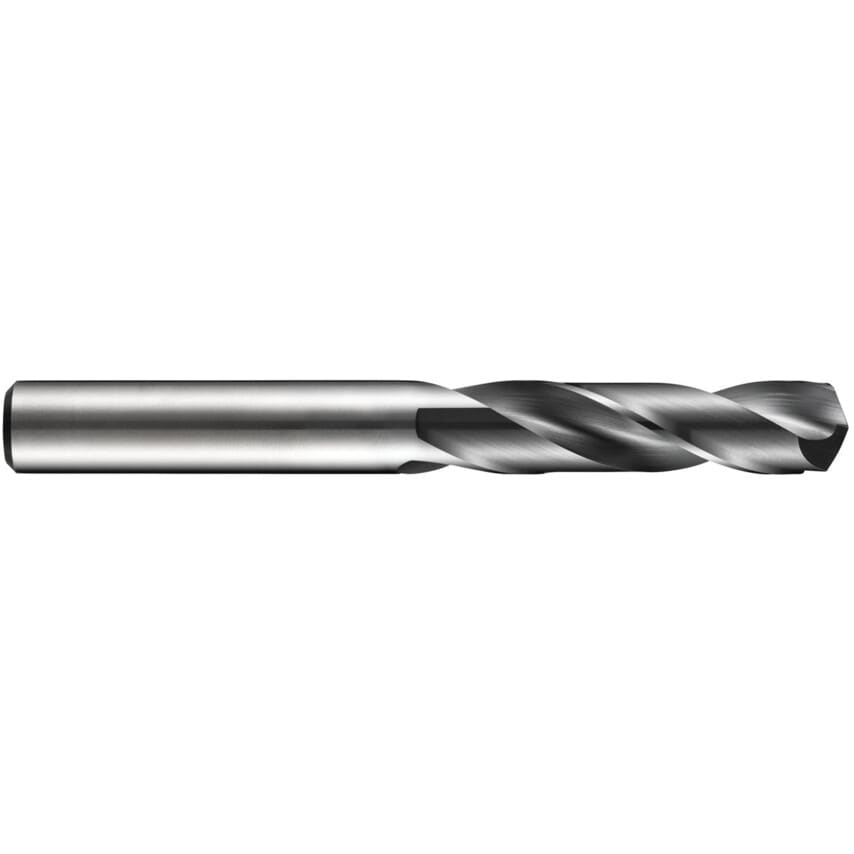

Carbide Force X Drill Oil Feed Drill - TiAlN Coated
Cost effective, high performance drilling across a wide range of materials including carbon and alloy steels, stainless, cast iron, aluminium and other non-ferrous metals.
Features
TiAlN coated
140 point
3 x D
Through coolant
Manufactured to DIN 6537K
Shank manufactured to DIN 6535HA
Sizes 3.00mm to 20.00mm
Carbide
| Number of Flutes | 2 |
| Material | Carbide |
| Shank Diameter | 8mm |
| Point Angle | 140\u00b0 |
| Flute Type | Spiral |
| MFR Part No. | R4576.9 |
| Shank Diameter Tolerance | H6 |
| Drill Diameter Tolerance | M7 |
| Series | R457 |
| Standards Met | DIN 6535HA | DIN 6537K |
| Finish/Coating | TiAlN |
| ISO Category | H | K | M | N | P | S |
| Carbide Drill Type | Carbide High Performance |
| Drill Diameter | 6.9mm |
| Point Type | 4 Facet Split Point |
| Diameter x Depth | 3xD |
| Overall Length | 79mm |
| Cutting Direction | Right Hand |
| Helix Type | Continuously Thinned Web |
| Coolant Delivery | Coolant Through |
| Flute Length | 37mm |
| Material Grade | HM |
