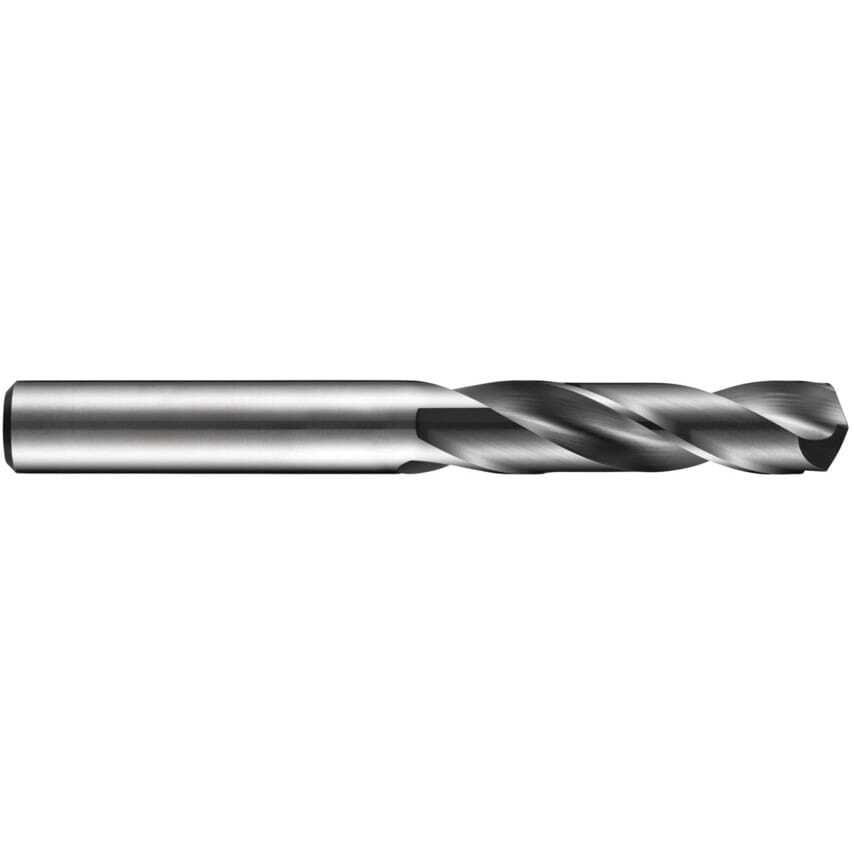

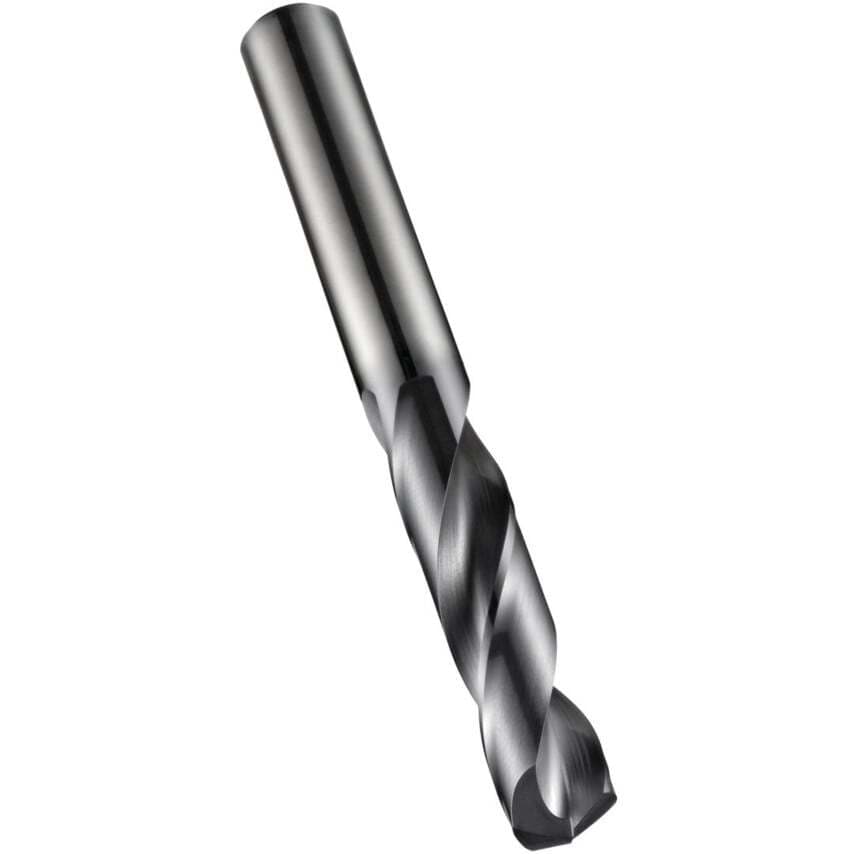

Series R457 Metric
Cost effective, high performance drilling across a wide range of materials including carbon and alloy steels, stainless, cast iron, aluminium and other non-ferrous metals.
TiAlN coated. 140 point.
3 x D
| Flute Length | 47mm |
| Product Series | R457 |
| ISO Category | H | K | M | N | P | S |
| Finish/Coating | TiAlN |
| MFR Part No. | R4578.5 |
| Drill Diameter | 8.5mm |
| Series | R457 |

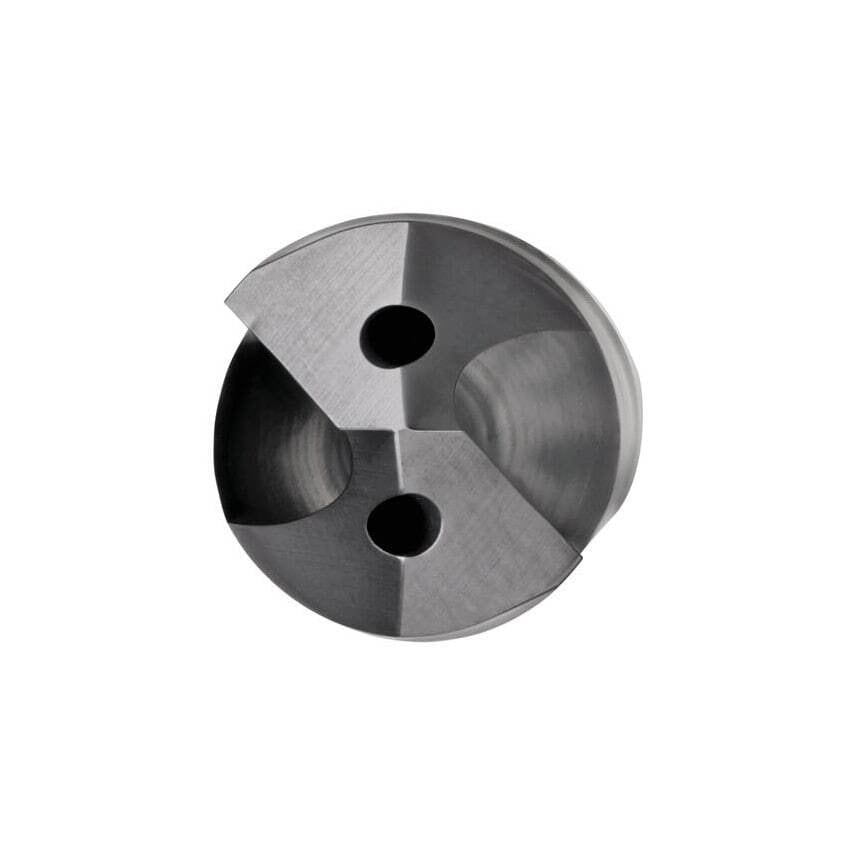

| Point Type | 4 Facet Split Point |
| Shank Diameter Tolerance | H6 |
| Unit System | Metric |
| Overall Length | 89mm |
| Cutting Direction | Right |
| Shank Diameter | 10mm |
| Diameter x Depth | 3xD |
| Spiral Form | Continuously Thinned Web |
| Product Type | Drills |
| Carbide Drill Type | Carbide High Performance |
| Number of Flutes | 2 |
| Helix Type | Continuously Thinned Web |
| Material Grade | HM |
| Shank | Cylindrical shank DIN 6535 HA |
| Coolant Delivery | Internal |
| Material | HM |
| Standards Met | DIN 6537 K |
| Unit of Measurement | Metric |
| Flute Type | Spiral |
| Drill Diameter Tolerance | M7 |
| Point Angle | 140\u00b0 |
