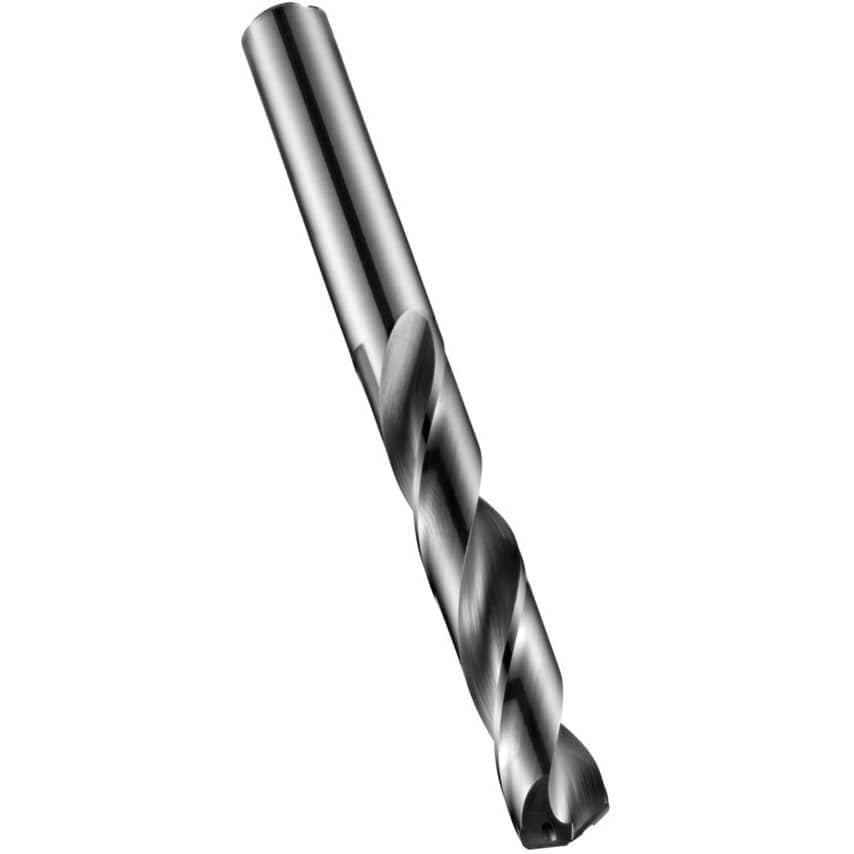

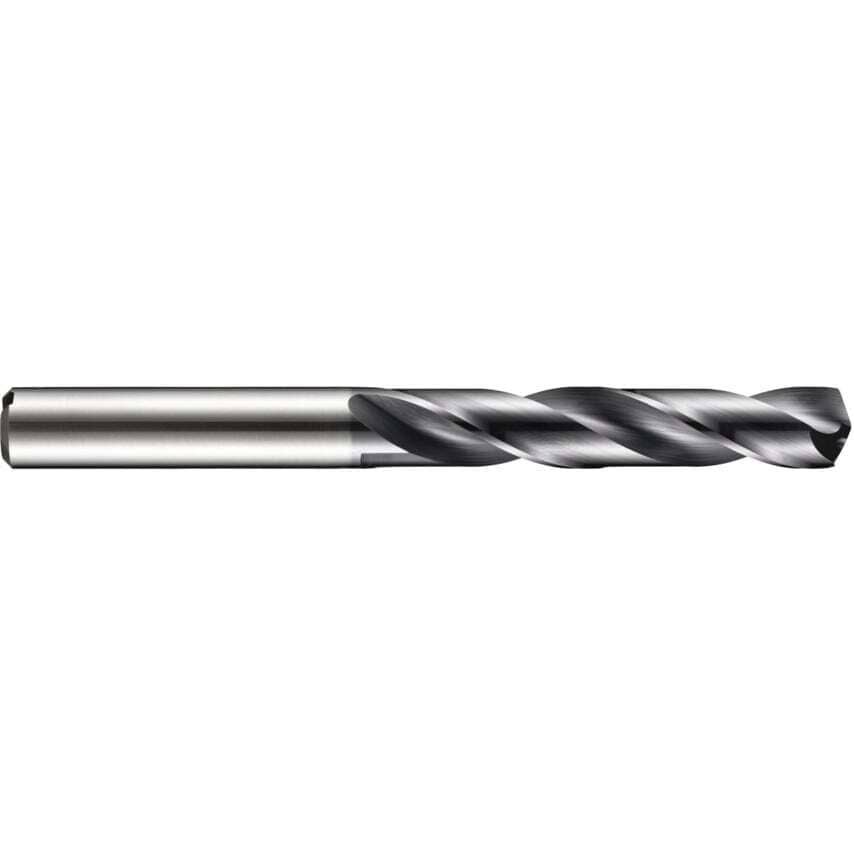

High-performance FORCE X drill with DIN 6535HA NC parallel shank
| Carbide Drill Type | Carbide High Performance |

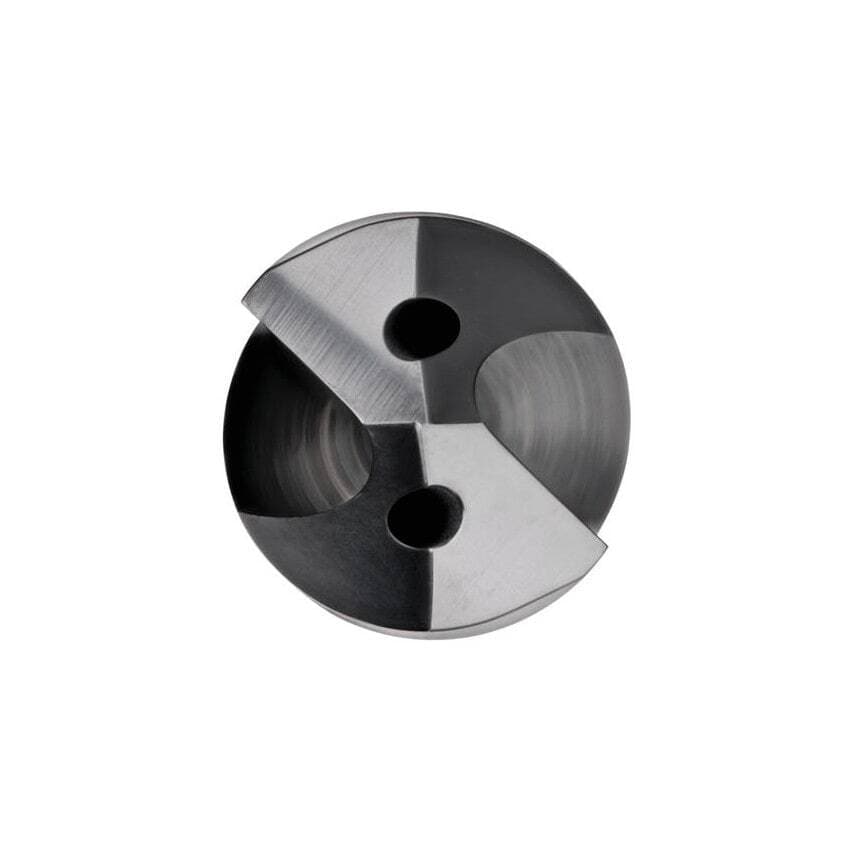

| Point Type | 4 Facet Split Point |
| Helix Type | Continuously Thinned Web |
| Spiral Form | Continuously Thinned Web |
| Cutting Direction | Right |
| Shank Diameter Tolerance | H6 |
| Material | HM |
| Number of Flutes | 2 |
| Coolant Delivery | Internal |
| ISO Category | H | K | M | N | P | S |
| Shank Diameter | 6mm |
| Flute Length | 36mm |
| Unit System | Metric |
| Drill Diameter Tolerance | M7 |
| Material Grade | HM |
| Overall Length | 74mm |
| Point Angle | 140\u00b0 |
| Series | R453 |
| Drill Diameter | 3.8mm |
| Flute Type | Spiral |
| Standards Met | DIN 6537 L |
| Shank | Cylindrical shank DIN 6535 HA |
| Product Type | Drills |
| Finish/Coating | TiAlN |
| Unit of Measurement | Metric |
| MFR Part No. | R4533.8 |
| Diameter x Depth | 5xD |
| Product Series | R453 |
