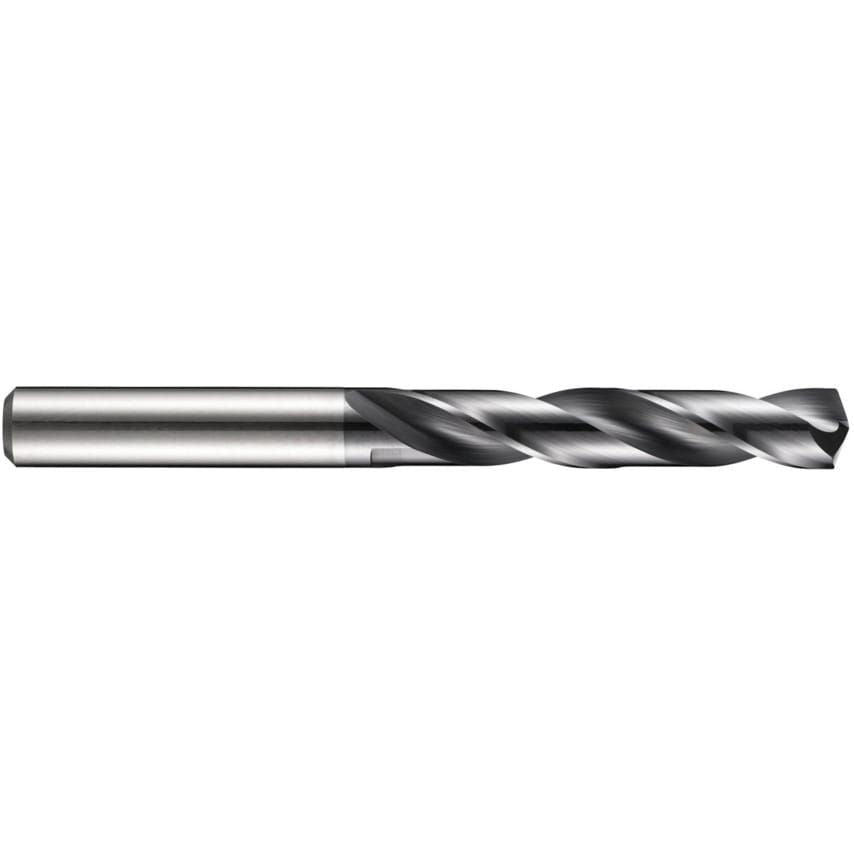

Series R454 Metric
Cost effective, high performance drilling across a wide range of materials including carbon and alloy steels, stainless, cast iron, aluminium and other non-ferrous metals.
TiAlN coated. 140 point.
5 x D
| Point Angle | 140\u00b0 |
| Product Series | R454 |
| Standards Met | DIN 6537 L |
| Flute Length | 70mm |
| Shank Diameter Tolerance | H6 |
| ISO Category | H | K | M | N | P | S |
| Overall Length | 118mm |
| Drill Diameter | 11mm |
| Spiral Form | Continuously Thinned Web |
| Helix Type | Continuously Thinned Web |
| Unit System | Metric |
| Series | R454 Force X |
| Number of Flutes | 2 |
| Carbide Drill Type | Carbide High Performance |
| Cutting Direction | Right |
| Diameter x Depth | 5xD |

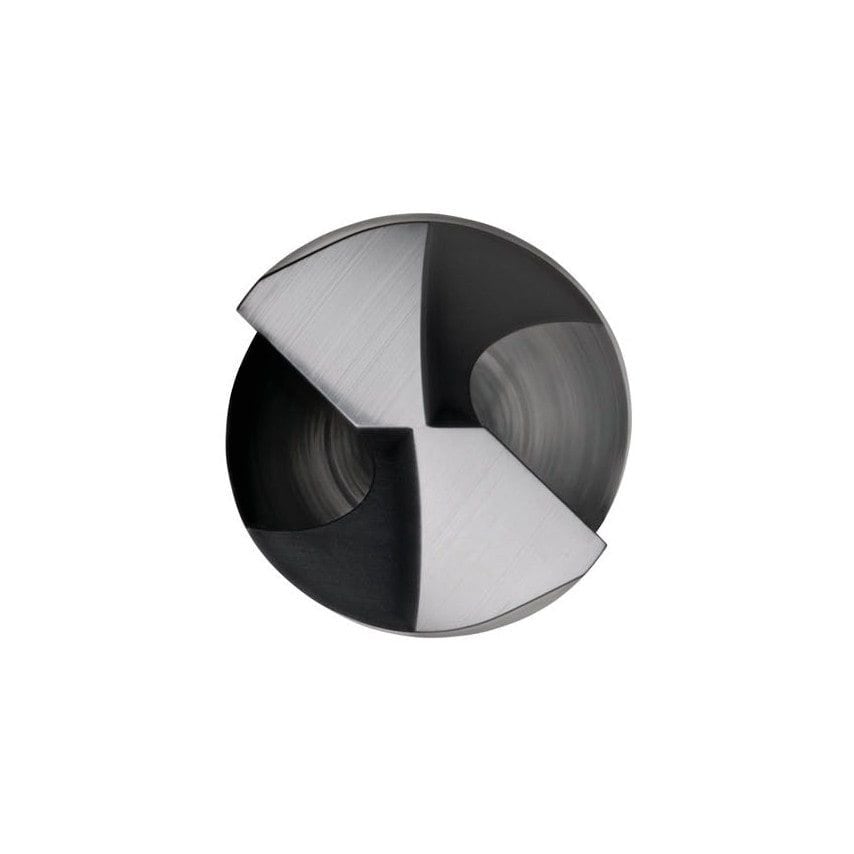

| Point Type | 4 Facet Split Point |
| Unit of Measurement | Metric |
| Material | HM |
| Flute Type | Spiral |
| MFR Part No. | R45411.0 |
| Coolant Delivery | External |
| Shank Diameter | 12mm |
| Shank | Cylindrical shank DIN 6535 HA |
| Material Grade | HM |
| Drill Diameter Tolerance | M7 |
| Finish/Coating | TiAlN |
