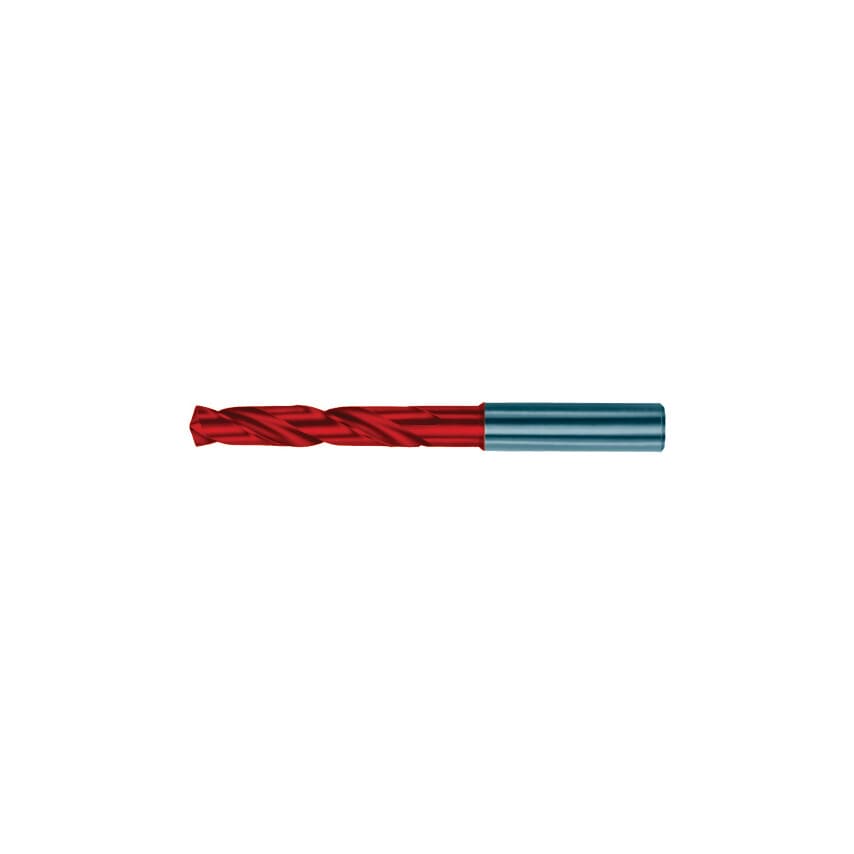

Guhring No.5515 Series solid carbide jobber drill suitable for drilling into general steel, cast steel, cast iron, chilled cast iron, malleable cast iron, non-ferrous heavy and light metal, and abrasive plastic.
Features and Benefits
FIREX coating allows operation at higher temperatures for longer periods
Wear resistance properties extends tool lifespan up for 50/60%
Hard carbide construction for greater strength and rigidity when machining
Specifications
FIREX Coated
Self-centering
Point angle: 140
Diameter tolerance m7
Shank tolerance h6
Manufactured to DIN 6537
5xD
Typical Applications
Drilling
Steel
Cast steel
Cast iron
Light metals
Abrasive plastic
| Material | Carbide |
| Shank Diameter | 12mm |
| Number of Flutes | 2 |
| Drill Diameter | 11.2mm |
| Flute Type | Spiral |
| Overall Length | 118mm |
| Drill Diameter Tolerance | M7 |
| Series | 5515 |
| ISO Category Grade | K | P |
| Helix Type | Normal Helix |
| Carbide Drill Type | Carbide High Performance |
| Coolant Delivery | External |
| Flute Length | 71mm |
| Standards Met | DIN 6537 |
| Finish/Coating | FIREX\u00ae |
| Cutting Direction | Right Hand |
| MFR Part No. | 05515 011.200 |
| Shank Diameter Tolerance | H6 |
| Drill Diameter Metric | 11.2mm |
| Point Angle | 140\u00b0 |
| ISO Category | K | P |
