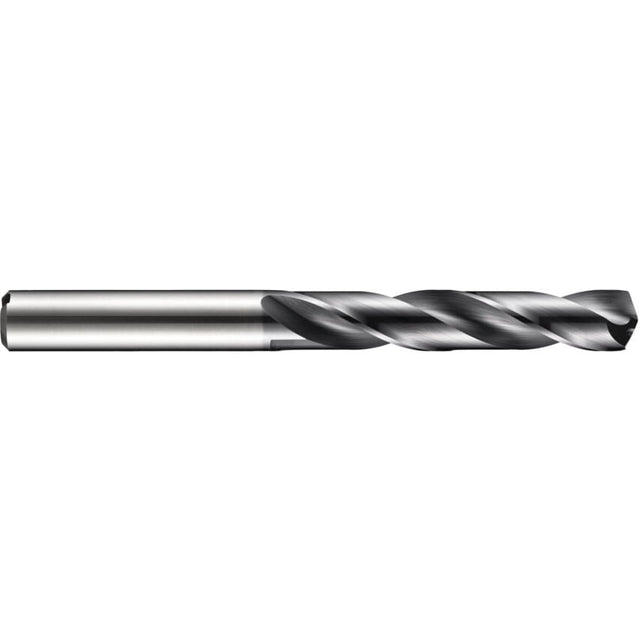

Series R453 Metric
Cost effective, high performance drilling across a wide range of materials including carbon and alloy steels, stainless, cast iron, aluminium and other non-ferrous metals.
TiAlN coated. 140 point.
5 x D
| Helix Type | Continuously Thinned Web |
| Flute Length | 44mm |
| Shank Diameter | 6mm |
| Drill Diameter | 5mm |
| Material | Carbide |
| Shank Diameter Tolerance | H6 |
| Series | R453 |
| MFR Part No. | R4535.0 |
| Drill Diameter Metric | 5mm |
| Overall Length | 82mm |
| Point Type | 4 Facet Split Point |
| Carbide Drill Type | Carbide High Performance |
| Number of Flutes | 2 |
| Standards Met | DIN 6535HA | DIN 6537L |
| Cutting Direction | Right Hand |
| Finish/Coating | TiAlN |
| Diameter x Depth | 5xD |
| Coolant Delivery | Coolant Through |
| Point Angle | 140\u00b0 |
| Drill Diameter Tolerance | M7 |
| Flute Type | Spiral |
| ISO Category | H | K | M | N | P | S |
| Material Grade | HM |
