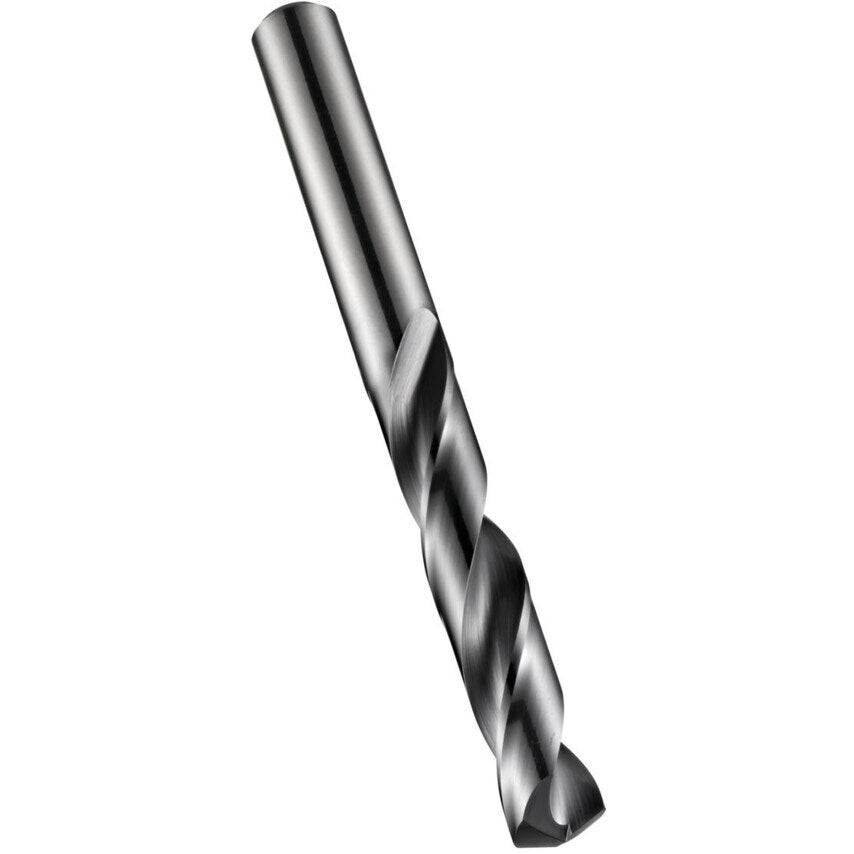

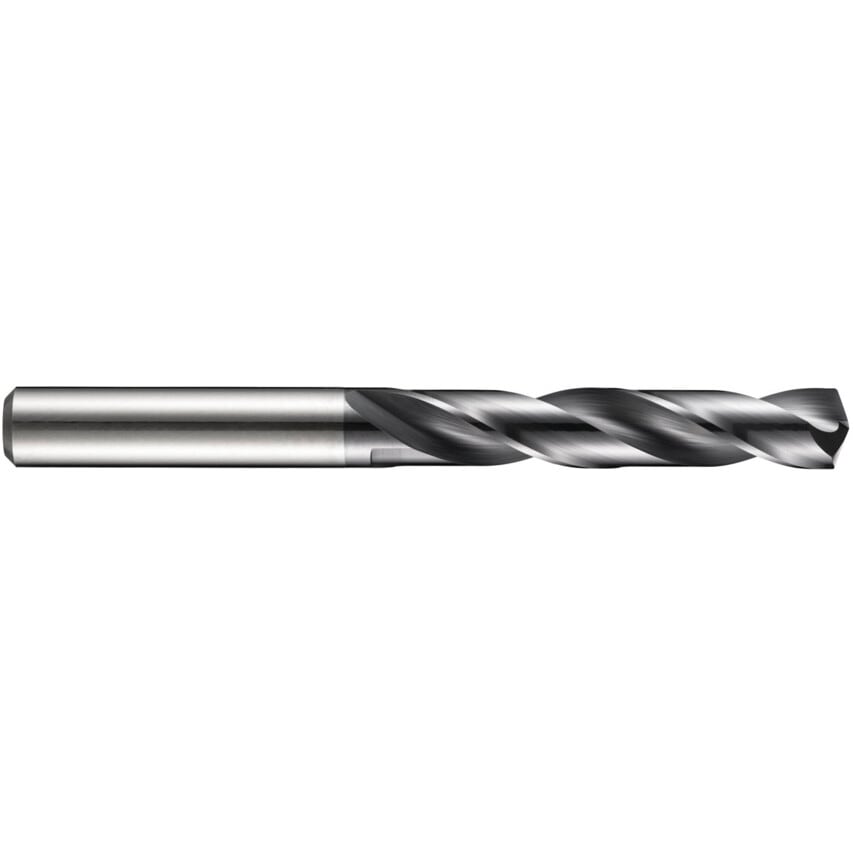

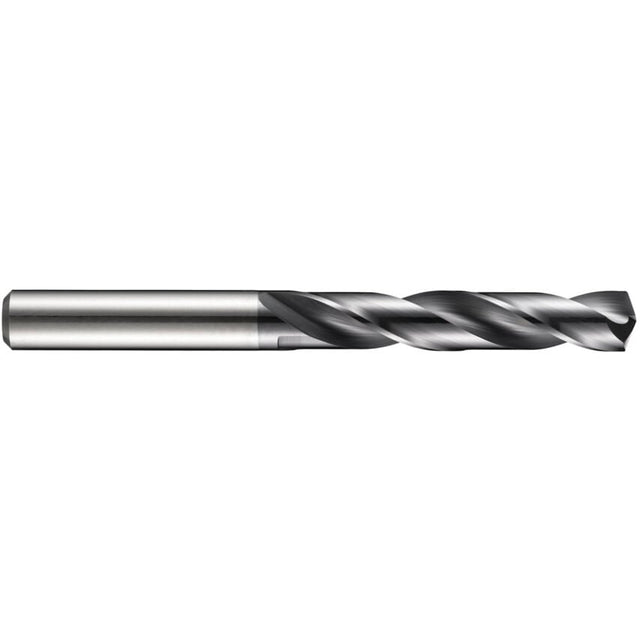

R454 Carbide Force X Drills offer high performance drilling across a wide range of materials including carbon and alloy steels, stainless, cast iron, aluminium and other non-ferrous metals.
Features and Benefits
Carbide Force
TiAlN coated for increased production levels
Cost effective
Standards
Manufactured to DIN 6537L
Shan manufactured to DIN 6535HA
Notes
Size 3.00mm to 20.00mm
| Flute Length | 76mm |
| Material | Carbide |
| Overall Length | 124mm |
| Drill Diameter Tolerance | M7 |
| Material Grade | HM |
| MFR Part No. | R45414.0 |
| Helix Type | Continuously Thinned Web |
| Shank Diameter | 14mm |
| Shank Diameter Tolerance | H6 |
| Carbide Drill Type | Carbide High Performance |
| Cutting Direction | Right Hand |
| Series | R454 |
| Standards Met | DIN 6535HA | DIN 6537L |
| Diameter x Depth | 5xD |
| Drill Diameter | 14mm |
| Finish/Coating | TiAlN |

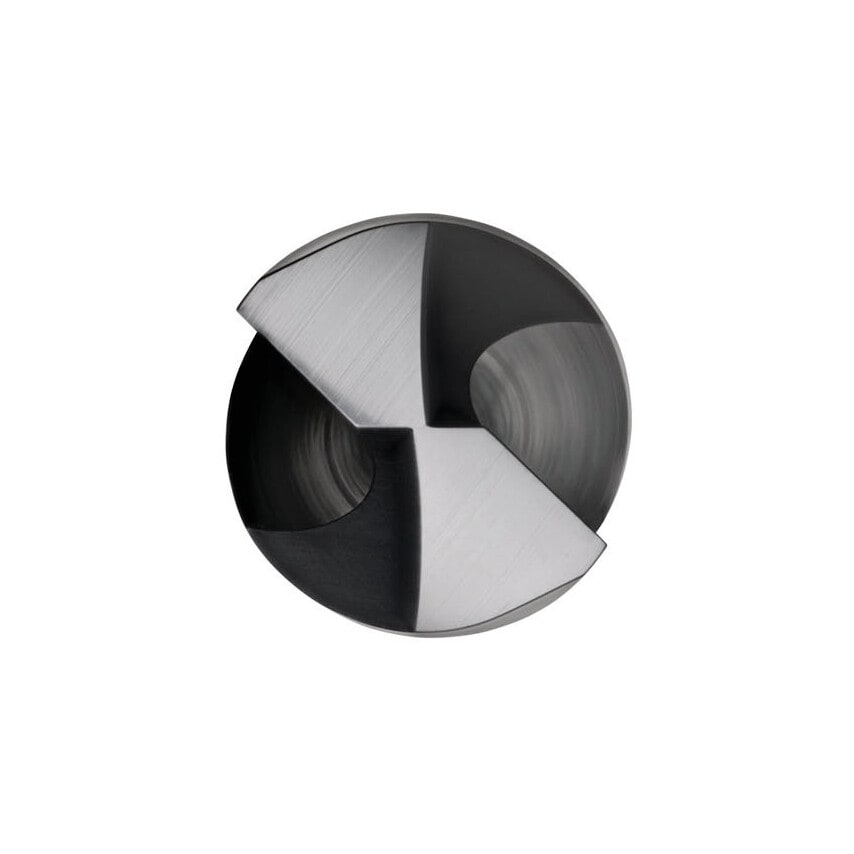

| Point Type | 4 Facet Split Point |
| Coolant Delivery | External |
| Number of Flutes | 2 |
| Point Angle | 140\u00b0 |
| Flute Type | Spiral |
| Drill Diameter Metric | 14mm |
| ISO Category | H | K | M | N | P | S |
