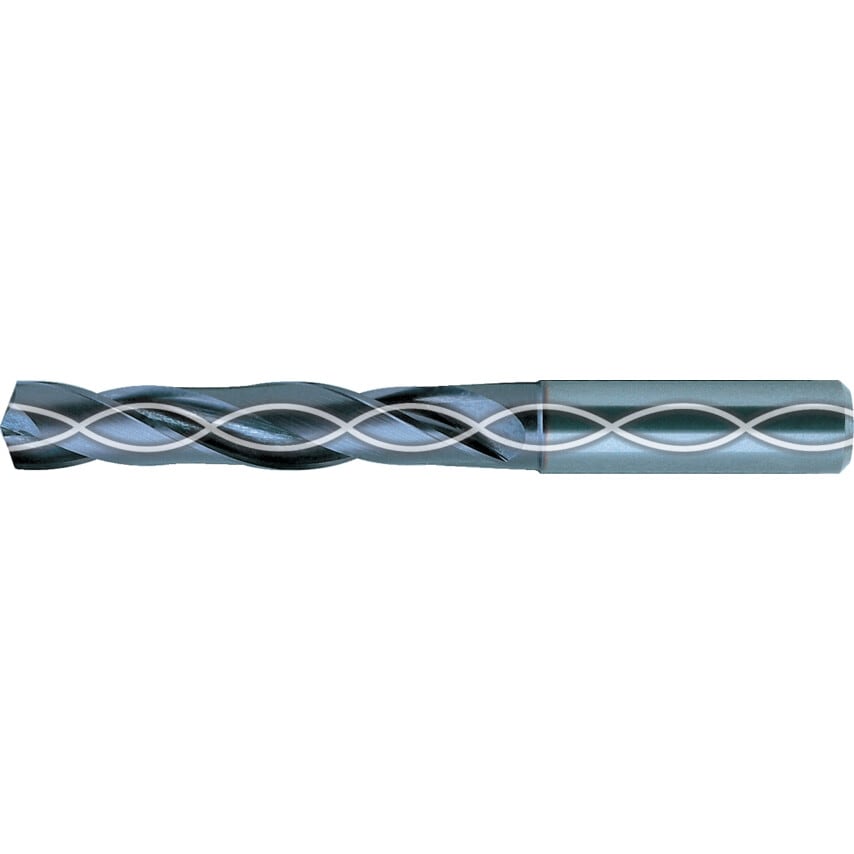

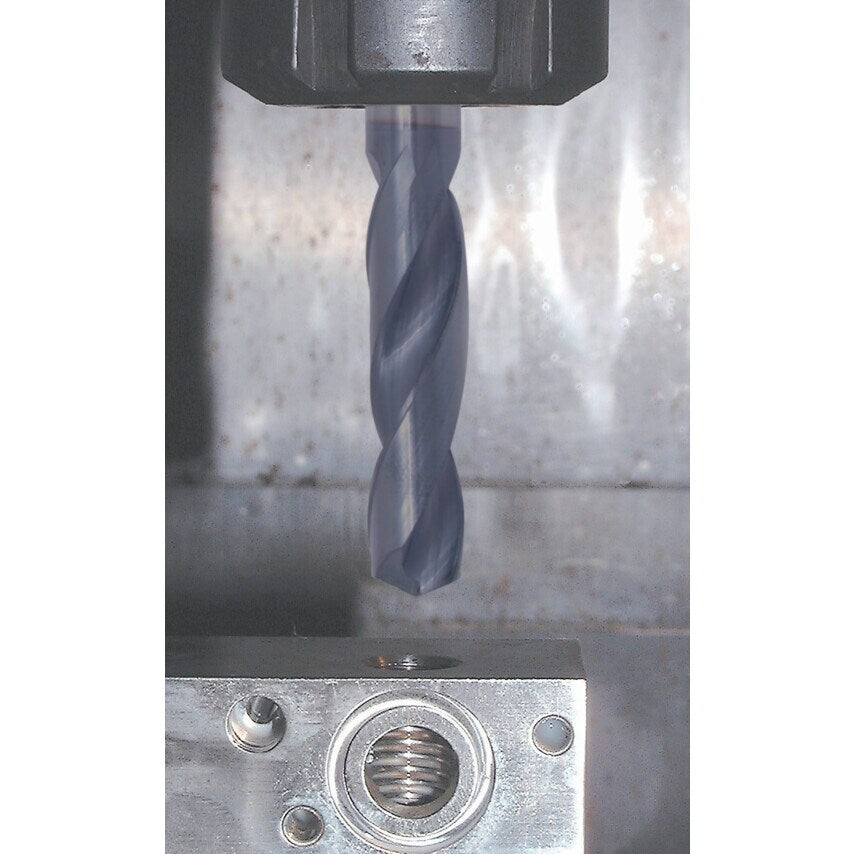

For drilling into general steel, cast steel, cast iron, chilled cast iron, malleable cast iron, non-ferrous heavy and light metal, and abrasive plastic, self-centering.
Point angle: 140, tolerance of diameter: m7, tolerance of shank: h6. Manufactured to DIN 6537.
| Overall Length | 66mm |
| Point Angle | 140\u00b0 |
| Number of Flutes | 2 |
| Standards Met | DIN6537 |
| Cutting Direction | Right Hand |
| Finish/Coating | Q-Coat |
| Helix Angle | 30\u00b0 |
| Shank Diameter | 6mm |
| Carbide Drill Type | Carbide High Performance |
| Drill Diameter Tolerance | M7 |
| MFR Part No. | DH406042 |
| Material | Carbide |
| Shank Diameter Tolerance | H6 |
| Coolant Delivery | Coolant Through |
| ISO Category | S |
| Flute Length | 24mm |
| Flute Type | Spiral |
| Drill Diameter | 4.2mm |
| Material Grade | Carbide |
| Helix Type | 30\u00b0 |
| Diameter x Depth | 3xD |
