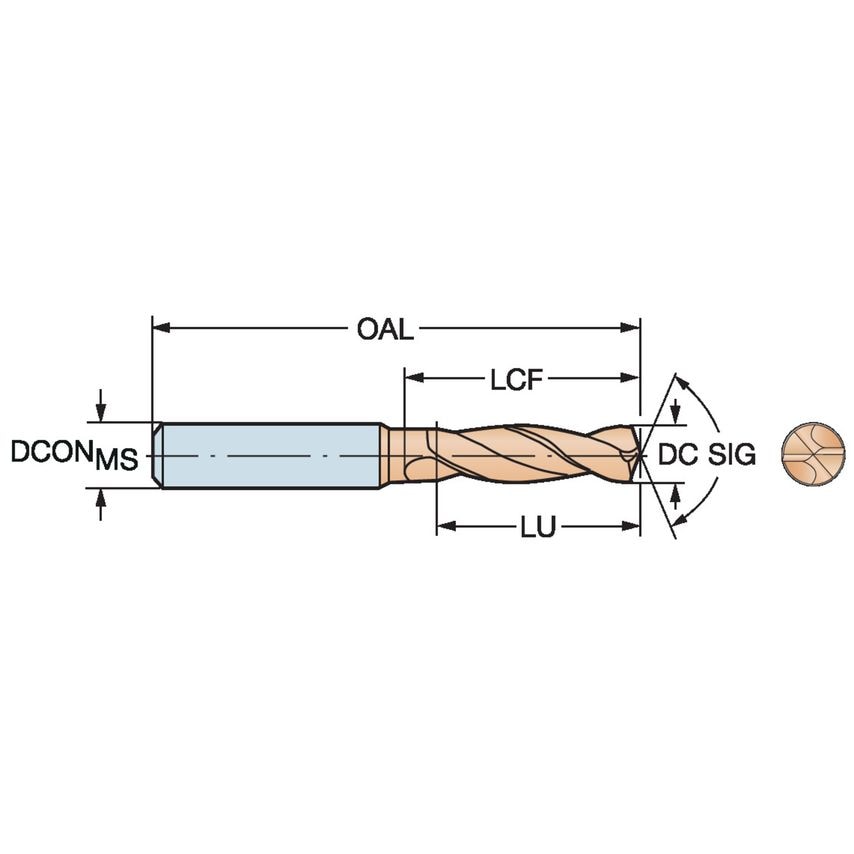

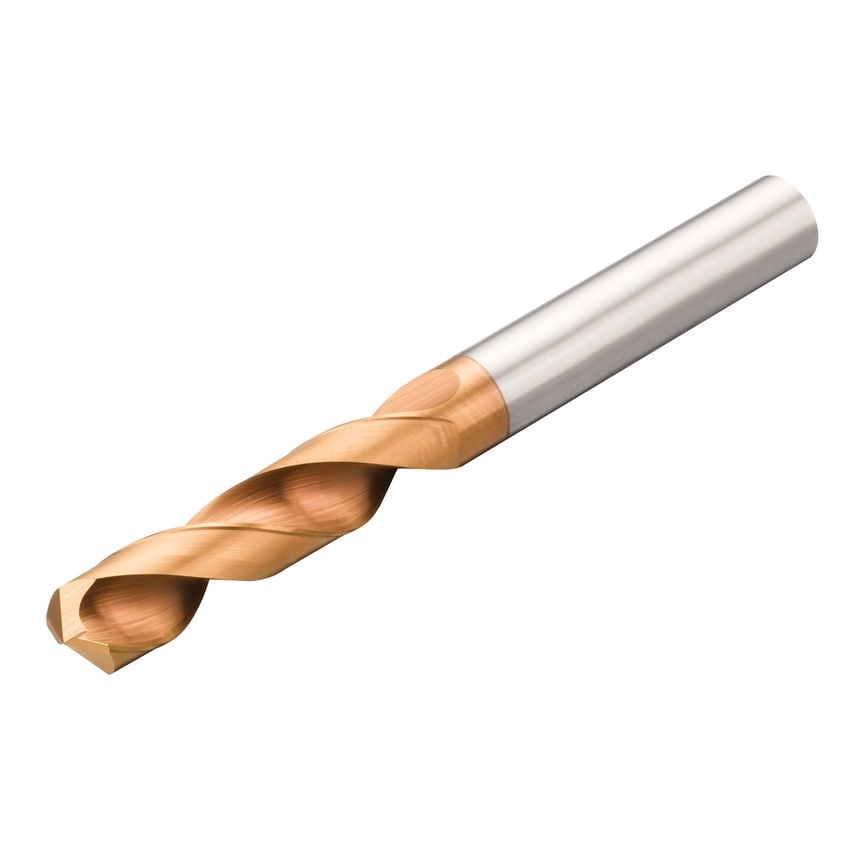

CoroDrill Delta-C solid carbide drill
| Functional Length | 77.7mm |
| ISO Cutting Tool Material | Coated WC or Cermet |
| CoroPak | 2.2 |
| Usable Length Diameter Ratio | 3.17 |
| Rotational Speed Maximum | 9386 1/min |
| Coolant Entry Style | Without Coolant |
| Coating Process Type | PVD |
| Standards Met | DIN 6537 K |
| Point Angle | 140\u00b0 |
| Connection Diameter | 8mm |
| Unit Measured | Metric |
| Overall Length | 79mm |
| Coating Type | TiAlN |
| Material Grade | 1220 |
| Drill Diameter | 7.8mm |
| Usable Length | 24.7mm |
| Achievable Hole Tolerance | H9 |
| MFR Part No. | 5747398 |
