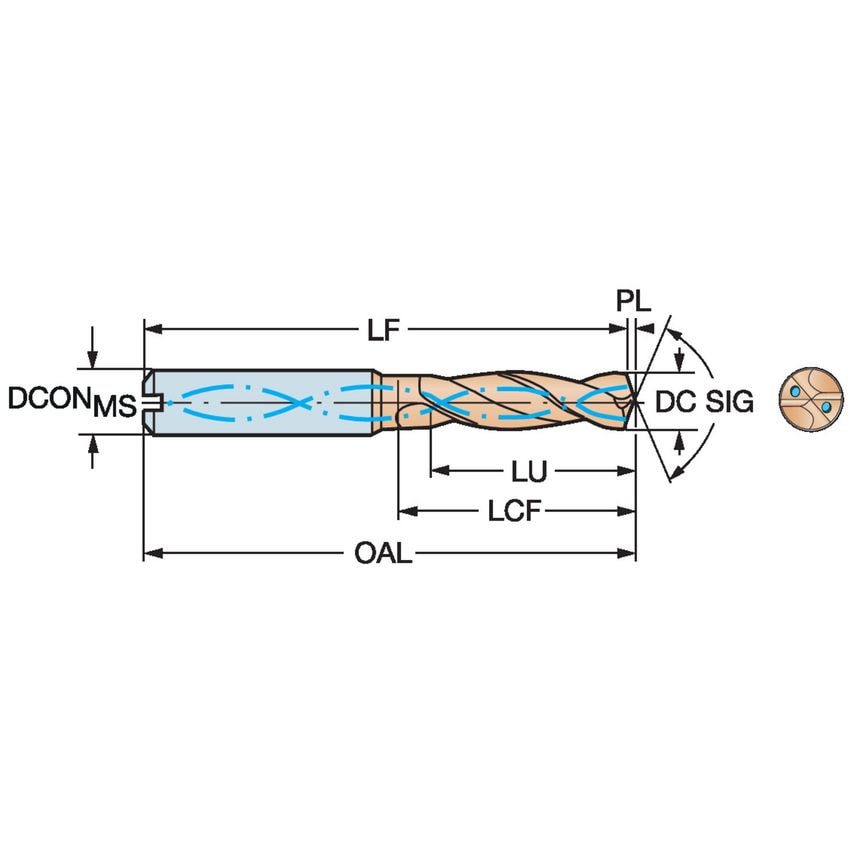

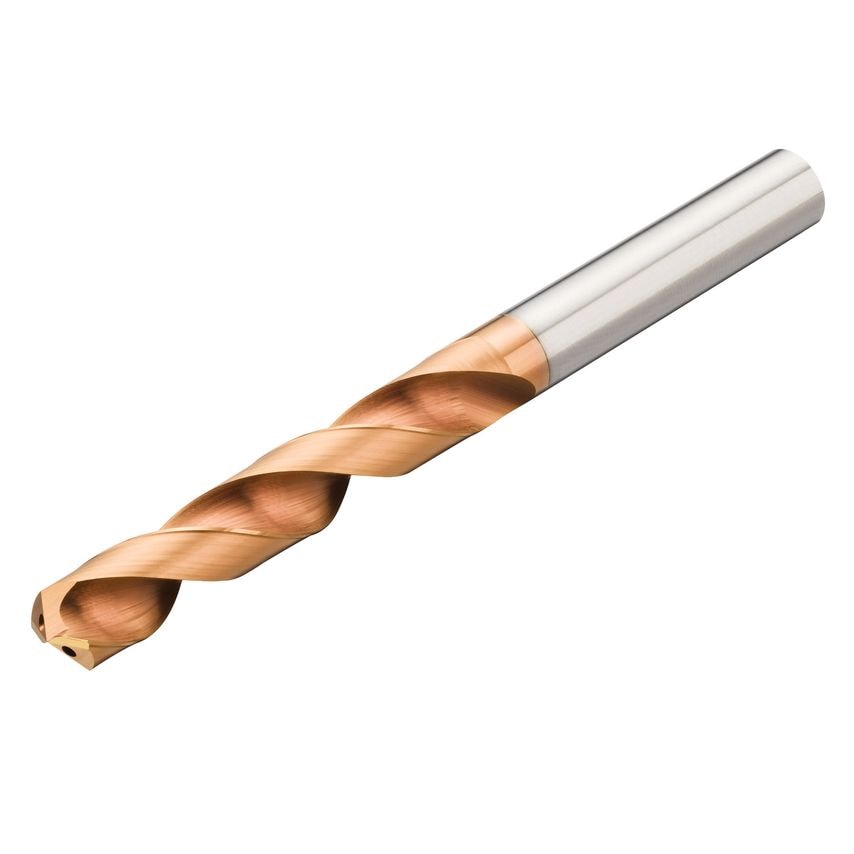

CoroDrill Delta-C solid carbide drill
| Unit Measured | Metric |
| Standards Met | DIN 6537 L |
| Rotational Speed Maximum | 7872 1/min |
| Drill Diameter | 9.3mm |
| Point Angle | 140\u00b0 |
| Functional Length | 101.4mm |
| Achievable Hole Tolerance | H9 |
| Usable Length | 48.1mm |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Connection Diameter | 10mm |
| CoroPak | 2.2 |
| MFR Part No. | 5748349 |
| Overall Length | 103mm |
| Coating Type | TiAlN |
| Coating Process Type | PVD |
| Usable Length Diameter Ratio | 5.17 |
| Material Grade | 1220 |
