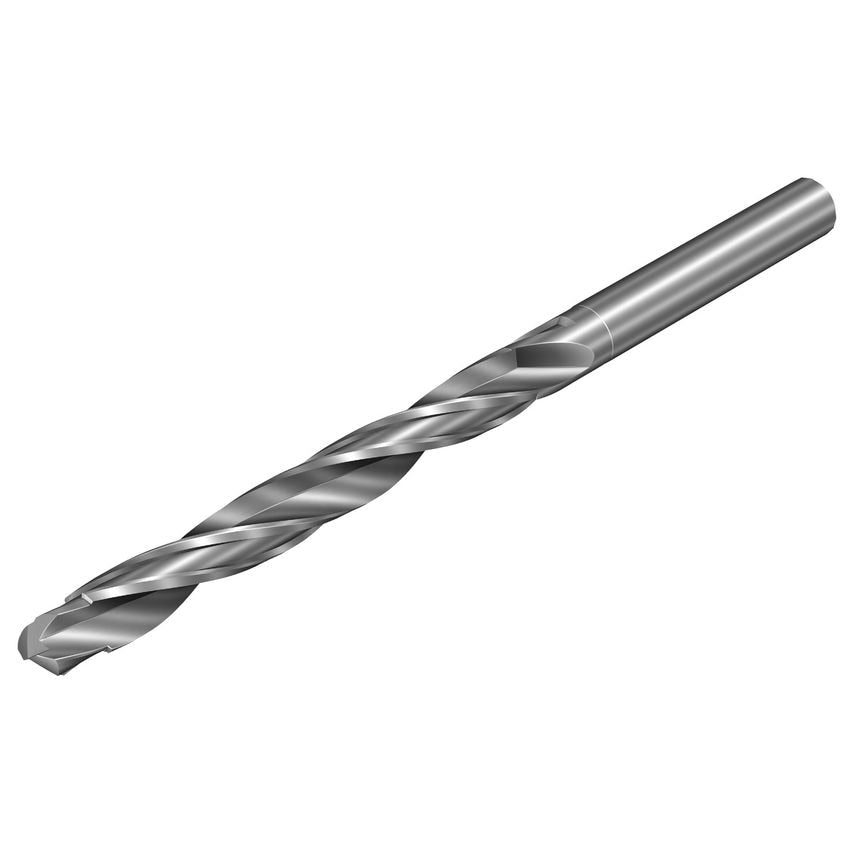

Product Range: CoroDrill 452Tool Type: Solid carbide drillsCoroDrill 452 features tooling solutions optimized for portable hand-held machines and composite materials. The product range consits of solid carbide drills, step drills, reamers and countersinks. Available as standard products with 24-hour delivery, as well as Customized solutions, featuring Tailor made and Advanced Engineered options for specific application demands.- For portable hand-held machines- Close hole tolerances, good surface finish- Tools optimized for CFRP and metallic stack materials
| Rotational Speed Maximum | 50000 1/min |
| Drill Diameter | 5.1mm |
| Connection Diameter | 5.1mm |
| Usable Length | 45mm |
| Point Angle | 135\u00b0 |
| Overall Length | 100mm |
| Coolant Entry Style | Without Coolant |
| Unit Measured | Metric |
| Usable Length Diameter Ratio | 8.82 |
| ISO Cutting Tool Material | Uncoated WC |
| Coating Type | Uncoated |
| CoroPak | 18.1 |
| Material Grade | H10F |
| Achievable Hole Tolerance | K8 |
| Standards Met | COROMANT |
| Coating Process Type | Uncoated |
| MFR Part No. | 7516200 |
| Functional Length | 94.9mm |
