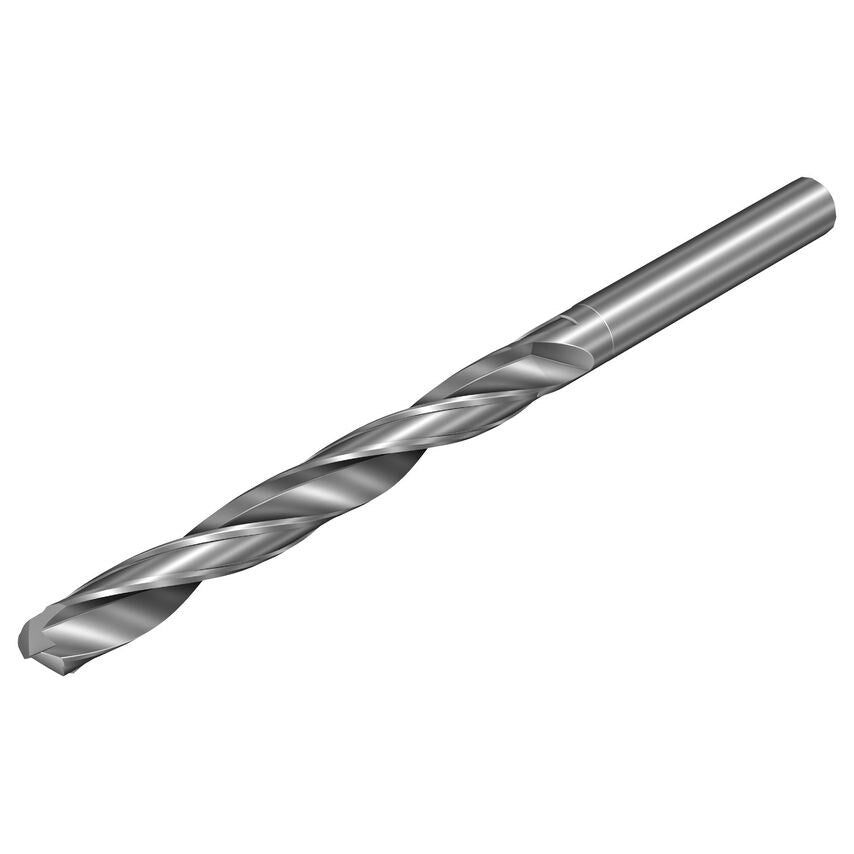

Product Range: CoroDrill 452Tool Type: Solid carbide drillsCoroDrill 452 features tooling solutions optimized for portable hand-held machines and composite materials. The product range consits of solid carbide drills, step drills, reamers and countersinks. Available as standard products with 24-hour delivery, as well as Customized solutions, featuring Tailor made and Advanced Engineered options for specific application demands.- For portable hand-held machines- Close hole tolerances, good surface finish- Tools optimized for CFRP and metallic stack materials
| Drill Diameter | 4.1mm |
| Rotational Speed Maximum | 50000 1/min |
| Usable Length | 45mm |
| Coating Process Type | Uncoated |
| Connection Diameter | 4.1mm |
| Overall Length | 100mm |
| MFR Part No. | 7516196 |
| Unit Measured | Metric |
| Standards Met | COROMANT |
| Material Grade | H10F |
| Functional Length | 99.15mm |
| Usable Length Diameter Ratio | 10.98 |
| Coolant Entry Style | Without Coolant |
| Achievable Hole Tolerance | K8 |
| Coating Type | Uncoated |
| CoroPak | 18.1 |
| Point Angle | 135\u00b0 |
| ISO Cutting Tool Material | Uncoated WC |
