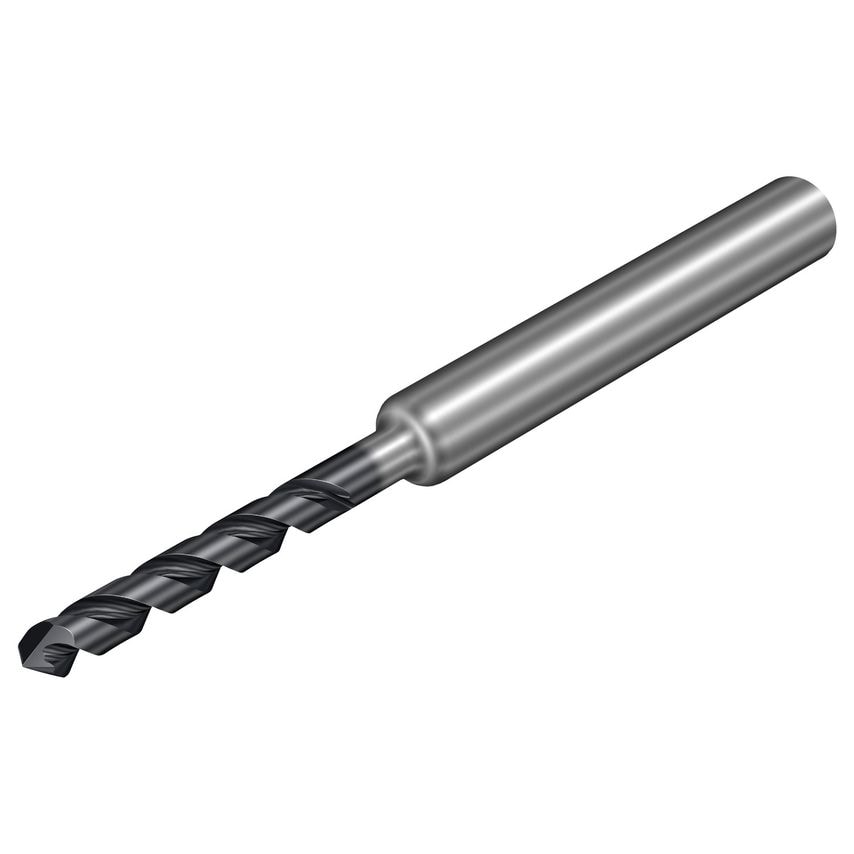

Product Range: CoroDrill 863Tool Type: Solid carbide drillsHigh performance drills for composites including carbon fibre reinforced materials (CFRP) and metal-matrix materials- High performance in CFRP and metallic stack materials- For CNC, ADU and robotic machines- Low-thrust geometries reduce hole delamination and exit burr
| Rotational Speed Maximum | 20000 1/min |
| Coolant Entry Style | Without Coolant |
| Coating Process Type | CVD |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Unit Measured | Metric |
| Standards Met | COROMANT |

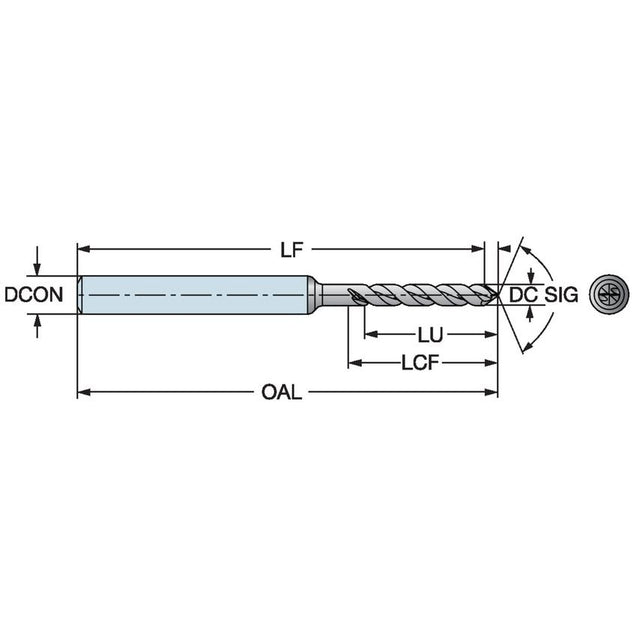

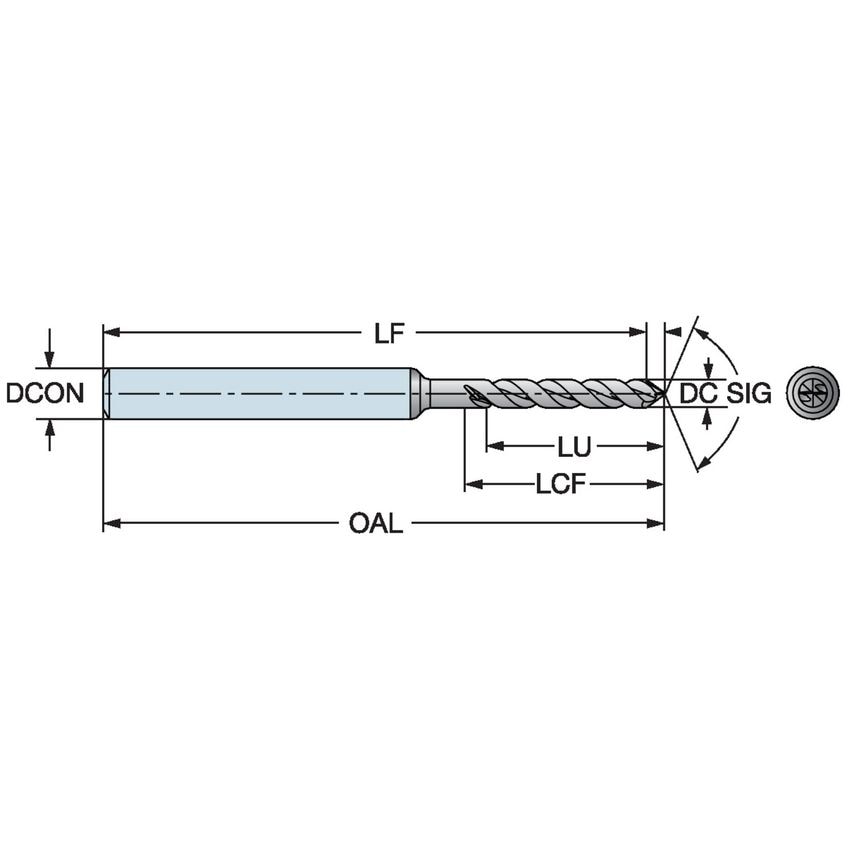

| Usable Length | 17.9mm |
| Drill Diameter | 3.3mm |
| Overall Length | 66mm |
| Functional Length | 64.59mm |
| Achievable Hole Tolerance | H8 |
| Usable Length Diameter Ratio | 5.42 |
| CoroPak | 19.2 |
| Connection Diameter | 6mm |
| Material Grade | O1AD |
| Point Angle | 90\u00b0 |
| Coating Type | Sp3 |
| MFR Part No. | 7830390 |
