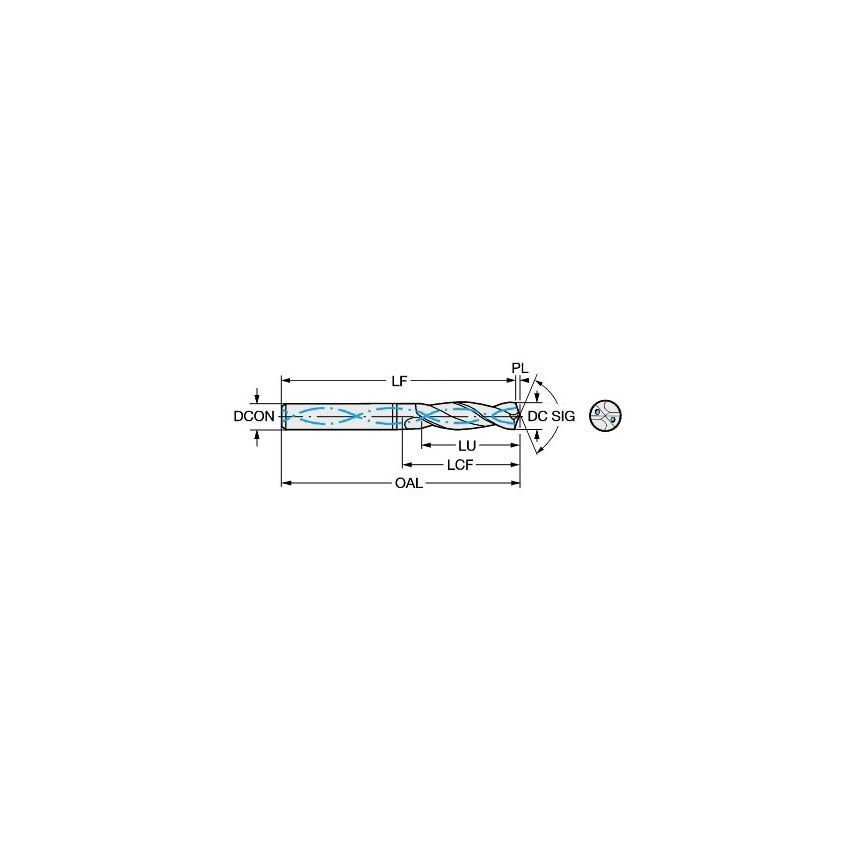

Product Range: CoroDrill 860Tool Type: Solid carbide drillsCoroDrill 860 is a solid carbide drill designed for fast and problem-free drilling, maximizing productivity through high metal cutting efficiency. With excellent chip evacuation in long and short chipping materials, CoroDrill 860 provides green light machining at high penetration rates.- Optimized geometry for fast and problem-free drilling- Optimized for ISO-P, ISO-M, ISO-N and multi-material 860-GM- Optimized flute geometry for efficient chip evacuation- High productivity and consistent tool life- High process security and repeatability
| ISO Cutting Tool Material | Uncoated WC |
| Overall Length | 102mm |
| Functional Length | 100.4mm |
| MFR Part No. | 26253814 |
| Grade | H10F |
| Connection Diameter | 12mm |
| Coating Type | Uncoated |
| Point Angle | 130\u00b0 |
| Usable Length Diameter Ratio | 3.13 |
| Cutting Diameter | 12mm |
| Usable Length | 37.6mm |
| Coating Process Type | Uncoated |
| Weight | 0.14kg |
| CoroPak | 12.2 |
| Rotational Speed Maximum | 12732 1/min |
| Unit Measured | Metric |
| Standards Met | DIN 6537 K |
| Achievable Hole Tolerance | H7 |
