Product Range: CoroDrill 860Tool Type: Solid carbide drillsCoroDrill 860 is a solid carbide drill designed for fast and problem-free drilling, maximizing productivity through high metal cutting efficiency. With excellent chip evacuation in long and short chipping materials, CoroDrill 860 provides green light machining at high penetration rates.- Optimized geometry for fast and problem-free drilling- Optimized for ISO-P, ISO-M, ISO-N and multi-material 860-GM- Optimized flute geometry for efficient chip evacuation- High productivity and consistent tool life- High process security and repeatability

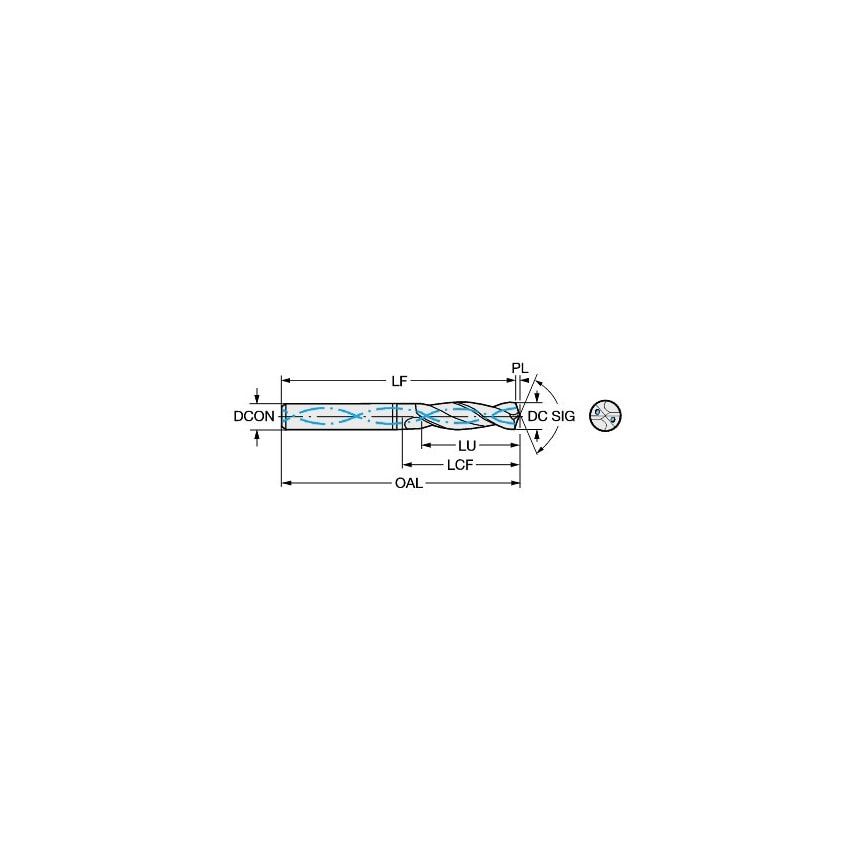

| ISO Cutting Tool Material | Uncoated WC |
| Usable Length | 126.1mm |
| Overall Length | 213mm |
| Standards Met | COROMANT |
| MFR Part No. | 26253727 |
| Achievable Hole Tolerance | H7 |
| Rotational Speed Maximum | 9857 1/min |
| Unit Measured | Metric |
| Usable Length Diameter Ratio | 8.14 |
| Functional Length | 210.9mm |
| Connection Diameter | 16mm |
| CoroPak | 12.2 |
| Cutting Diameter | 15.5mm |
| Weight | 0.41kg |
| Grade | H10F |
| Coating Process Type | Uncoated |
| Point Angle | 130\u00b0 |
| Coating Type | Uncoated |
