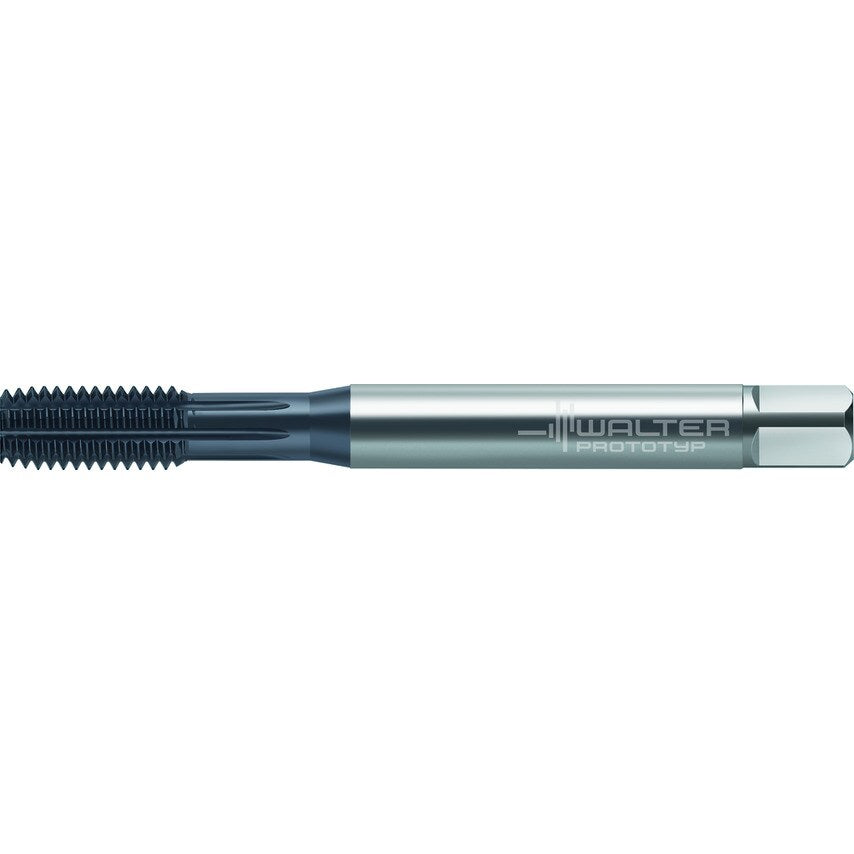

HSS-E-PM machine thread formers Supreme C = 2-3xTP (semi-bottom chamfer) 3,5xD M/6HX DIN 2174 Suitable for blind hole WW60EL Suitable for through hole M 6 P=0.0394in
| Usable Length | 30mm |
| Thread Size | M 6 |
| Thread Pitch | 1mm |
| Driving Square Length | 8mm |
| Connection Diameter | 6mm |
| Cutting Edge Length | 10mm |
| MFR Part No. | 7427793 |
| Number of Grooves | 5 |
| Functional Length | 80mm |
| Tool Designation | TC430-M6-C6-WW60EL |
| Clamping Width | 4.9mm |
