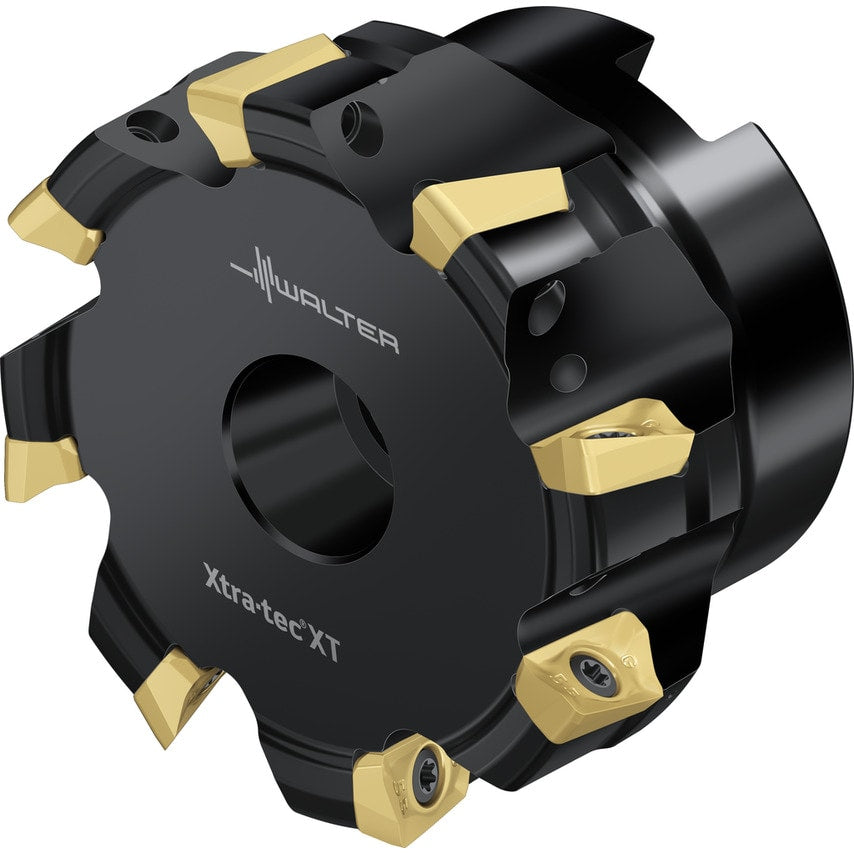

Shoulder milling cutters Parallel bore DIN 138 transverse keyway =90 metric BC .. 1204 .. Dc=3.1496in Z=5
| Cutting Edge Diameter | 80mm |
| Tool Designation | M5130-080-B27-05-12 |
| Connection Diameter | 27mm |
| Number of Inserts | 5 |
| Maximum Projection Length | 50mm |
| Maximum Admissible Speed | 14800 |
| Cutting Edge Length | 12mm |
| Number of Teeth | 5 |
| Maximum Ramping Angle | 1.2\u00b0 |
| MFR Part No. | 7539439 |
