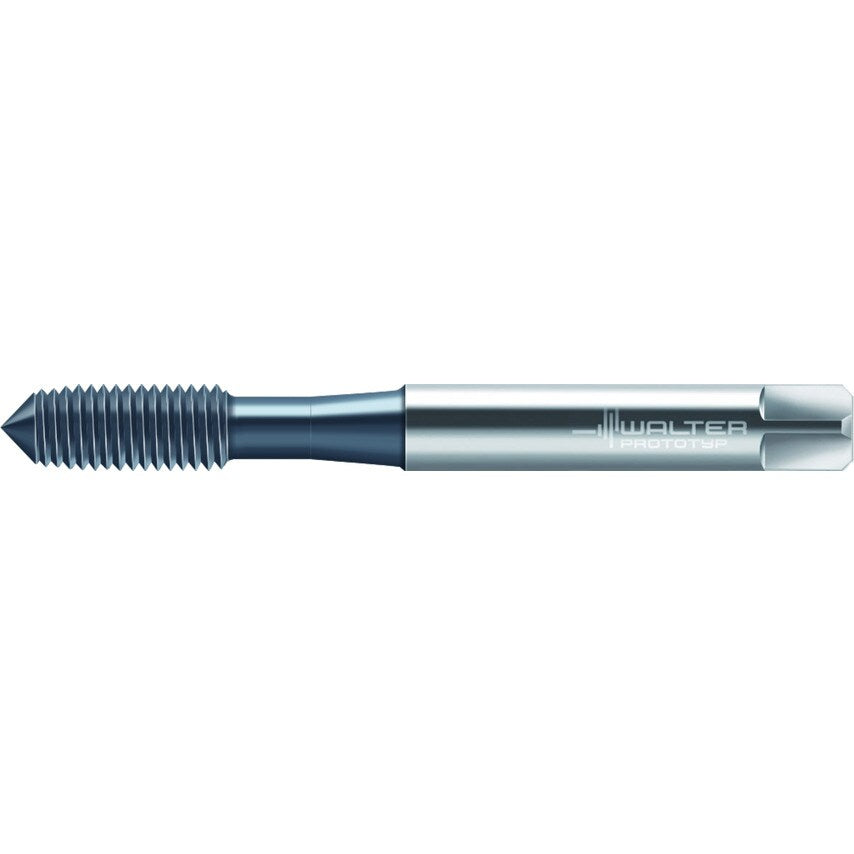

HSS-E-PM machine thread formers Supreme C = 2-3xTP (semi-bottom chamfer) 3xD M/6HX DIN 2174 Suitable for blind hole WW60BA Suitable for through hole M 6 P=0.0394in
| Driving Square Length | 8mm |
| Tool Designation | TC420-M6-C0-WW60BA |
| Connection Diameter | 6mm |
| Thread Pitch | 1mm |
| Usable Length | 30mm |
| Clamping Width | 4.9mm |
| Number of Grooves | 5 |
| Functional Length | 80mm |
| Thread Size | M 6 |
| Cutting Edge Length | 10mm |
| MFR Part No. | 7427282 |
