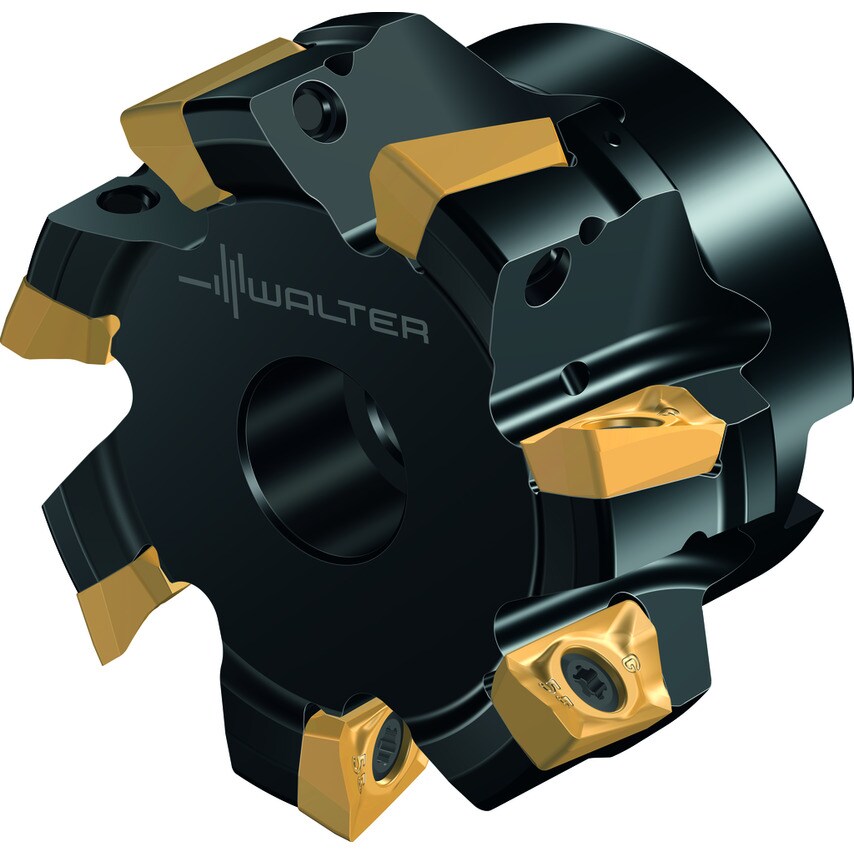

Shoulder milling cutters Parallel bore DIN 138 transverse keyway =90 metric BC .. 1605 .. Dc=3.937in Z=8
| Number of Inserts | 8 |
| Maximum Projection Length | 50mm |
| MFR Part No. | 7539499 |
| Cutting Edge Diameter | 100mm |
| Connection Diameter | 32mm |
| Tool Designation | M5130-100-B32-08-15 |
| Maximum Ramping Angle | 1.3\u00b0 |
| Cutting Edge Length | 15mm |
| Number of Teeth | 8 |
| Maximum Admissible Speed | 10300 |
