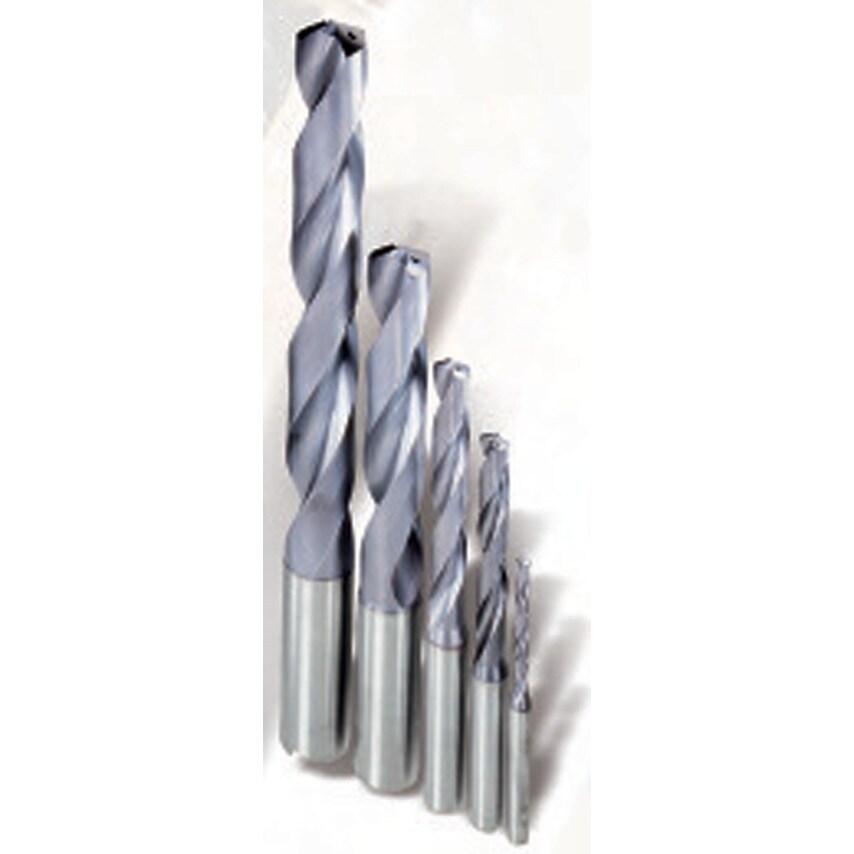

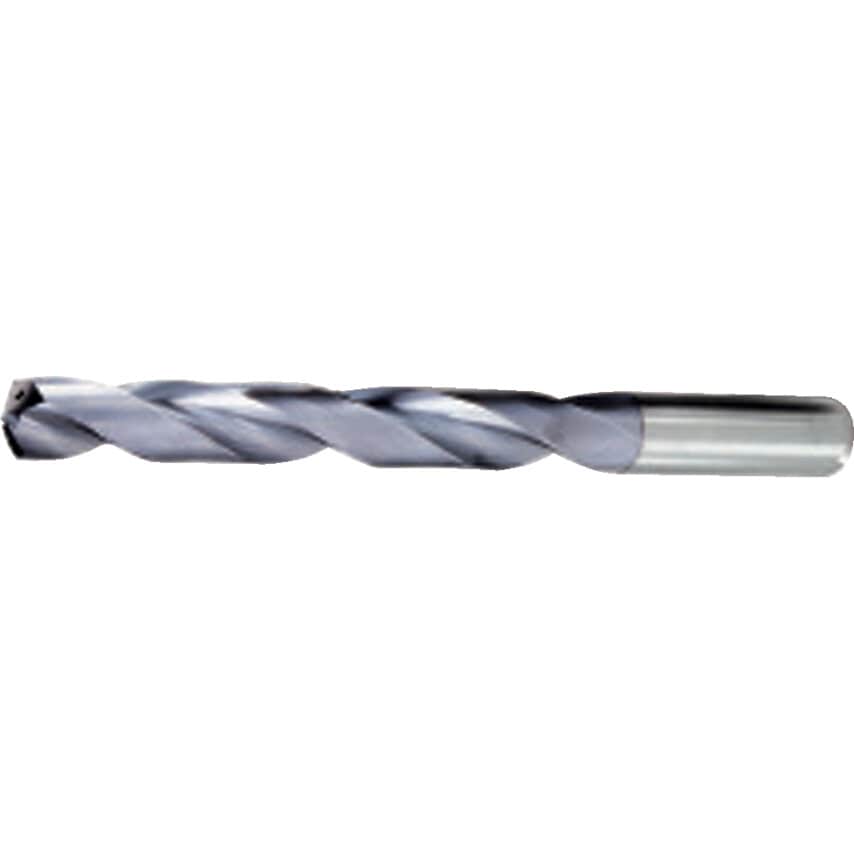

Kennametal B976 carbide drills have excellent centring capabilities, four margin land design that improves hole straightness and roundness to provide good alignment even when drilling through cross holes.
Other Features and Benefits include:

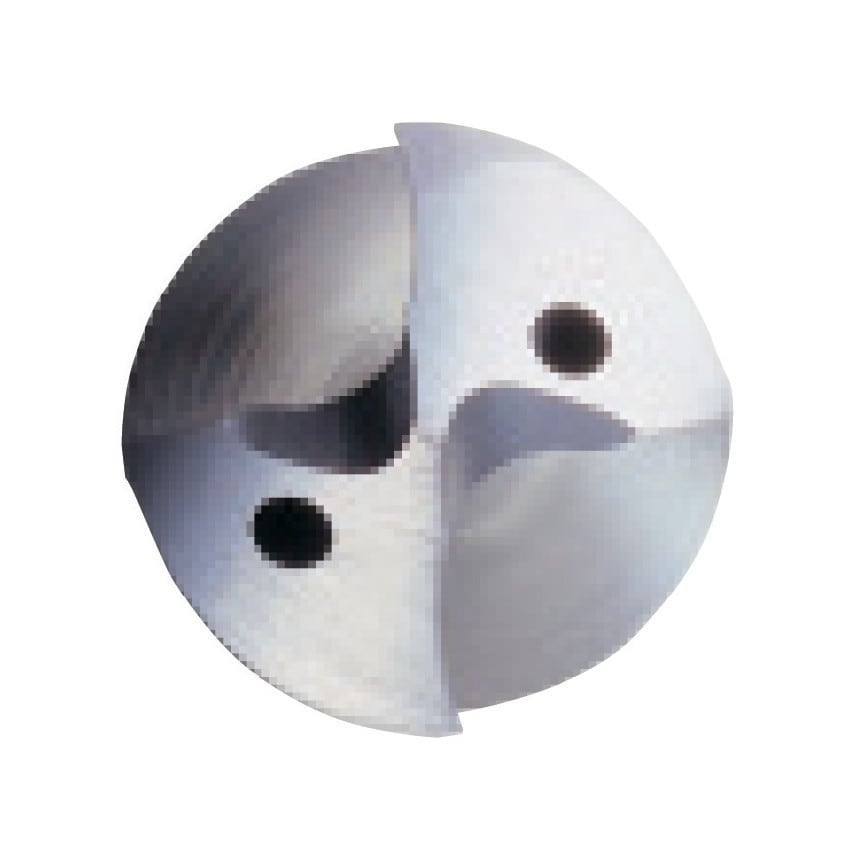

Kenna Universal Drill Point Design
Low thrust.
Through coolant holes.
KC7315 Grade
A multilayer, TiAlN-based coating with high hot hardness enables 30% higher cutting speeds and constant tool life. Optimised tool surface finish ensures chip evacuation when drilling deep holes.
Customisation
Intermediate diameters available as semi-standards.
Length variations and step drills available as custom solutions.

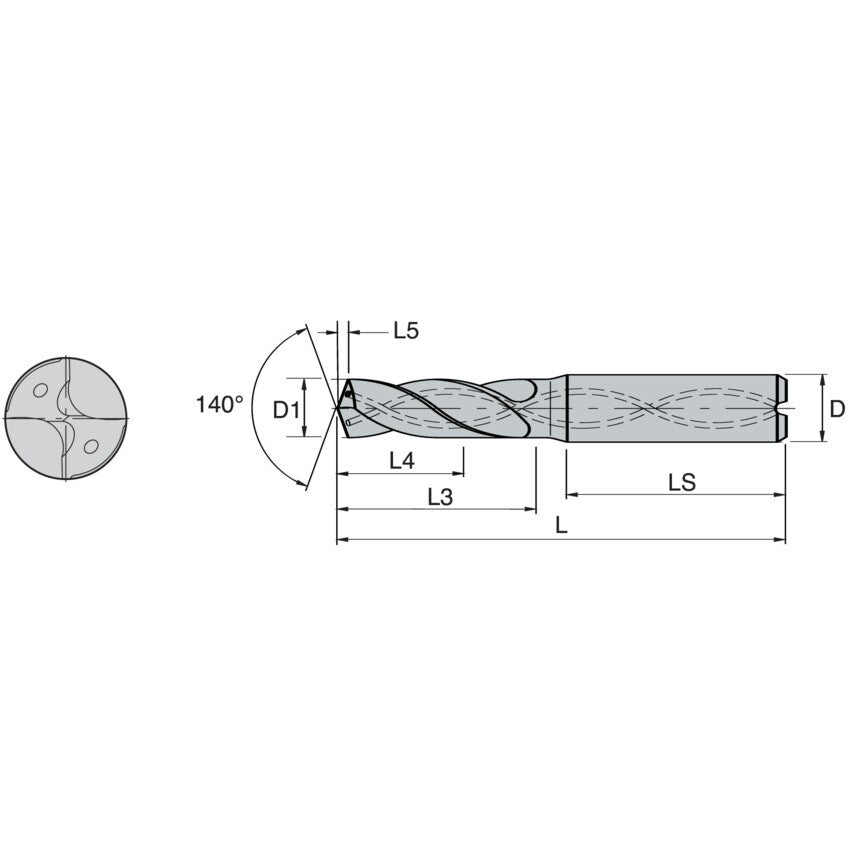

| Carbide Drill Type | Carbide High Performance |
| Overall Length | 102mm |
| Number of Flutes | 2 |
| Cutting Direction | Right Hand |
| Series | B976A |
| Helix Angle | 30\u00b0 |
| MFR Part No. | 1913542 |
| Material Grade | KC7315 |
| Drill Diameter | 11mm |
| Helix Type | Normal Helix |
| Drill Diameter Metric | 11.0000mm |
| ISO Category | K | M | N | P | S |
| Product Type | Carbide Drill |
| Drill Diameter Tolerance | M7 |
| Flute Type | Spiral |
| Flute Length | 55mm |
| Diameter x Depth | 5xD |
| Point Angle | 140\u00b0 |
| Material | Carbide |
| Standards Met | DIN 6535 |
| ISO Category Grade | K |
| Coolant Delivery | Coolant Through |
| Shank Diameter | 12mm |
| Finish/Coating | TiAlN |
| Shank Diameter Tolerance | H6 |
