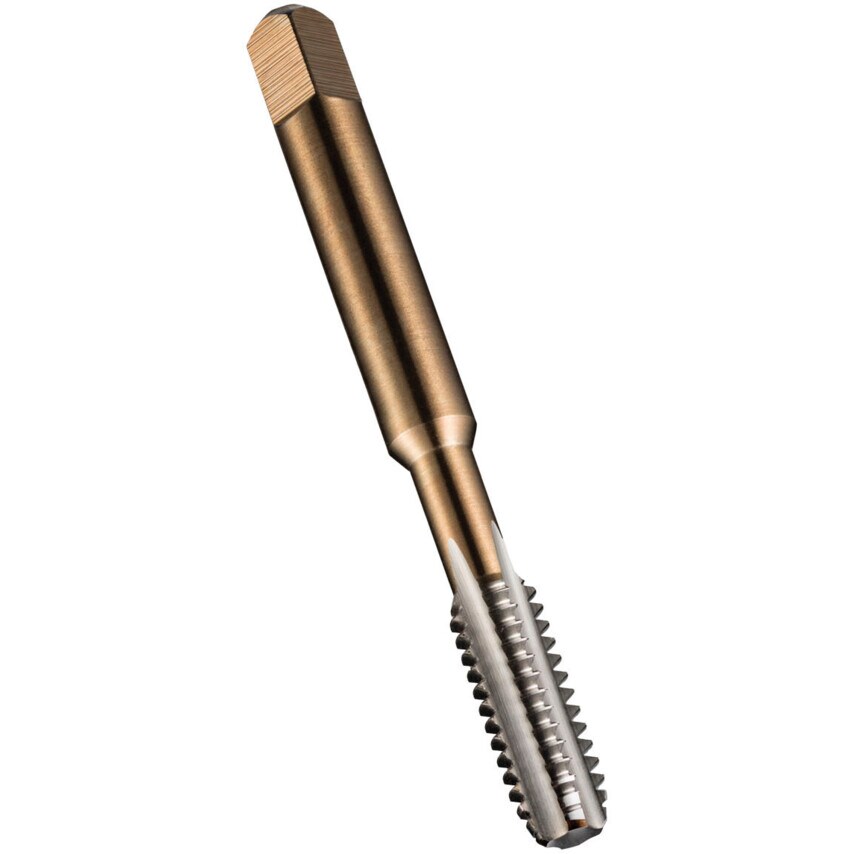

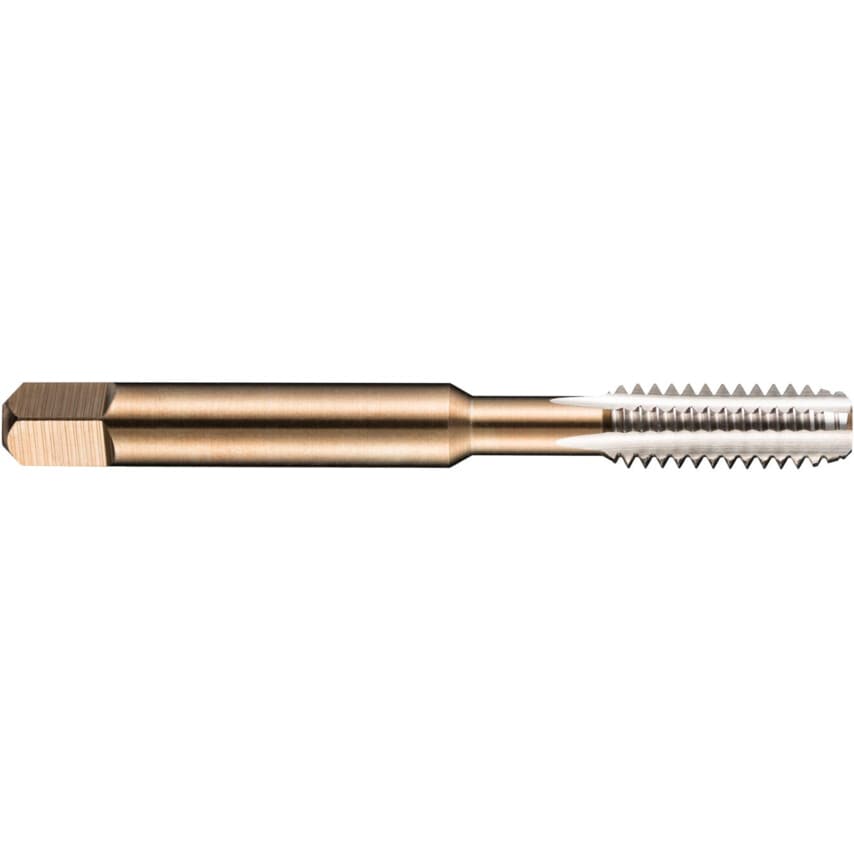

Series E531 HSS Straight Flute Taper Tap - BSW
HSS, bright finish straight flute. Right hand cut.
Tolerance medium. 1.5xD.
Manufactured to ISO529.
| Tap Type | Straight Flute |
| Series | E531 |
| Number of Flutes | 4 |
| Square Width | 11.2mm |
| Material | HSS |
| Shank Diameter | 14mm |
| Class of Fit | 2B |
| Teeth per Inch | 10 |
| Material Grade | M2 |
| Pitch | 10 |
| Thread Size | 3/4 |
| ISO Category | K | N | P |
| Chamfer | Taper |
| Helix Angle | Medium |
| Finish/Coating | Bright |
| Thread Standard | BSW |
| Dimensions Standard | ISO 529 |
| Thread Direction | Right Hand |
| Overall Length | 112mm |
| Thread Length | 29mm |
| MFR Part No. | E5313/4NO1 |
