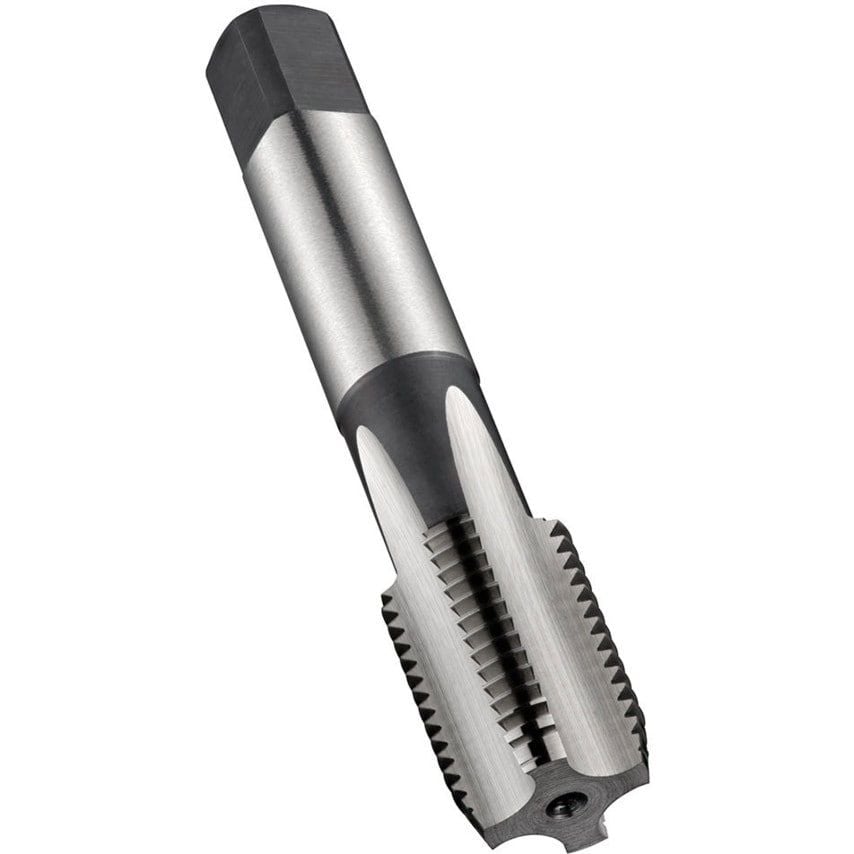

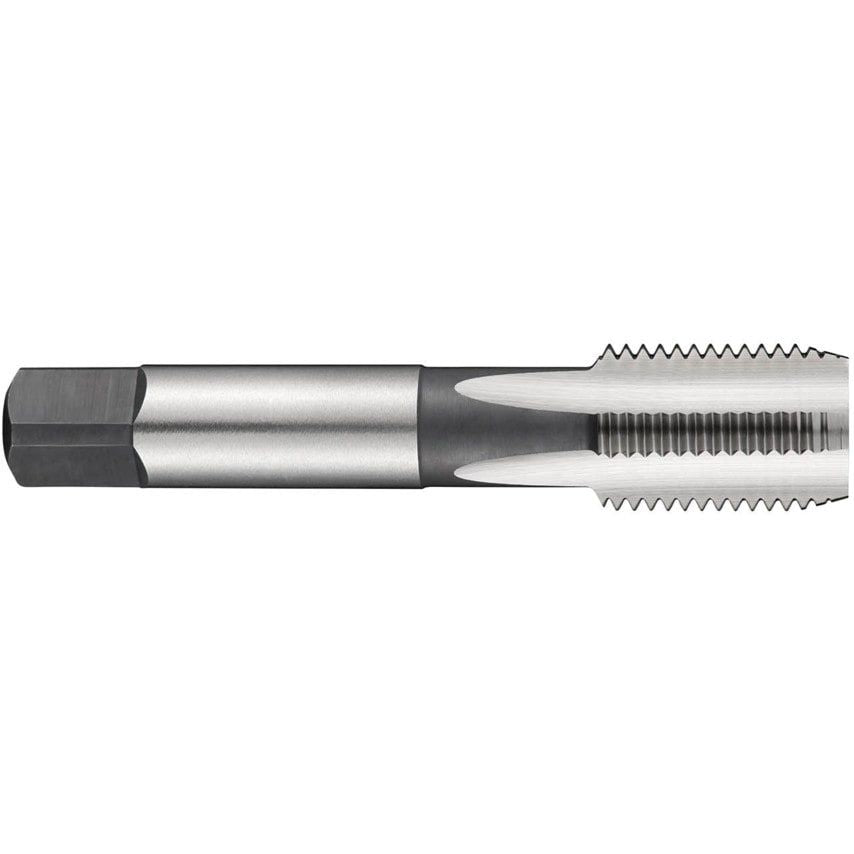

Set of straight flute hand taps NO7 for British Standard Pipe Taper thread Rc 3/8" with 19 TPI and Normal class of fit
| ISO Category | K | M | N | P |
| Model Number | E550 |
| Cutting Direction | Right |
| Series | E550 |
| Flute Geometry (FDC) | Straight Flute Geometry |
| Thread Size | 3/8in |
| Tap Application | Through or Blind Hole |
| Tap Type | Straight Flute |
| Thread Standard | BSPT |
| Threading Tap Type | Hand Tap |
| Material | HSS |
| Thread Length | 21mm |
| Unit of Measurement | Imperial |
| Tap Chamfer Style | B 4 - 6 / C 2 - 3 |
| Finish/Coating | Bright |
| Shank Diameter | 12.5 |
| Standards | ISO 2284 |
| Finish | Bright |
| Chamfer | Plug | Second |
| MFR Part No. | E5503/8NO7 |
| Square Width | 10mm |
| Number of Flutes | 3 |
| Shank | Cylindrical Shank with Square |
| Number of Pieces | 2 |
| Overall Length | 75mm |
