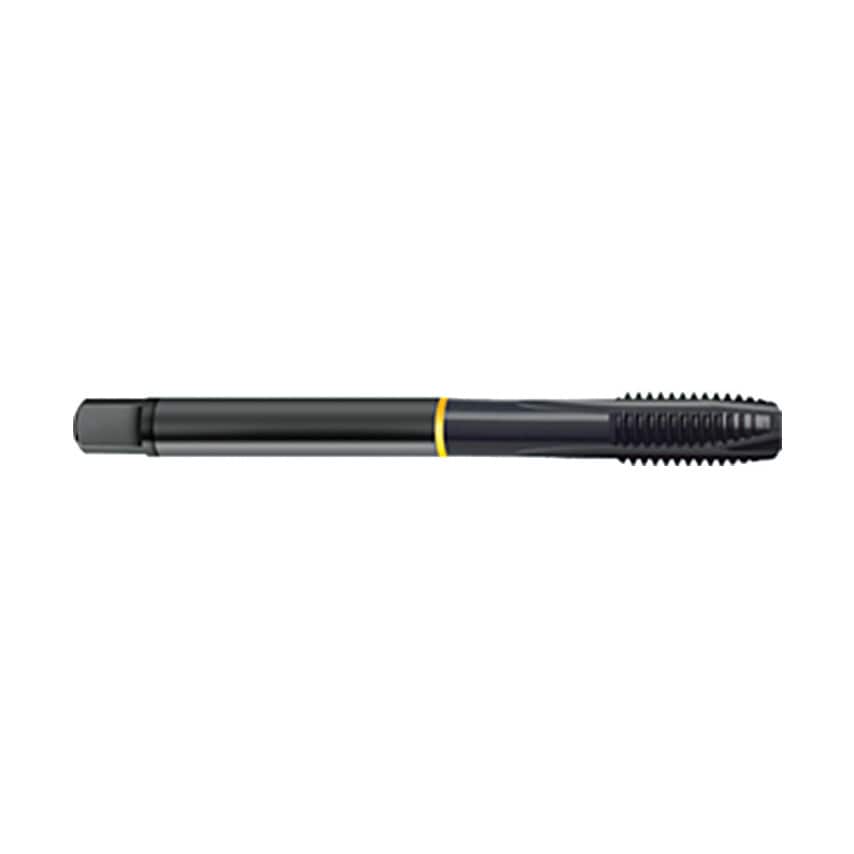

Series 5717 HSS-E Straight Shank Spiral Flute Taps
'GoldRing' PowerTaps are the universal tap for general purpose steels, tool steels, alloyed steels, stainless steels and aluminium.
Metric
Steam Tempered
To DIN 376 / DIN 2184-1
Right Hand
For Blind Holes

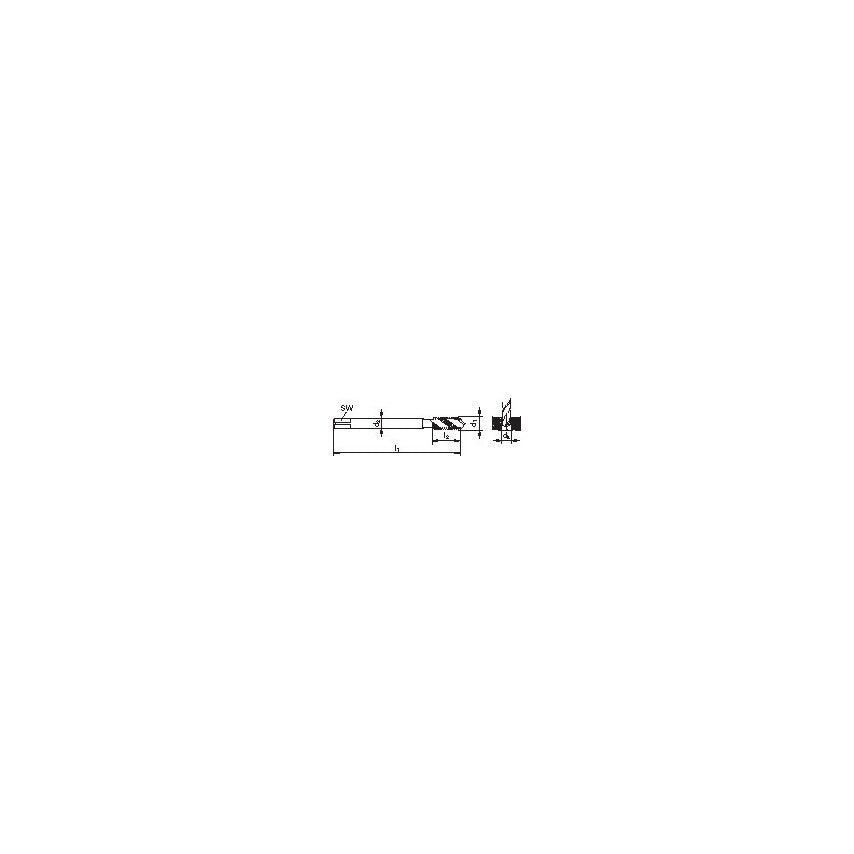

| Helix Angle | 40\u00b0 |
| Finish/Coating | Steam Tempered |
| Overall Length | 140mm |
| Thread Size | M20 |
| Tapping Depth | 62.0mm |
| Dimensions Standard | DIN 376 |
| Thread Direction | Right Hand |
| Thread Standard | Metric Coarse |
| Material Application | Alloyed Steels | Aluminium | Stainless Steels | Steels |
| Coolant Delivery | External |
| Pitch | 2.50 |
| Thread Length | 25.00mm |
| MFR Part No. | 05717 020.000 |
| Material | Cobalt High Speed Steel |
| Shank Diameter | 16.0mm |
| Series | 5717 |
| Material Grade | M35 |
| Square Width | 12.0mm |
| Class of Fit | 6H |
| Tap Type | Spiral Flute |
