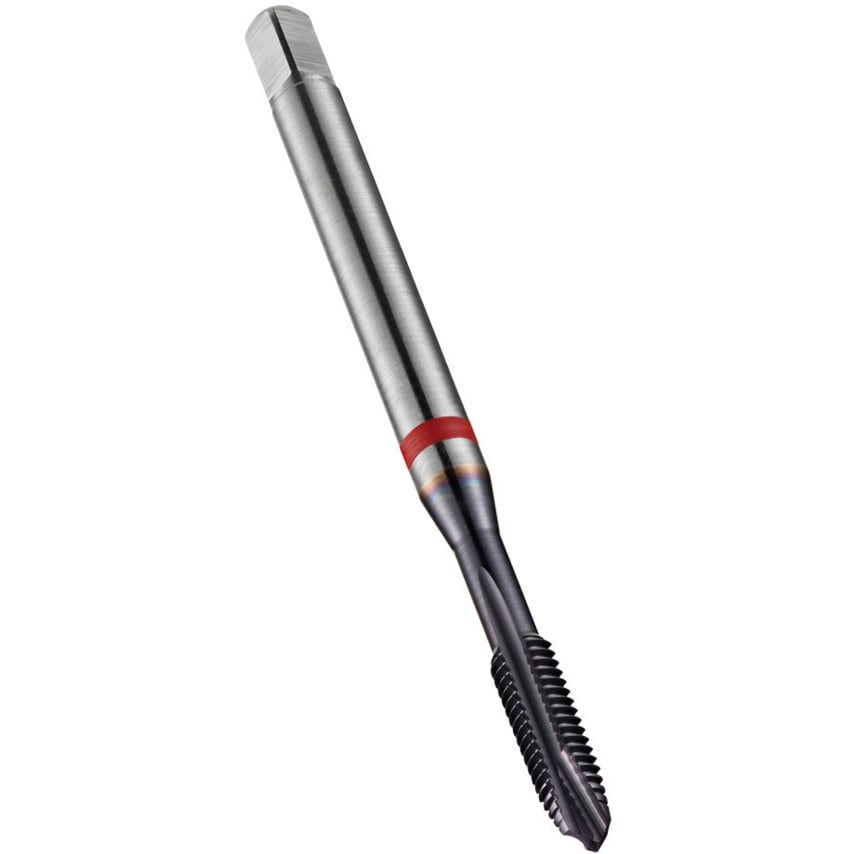

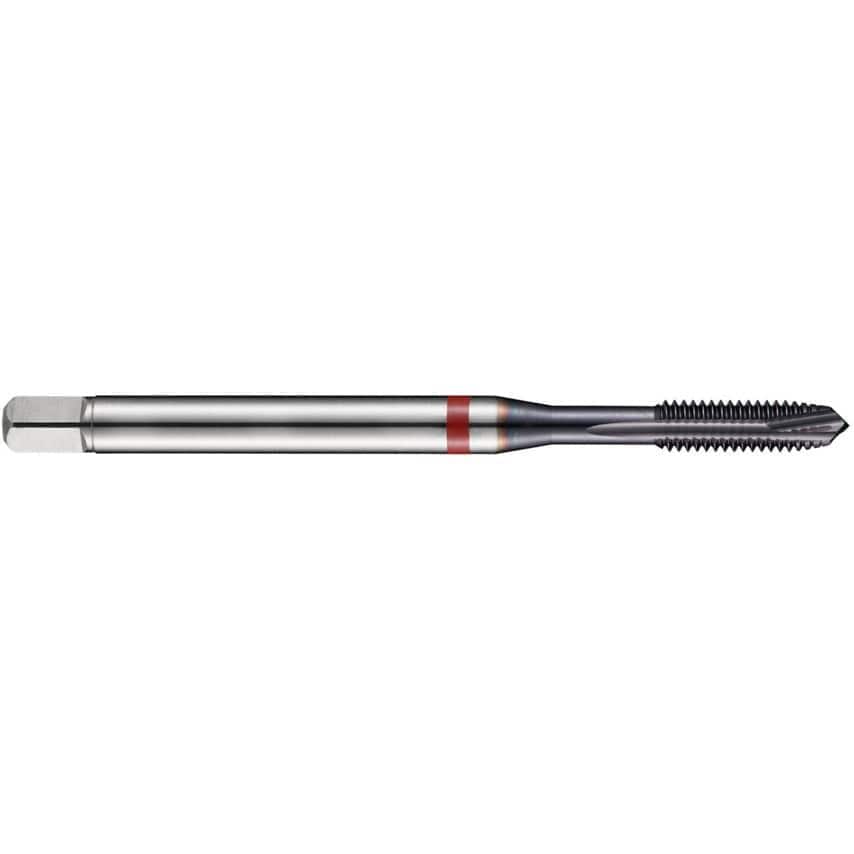

Dormer's application-based range of colour ring coded DIN taps, branded Shark Line, are renowned for their high performance and are an ideal solution when high quality threads are required in specific materials. Extensive research hasled to the development of new features on specific lines, including new coatings and geometries.Red Shark for Alloy SteelsExcellent for Application Good for ApplicationE256 - TiALN
| Standards | DIN 371 |
| Applications | P - Steel and cast steel |
| Thread Form | M - Metric coarse |
| Flute Geometry (FDC) | Spiral\u00a0Point Geometry |
| Shank | Cylindrical Shank with Square |
| Material | HSS-E-PM |
| Finish/Coating | TiAlN |
| Material Grade | M35 |
| Tap Chamfer Style | B 3.5 - 5 |
| MFR Part No. | E256M3 |
| Tap Type | Spiral Point |
| Series | E256 |
| Cutting Direction | Right |
| Thread Standard | Metric Coarse |
| Pitch | 0.5mm |
| Shank Diameter | 3.5mm |
| Square Width | 2.7mm |
| Product Type | Machine Taps |
| Number of Flutes | 3 |
| Unit of Measurement | Metric |
| Thread Direction | Right Hnd |
| Thread Length | 9mm |
| Class of Fit | 6H |
| Tap Application | Through Hole |
| Overall Length | 56mm |
| Lead | Second |
| Finish | TiAlN/Top |
| Tapping Depth | 18mm |
| Application | Steel and Cast Steel |
| Product Series | E256 |
| Thread Size | M3 |
| Dimensions Standard | DIN 371 |
