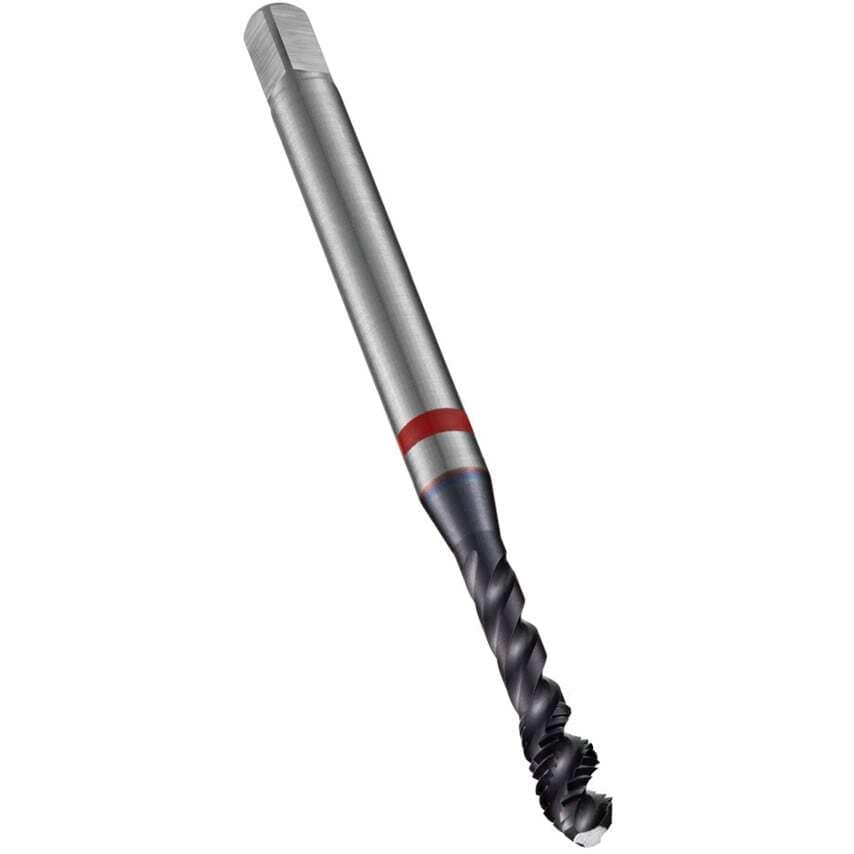

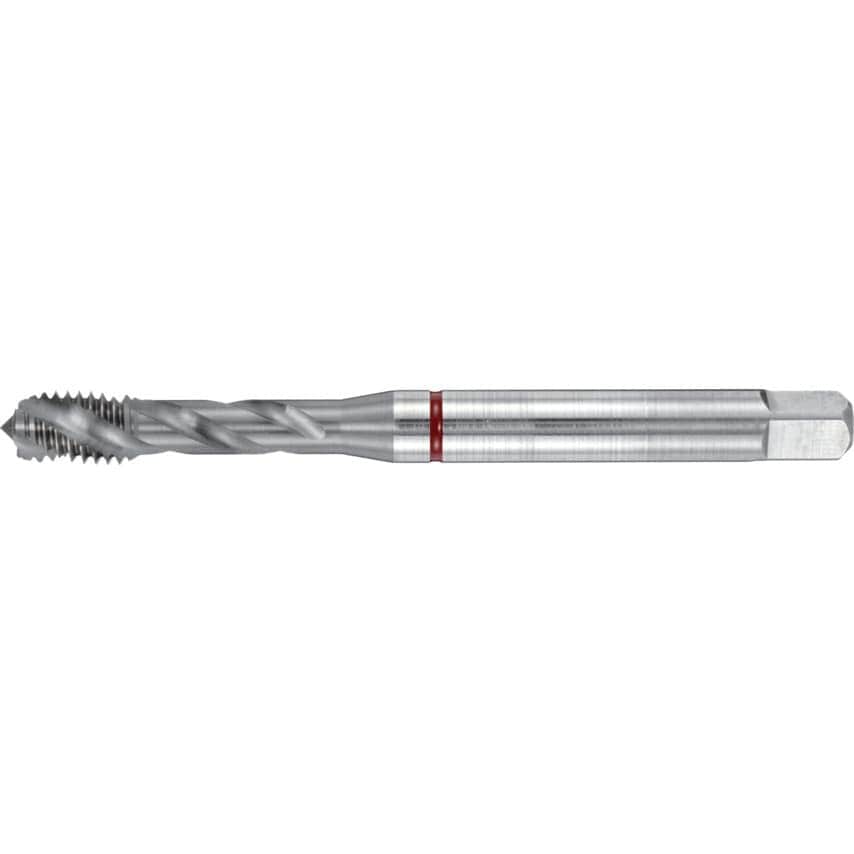

Dormer's application-based range of colour ring coded DIN taps, branded Shark Line, are renowned for their high performance and are an ideal solution when high quality threads are required in specific materials. Extensive research hasled to the development of new features on specific lines, including new coatings and geometries.Red Shark for Alloy SteelsExcellent for Application Good for ApplicationE261 - TiALN
| Thread Length | 23mm |
| Material | HSS-E-PM |
| Shank Diameter | 9mm |
| Product Series | E261 |
| Applications | P - Steel and cast steel |
| Number of Flutes | 3 |
| Lead | C 2-3 |
| Finish/Coating | TiAlN |
| Product Type | Machine Taps |
| Series | E261 |
| Cutting Direction | Right |
| Overall Length | 110mm |
| Tap Type | Spiral Flute |
| Material Grade | M35 |
| Unit of Measurement | Metric |
| Application | Steel and Cast Steel |
| Pitch | 1.8mm |
| Standards | DIN 376 |
| Square Width | 7mm |
| Shank | Cylindrical Shank with Square |
| Flute Geometry (FDC) | Spiral Flute Geometry |
| Thread Standard | Metric Coarse |
| Class of Fit | 6H |
| Thread Direction | Right Hnd |
| Tap Chamfer Style | C 2 - 3 |
| Finish | TiAlN/Top |
| MFR Part No. | E261M12 |
| Thread Form | M - Metric coarse |
| Tap Application | Blind Hole |
| Dimensions Standard | DIN 376 |
| Helix Angle | 45\u00b0 |
| Thread Size | M12 |
