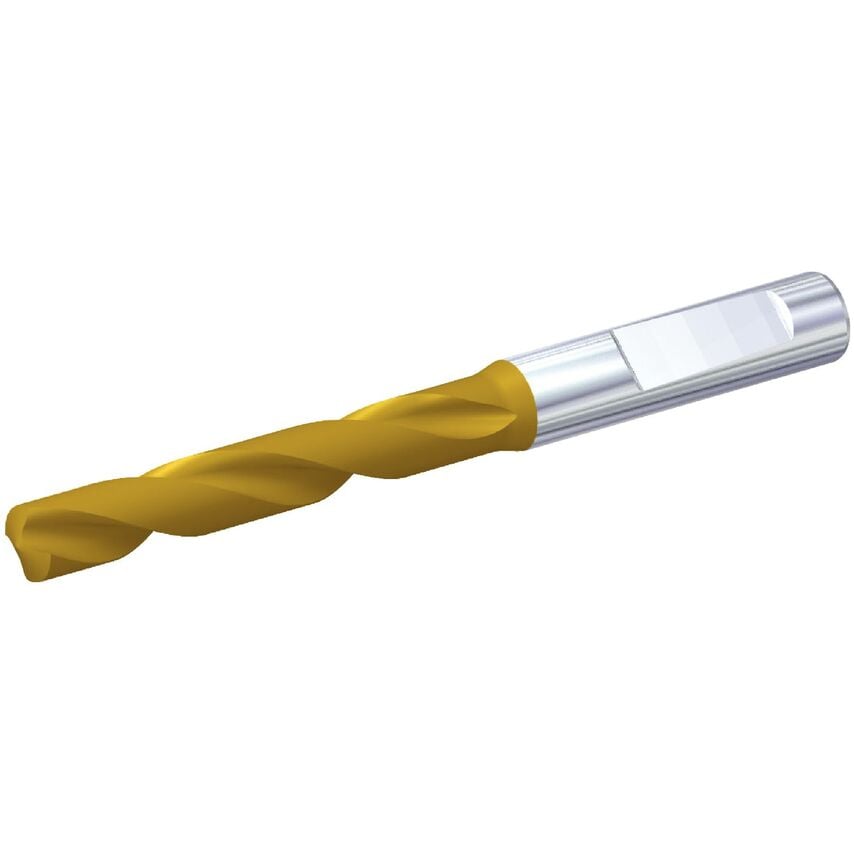

GOdrill Wide Range of MaterialsSolid Carbide Drills
| MFR Part No. | 4150563 |
| Unit Measured | Metric |
| Material | Carbide |
| Shank Length | 36.0000mm |
| Clamping Length | 36mm |
| Drill Diameter | 6.8000mm |
| Finish/Coating | TiN |
| Drill Depth | 24mm | 24.0000mm |
| Adapter / Shank / Bore Diameter | 8.0000mm |
| Functional Length | 77.8600mm |
| Drill Diameter Tolerance | -0.015000 to 0.000000mm |
| Drill Point | 1.14mm |
| Primary Material | Steel |
| Adapter Type | Cylindrical |
| Helix Type | Right Hand Helix/Flute |
| Hand Preference | Right |
| Overall Length | 79mm | 79.0000mm |
| Flute Length | 34mm | 34.0000mm |
| Flute Construction | Helical Flute |
| Adapter Style | Whistle Notch 2 CylindricalEnd |
| Helix Angle | 28.105 |
| Assembly Length | 41.86mm |
| Coolant Supplied | No |
| Number of Flutes | 2 |
