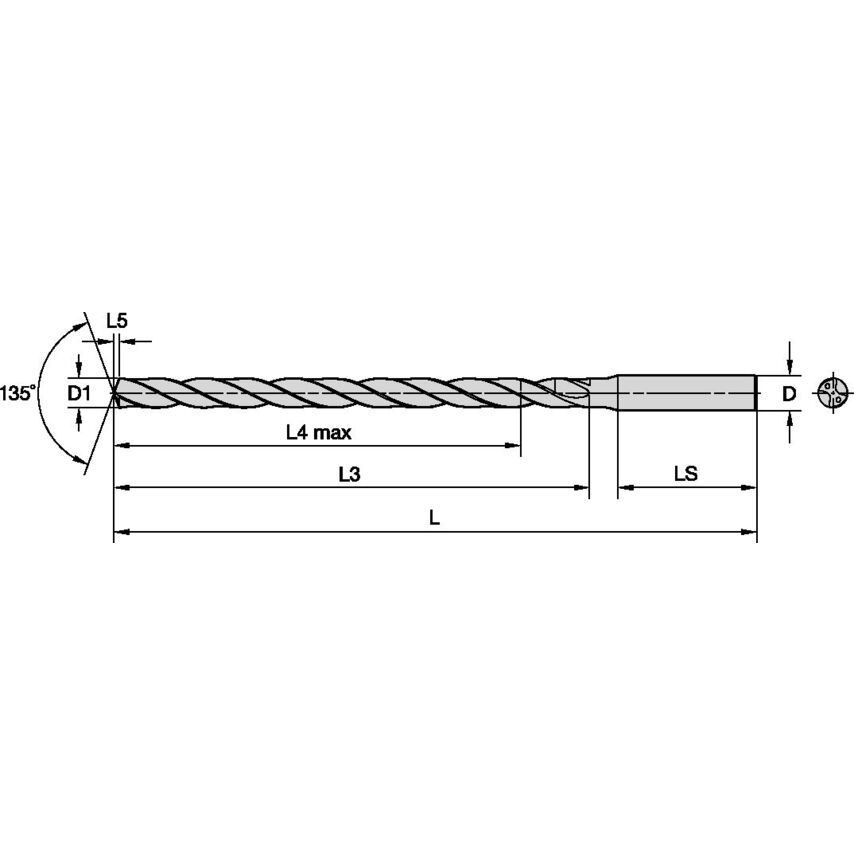

HP Beyond Four-Margin, Long-Length Drills Through Coolant 12 x D
High-Performance Solid Carbide Drills
| Assembly Length | 70.144mm |
| Adapter Style | Straight-Cylindrical |
| MFR Part No. | 5492520 |
| Drill Diameter Tolerance | 0.004000 to 0.016000mm |
| Coolant Diameter | 0.7000mm (0.0945in) |
| Coolant Supplied | Yes |
| Primary Material | Steel |
| Drill Depth | 57mm | 57.0000mm |
| Unit Measured | Metric |
| Functional Length | 106.1440mm |
| Overall Length | 107mm | 107.0000mm |
| Hand Preference | Right |
| Shank Length | 36.0000mm |
| Material | Carbide |
| Adapter Type | Cylindrical |
| Adapter / Shank / Bore Diameter | 6.0000mm |
| Finish/Coating | TiAlN |
| Helix Type | Right Hand Helix/Flute |
| Flute Construction | Helical Flute |
| Drill Point | 0.856mm |
| Number of Flutes | 2 |
| Helix Angle | 32.428 |
| Flute Length | 68mm | 68.0000mm |
| Drill Diameter | 4.5500mm |
